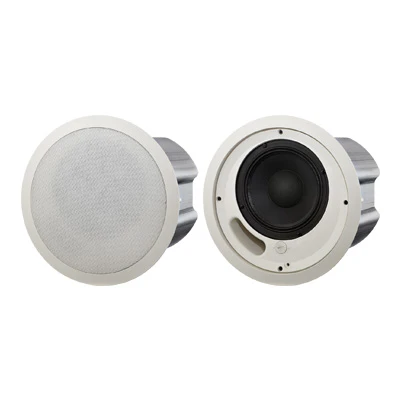

BOSCH LC20 PC60G6-8 Ceiling loudspeaker, 60W, 8
1,733.00
Ceiling loudspeaker – 60W Product Features High output true compression driver for wide dispersion and superior coverage control out to…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Specification
Overview
Processor
Display
RAM
Storage
Video Card
Connectivity
Features
Battery
General
Description
Ceiling loudspeaker – 60W
Product Features
- High output true compression driver for wide dispersion and superior coverage control out to 10 kHz
- Long throw 8-inch (200 mm) woofer housed in a large vented 14 gauge steel enclosure for extended LF performance down to 40 Hz
- 200 watt power handling provides for 114 dB maximum SPL
- Front baffle transformer tap adjustment switch
- Includes tile rails and “C” mounting ring
Technical Specification
| Frequency Range (-10 dB) | 40 Hz – 20 kHz |
| Coverage (Conical) | 120° |
| HF Power Handling | 200 W Program, 100 W Pink Noise |
| Sensitivity (SPL 1 W/1 m) | 88 dB |
| Max Calculated SPL | 108 dB Avg, 114 dB Peak |
| Impedance | 10 ohms |
| LF Transducer | 200 mm (8 in) |
| HF Transducer | 35 mm Compression Driver |
| Transformer Taps | 70V: 60W, 30W, 15W, 7.5W, 8 ohm 100V: 60W, 30W, 15W, 8 ohm |
| Connectors | Removable locking 4-Pin (Phoenix) 2.5 mm (12 AWG) max wire size |
| Enclosure | ABS Plastic (UL94V-0) Baffle, steel back can |
| Grille | Color matched steel grille with fabric |
| Dimensions (H x Dia) | 324 mm x 327 mm (12.76 in x 12.87 in) |
| Cutout Size | 294.3 mm (11.59 in) |
| Net Weight | 8.0 kg (17.6 lb) |
| Shipping Weight | 20.23 kg (44.6 lb) |
