BOSCH PLE-2CS Plena Two-zone Call Station
Original price was: 918.00. 868.00Current price is: 868.00.
Plena Two Zone Call Station Product Features Modern two-zone call station for the PLE series Selectable gain Speech filter and…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Specification
Overview
Processor
Display
RAM
Storage
Video Card
Connectivity
Features
Battery
General
Description

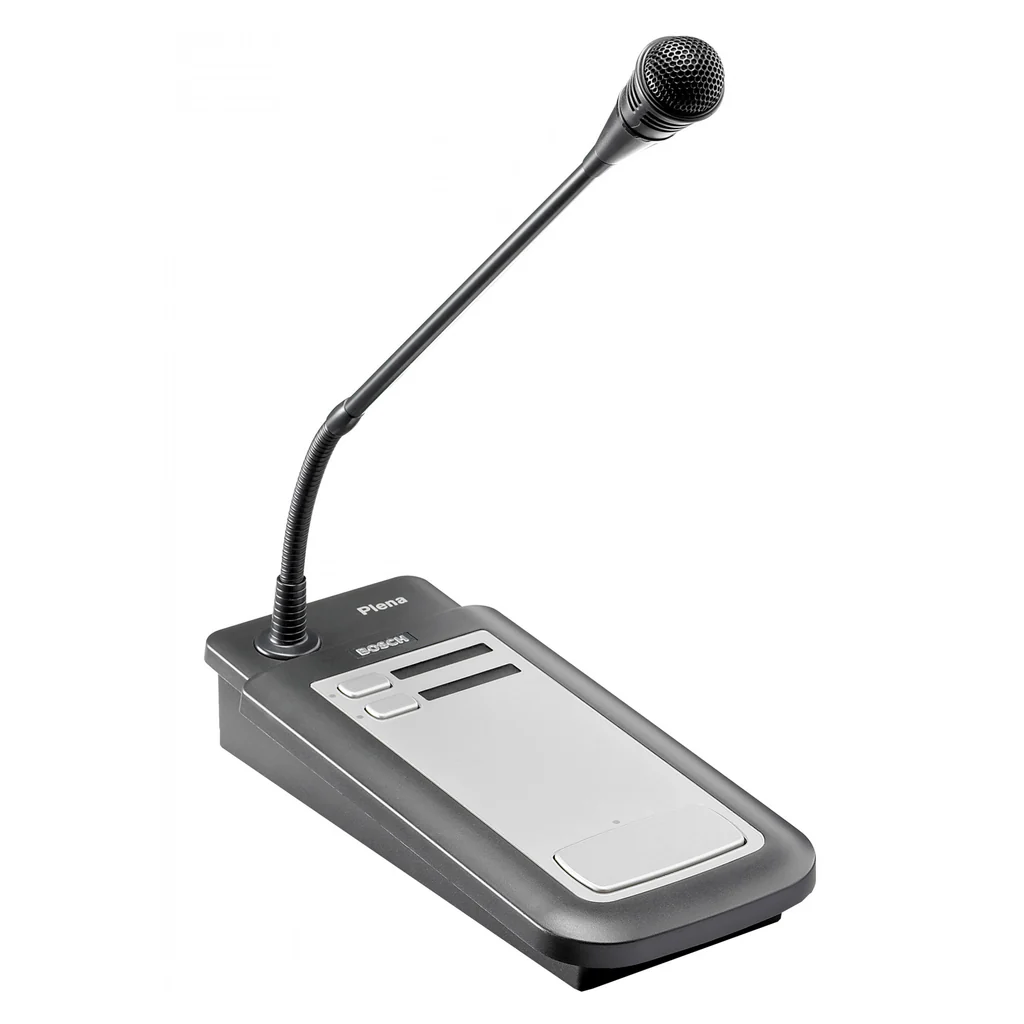

Plena Two Zone Call Station
Product Features
- Modern two-zone call station for the PLE series
- Selectable gain
- Speech filter and limiter
- Output level control
- Loop-through option for up to 8 call stations
- LED indications for zone selection, busy, and power on
Technical Specification
| Voltage range | 24 V(DC), supplied by PLE-series mixer or mixer amplifier |
| Current consumption | < 30 mA |
| Performance | |
| Nominal sensitivity | 85 dB SPL (gain preset 0 dB) |
| Nominal output level | 700 mV |
| Maximum input sound level | 110 dB SPL |
| Gain preset | -15 / 0 / +6 dB |
| Limiter threshold | 2V |
| Compression ratio limiter | 1:20 |
| Distortion | < 0.6% (maximum input) |
| Equivalent input noise level | 25 dB SPL(A) |
| Frequency response | 100 Hz – 16 kHz |
| Speech filter | – 3 dB @ 315 Hz, high-pass, 6 dB/oct |
| Output impedance | 200 Ω |
