C22 2-Channel Vacuum Tube Preamplifier Mk V

 31,850.00

Experience the iconic McIntosh sound. This vacuum tube preamplifier offers a warm, rich, and detailed sound that is perfect for audiophiles who appreciate classic design and a truly engaging listening experience.

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

From $20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From $40

  • Warranty 1 year
  • Free 30-Day returns

Specification

Overview

Processor

Display

RAM

Storage

Video Card

Connectivity

Features

Battery

General

Description

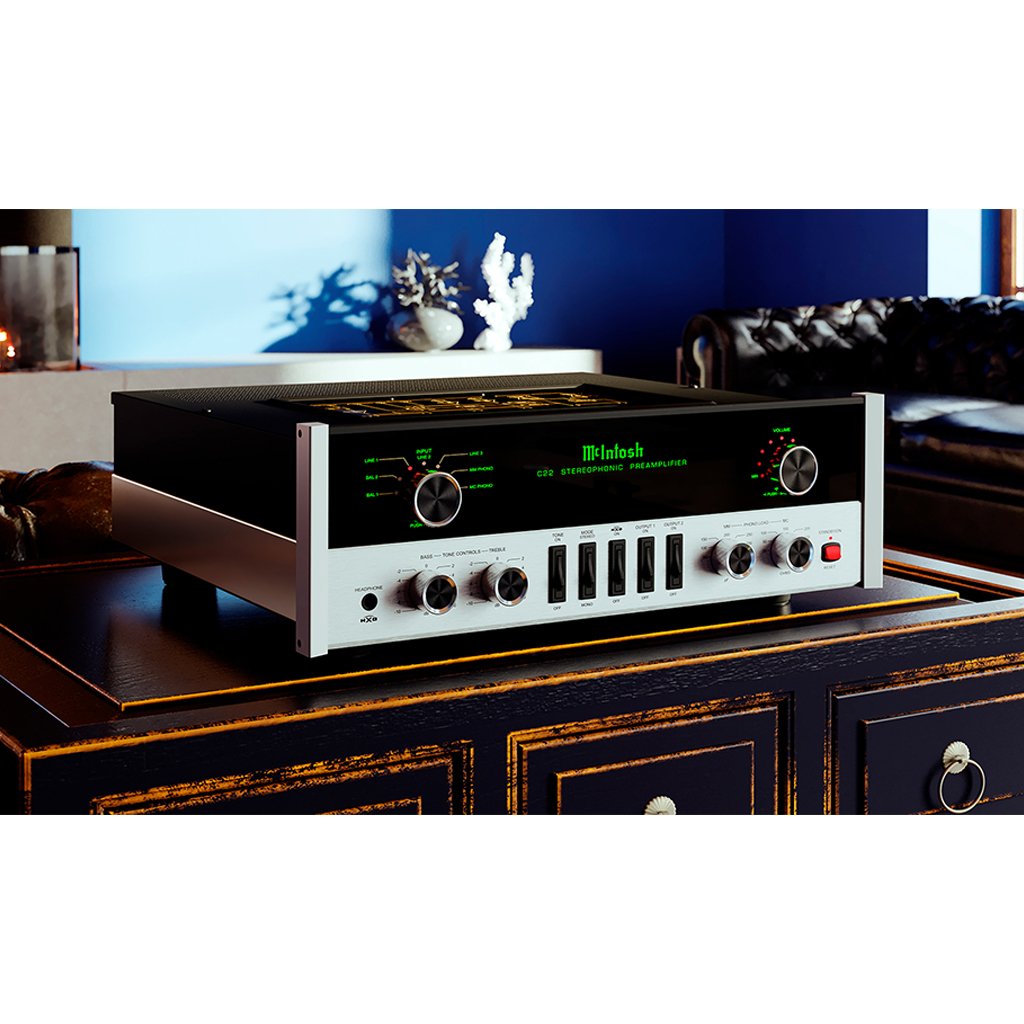

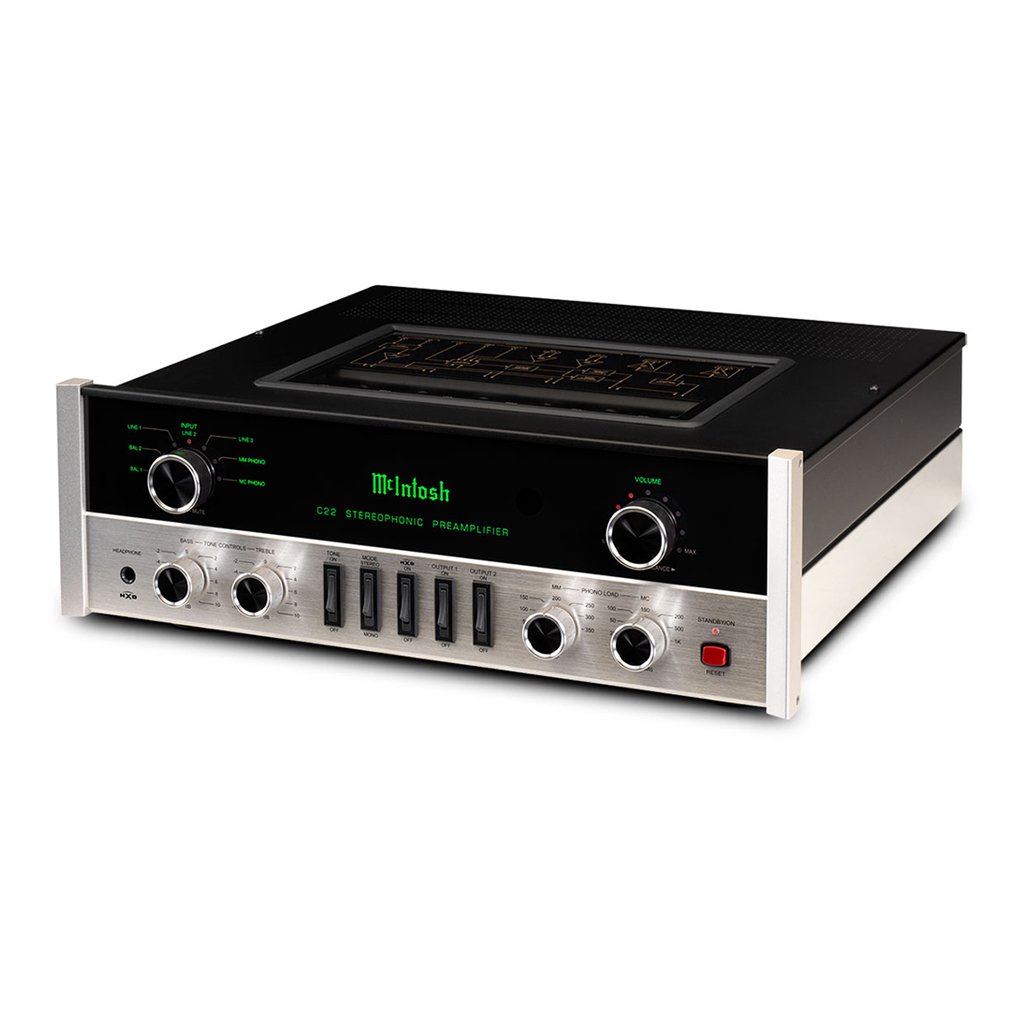

The McIntosh C22 2-Channel Vacuum Tube Preamplifier Mk V is a tribute to a classic, delivering the unparalleled warmth and musicality of pure tube amplification. Featuring six 12AX7a vacuum tubes that glow beautifully through its black glass front panel, this Mk V iteration combines nostalgic aesthetics with modern precision.

It offers 7 analog inputs, including 2 balanced XLRs and two exceptional phono inputs (MM/MC) with adjustable loading, catering to serious vinyl enthusiasts. A Digitally Controlled Analog Volume Control, Bass/Treble tone controls, and a High Drive HXD® Headphone Amplifier provide comprehensive control. Housed in a gleaming polished stainless steel chassis, the C22 Mk V ensures a rich, engaging, and transparent listening experience, making it a timeless centerpiece for any high-fidelity system.

Features

– This is the newest version of our C22 Vacuum Tube Preamplifier – the Mk V. It is the latest McIntosh vacuum tube preamplifier to carry the cherished C22 model number.
– It’s a direct replacement to our C70 Limited Edition 70th Anniversary Vacuum Tube Preamplifier. It has all the performance of the acclaimed C70 but with the hallowed C22 moniker and its signature glass and aluminum front panel design.
– Features (1) 12AT7 and (5) 12AX7A vacuum tubes that are visible through a glass panel on the top cover.
– Inputs consist of two balanced and three unbalanced inputs, one Moving Coil and one Moving Magnet phono inputs. There are two pairs each of balanced and unbalanced outputs.

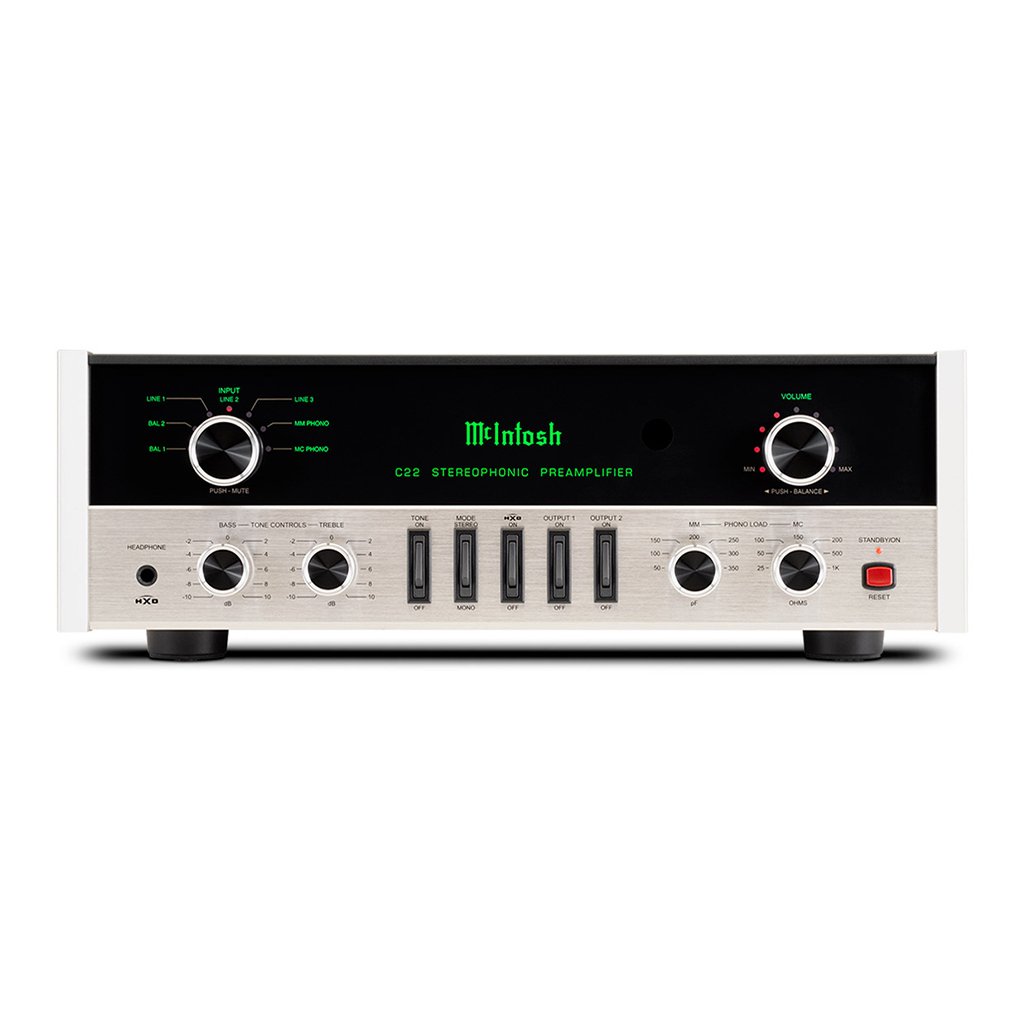

– Includes adjustable bass and treble tone controls, plus adjustable Impedance and capacitance for the phono inputs. All control operations are done via knobs and rocker switches. Modern LED indicators denote input selection and volume level.
– Our High Drive headphone amplifier is included and features our Headphone Crossfeed Director (HXD®) technology.
– Power Control can automatically turn other connected McIntosh components on and off.
– With its retro black glass and aluminum front panel design, the C22 Mk V will fit right in with McIntosh home audio systems of any era – from the 1950s to current day.

Specifications

ELECTRONIC SPECIFICATIONS
Number of Channels:2
Maximum Volts Out (Balanced / Unbalanced):16V RMS / 8V RMS
Sensitivity Phono (Moving Magnet):4.5mV
Signal To Noise Ratio (Moving Magnet):75dB
Voltage Gain (Moving Magnet):40dB
Total Harmonic Distortion:0.08%
Sensitivity High Level (Balanced / Unbalanced):900mV / 450mV
Signal To Noise Ratio (High Level):100dB
Voltage Gain (High Level):15dB
Input Impedance (Balanced / Unbalanced):44K ohm, 22K ohm
Frequency Response:
– +0, -0.5dB from 20Hz to 20kHz
– +0, -3dB from 15Hz to 100kHz
Sensitivity Phono (Moving Coil):0.45mV
Signal To Noise Ratio (Moving Coil):75dB
Voltage Gain (Moving Coil):60dB

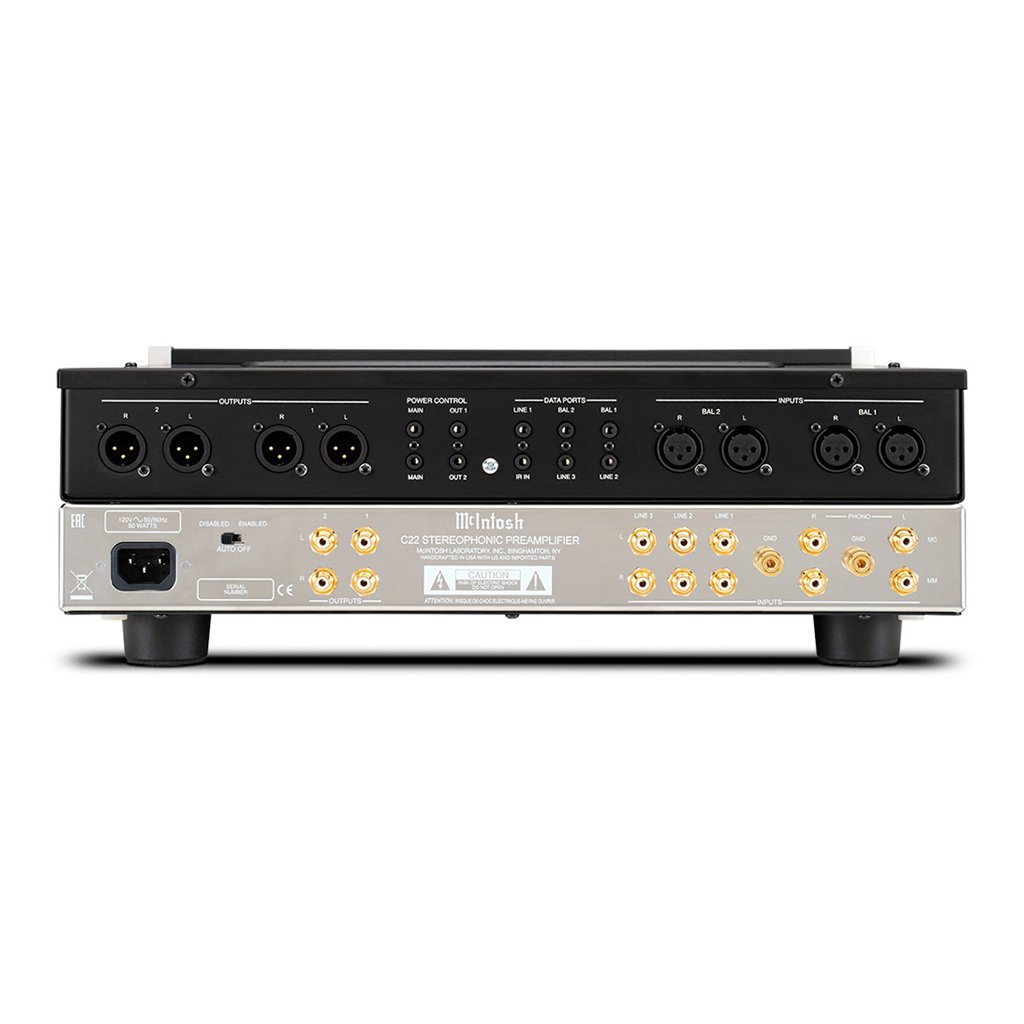

CONNECTIVITY
Balanced Input:2
Phono Input Moving Magnet:1 (adjustable)
Digital Optical Input:0
HDMI (ARC) Input:0
Balanced Variable Output:2
Headphone Output:1/4″ High Drive with Headphone Crossfeed Director (HXD®)
Unbalanced Analog Connector Type:Premium gold-plated solid brass
Unbalanced Input:3
Upgradeable Digital Audio Module:No
Digital MCT (DIN) Input:0
Digital AES/EBU Input:0
Unbalanced Fixed Output:0
Input Level Match:No
Service Port:0
Phono Input Moving Coil:1 (adjustable)
Digital Coaxial Input:0
Digital USB Input:0
Balanced Fixed Output:0
Unbalanced Variable Output:0
Home Theater PassThru:No

CONTROL
Tone Controls:Bass and Treble
Power Control Output:2 Main, 2 Switched
Tone Bypass and Input Assign:
– Tone Bypass: Yes
– Input Assign: No
Rear Panel Data Port:5
RS232 Control Input:No
Rear Panel IR Sensor Input:Yes

GENERAL SPECIFICATIONS
Multi-Chassis or Single:Single, two layer
Power Consumption (On):50 Watts
Output Meters:No
Vacuum Tube or Solid State:Vacuum Tube: (5) 12AX7A and (1) 12AT7

WEIGHTS & DIMENSIONS:
Unit Dimensions (W x H x D):
– 17.5″ (44.45cm) x 6″ (15.24cm) x 18″ (45.72cm)
Unit Weight:25 lbs (11.3kg)
Shipping Weight:41.4 lbs (18.8kg)
