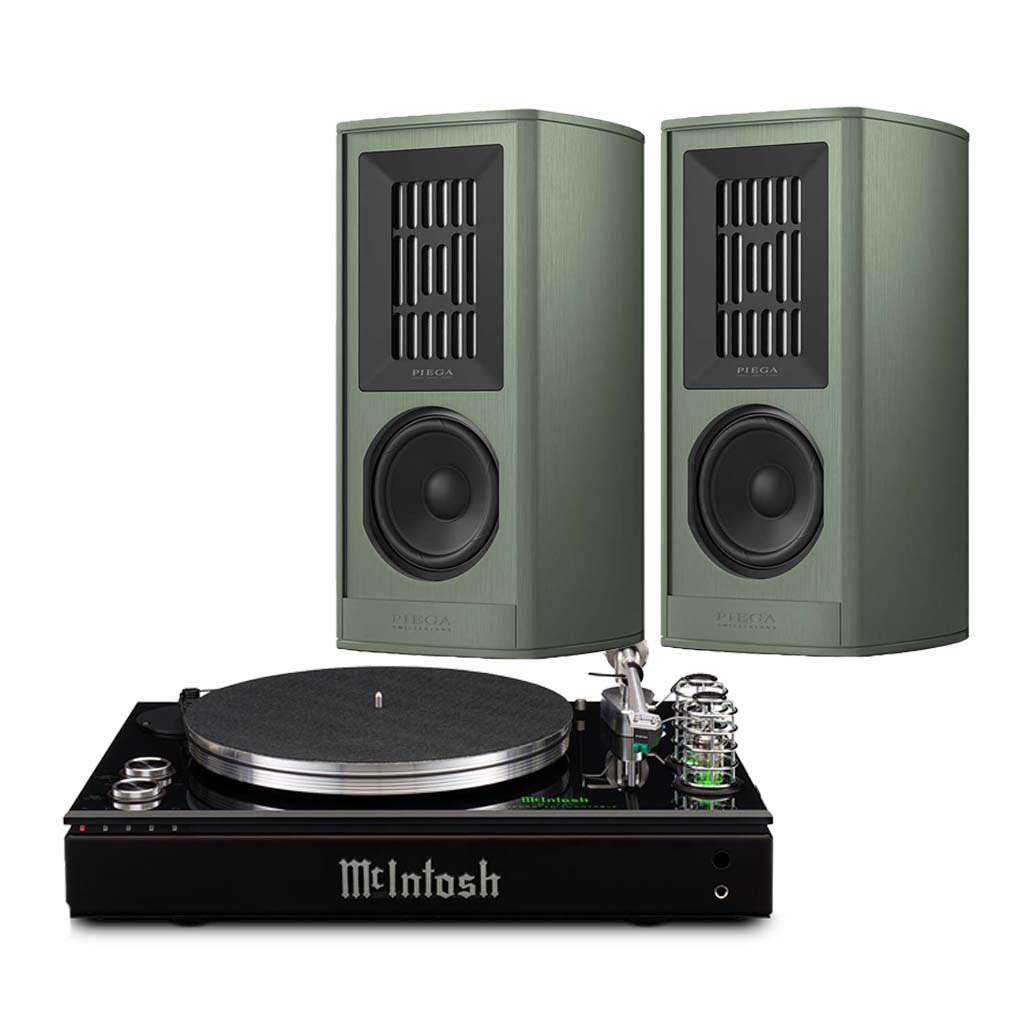

Coax 411 Bookshelf Speakers x MTI100 Integrated Turntable
78,175.00
This product bundle contains : Coax 411 Bookshelf Speakers and MTI100 Integrated Turntable
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Black Friday Blowout!
Specification
Overview
Processor
Display
RAM
Storage
Video Card
Connectivity
Features
Battery
General
Description
Coax 411 Bookshelf Speakers Overview
The Coax 411 represents a perfect introduction to the coaxial world of PIEGA. It provides a delightful audio performance in the highest resolution, unparalleled amongst bookshelf speakers, and leaves nothing to be desired in small to medium-sized rooms.
Unique Midrange For Even Finer Details
By Positioning The Tweeter And Midrange Driver Point Symmetrically On One Level, Piega Yet Again Sets New Standards. This Globally Unique Architecture Creates A Point Source At Which The Position Of The Sound Reproduction Remains Unchanged Across A Wider Frequency Range, Resulting In A Phenomenal Time And Impulse Response For Incredible Sound Reproduction.
Dynamic Bass
The Woofers Are Manufactured By The Renowned Chassis Manufacturer Seas Based On Piegaās Specifications To Produce Powerful And Punchy Basses Of The Highest Class.
Discover The Eight New Coax Excellence Colours
Discover The Eight New Colours Of The Coax Excellence Series, Which We Have Made Specifically For The Coax Gen2 Speakers. Customize Your Listening Experience With Eight Exciting Color Options Like Sandalor, Building Silver, Bronze And More.
MTI100 Integrated Turntable
The McIntosh MTI100 Integrated Turntable offers a complete, high-fidelity audio system in one elegant unit. It features a belt-drive turntable with a 7-pound machined aluminum platter and a pre-installed Sumiko Olympia Moving Magnet cartridge for exceptional vinyl playback. Its preamplifier stage employs two glowing 12AX7a vacuum tubes for warm, musical sound, feeding an 80 Watt per channel (8Ī©) Class D amplifier.
Digital capabilities include Bluetooth 4.2 with aptX⢠HD, plus optical and coaxial inputs. An additional RCA input allows for external sources. With a High Drive Headphone Amplifier, subwoofer output, and iconic McIntosh black glass design, the MTI100 delivers powerful, versatile, and aesthetically stunning performance for discerning listeners.
Features
COAXIAL RIBBON C112+
Joined by two woofers, the new C212+ coax driver unfolds its full dynamics and inspires with its equally natural and vibrant sound diversity.
TIM2
The «Tension Improve Module 2» (TIM2) sets the cabinet under controlled tension to effectively calm cabinet resonances.
TIMELESS DESIGN
The elegantly shaped speaker cabinet designed by Stephan Hürlemann is a visual highlight in any room.
UHQD WOOFER
Its two 160 mm woofers, now supported by three passive radiators, and its significantly larger volume ensure a full-bodied bass response.
ALUMINUM CABINET
The extraordinary cabinet made of seamless extruded aluminum sets new standards among the worldās highest-ranked speakers in terms of dimension and quality.
UNIQUE MIDRANGE FOR EVEN FINER DETAILS
By positioning the tweeter and midrange driver point symmetrically on one level, PIEGA yet again sets new standards. This globally unique architecture creates a point source at which the position of the sound reproduction remains unchanged across a wider frequency range, resulting in a phenomenal time alignment and impulse response for incredible sound reproduction.
DYNAMIC BASS
The woofers are manufactured by the renowned chassis manufacturer SEAS based on PIEGAās specifications to produce powerful and punchy basses of the highest class.
MTI100 Integrated Turntable Features
– The MTI100 Integrated Turntable is so much more than just a turntable. A one-of-a-kind product, the MTI100 is designed for those who want maximum flexibility in their home audio system but donāt want ā or donāt have the space for ā a large audio system in their home.
– Besides playing 33-1/3 and 45 rpm records, it also includes a power amplifier, a vacuum tube preamplifier, a phono preamplifier, analog and digital inputs, a
BluetoothĀ® receiver, a subwoofer output, stereo speaker outputs, and a headphone jack.
– The dedicated phono preamplifier is housed in a custom shielding box that prevents interference or noise from seeping into the vinyl signal.
– Comes with a Sumiko Olympia Moving Magnet cartridge, whose upgraded stylus and cantileverassembly allow for more dynamic punch and improved frequency response.
– Class D amplifier is rated for 80 Watts per channel into 4 Ohms or 50 Watts per channel into 8 Ohms.
– Marries vintage vinyl records with modern music streaming via a High Definition Bluetooth input that ensures you receive the best sound quality possible from your Bluetooth device.
Specifications
Design:Ā 3-way system floor-standing speaker
Recommended Amplifier Power:Ā 20 ā 250 watts
Sensitivity:Ā 90 db/W/m
Impedance:Ā 4 ohms
Frequency Response:Ā 32 Hz ā 50 kHz
Equipment:
– 2 Ć 160 mm UHQD woofers
– 2 Ć 160 mm UHQD passive radiators
– 1 Ć C112+ coaxial ribbon
Cabinet:Ā Extruded aluminum with Tension Improve Module 2 (TIM2)
Dimensions (H Ć W Ć D):Ā 117 Ć 21 Ć 31 cm
Weight:Ā 45 kg
MTI100 Integrated Turntable Specifications
CARTRIDGE SPECIFICATIONS
–Ā Cartridge Type:Ā Moving Magnet
–Ā Output Level:Ā 4mV at 1kHz
–Ā Load Impedance:Ā 47k Ohms
–Ā Frequency Response:Ā 12Hz to 30kHz
–Ā Channel Separation:Ā 30dB at 1kHz
–Ā Compliance:Ā 12 x 10-6 cm/dyne
–Ā Recommended Tracking Force:Ā 2.0 g
–Ā Channel Difference:Ā Less than 1dB at 1kHz
–Ā Total Mass:Ā 6.5 g
–Ā Stylus:Ā Elliptical
–Ā Cantilever Material:Ā Aluminum
TONEARM SPECIFICATIONS:
–Ā Bearing:Ā Lateral type bearing
–Ā Arm Tube:Ā Damped machined aluminum
–Ā Adjustments:Ā None
TURNTABLE SPECIFICATIONS
–Ā Playback Speeds:Ā 33-1/3 and 45 rpm
–Ā Motor Type:Ā Permanent magnet AC synchronous
–Ā Speed Control:Ā Manual speed change via a 2 speed pulley
–Ā Platter:Ā Aluminum
–Ā Platter Bearing:
Oil bath bearing with a high performance polyetheretherketone (PEEK) thrust disc and machined graphite impregnated brass bushings
–Ā Signal To Noise Ratio:Ā 35dB – 40dB
–Ā Wow & Flutter:Ā 0.1%
CONNECTIVITY:
–Ā Stereo Outputs Unbalanced:Ā 1 (bridged to AMP IN)
–Ā Stereo Inputs Unbalanced:Ā 1
–Ā Digital Coaxial Input:Ā 1
–Ā Digital Optical Input:Ā 1
–Ā Subwoofer Output:Ā 1
–Ā Wireless Input:Ā High Definition Bluetooth 4.2
CONTROL
–Ā Power Control Input:Ā 0
–Ā Power Control Output:Ā 1
–Ā Platter Light:Ā N/A
–Ā Speed Control Fine Adjustment:Ā No
ELECTRONIC SPECIFICATIONS:
Power Output per Channel:
– 50 Watts into 8 Ohms
– 80 Watts into 4 Ohms
Number of Channels:Ā 2
Speaker Impedance:Ā 4 or 8 Ohms
Rated Power Band:Ā 20Hz to 20kHz
Total Harmonic Distortion:
– 0.5% (Amplifier)
– 0.2% (Preamplifier)
Dynamic Headroom:
– 1.0dB (8 Ohms)
– 1.3dB (4 Ohms)
Frequency Response +0,-0.7dB:Ā 20Hz to 20kHz
Signal To Noise Ratio (Moving Magnet):Ā 75dB
Signal To Noise Ratio (High Level):Ā 90dB
Damping Factor:
– 8 Ohms: >200
– 4 Ohms: >100
Maximum Output (Balanced / Unbalanced):Ā 9V Unbalanced
GENERAL SPECIFICATIONS
–Ā Dust Cover Included:Ā No
WEIGHTS & DIMENSIONS
Unit Dimensions (W x H x D):
– 19-1/4ā (48.9cm) x 6-3/4ā (17.15cm) x 14ā (35.6cm)
Unit Weight:Ā 33.5 lbs (15.2 kg)
Shipping Weight:Ā 40.5 lbs (18.4 kg)
