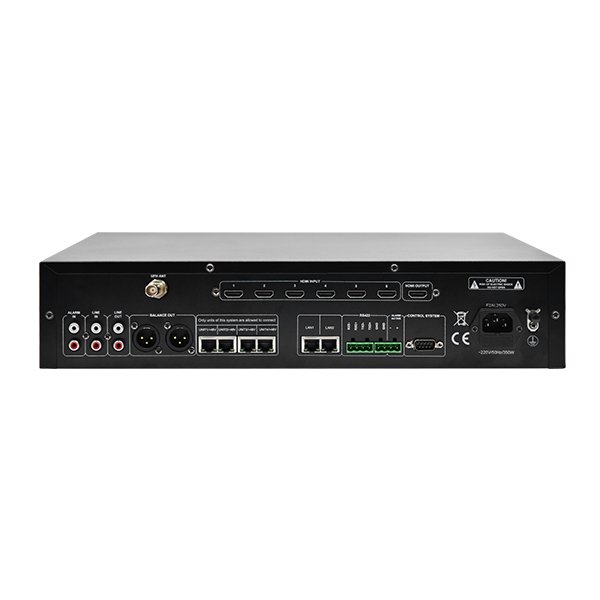

Full Digital Conference System Host D101
The D71 series conference host integrates automatic camera tracking, 4.3-inch true-color touch screen handling, intuitive graphical display, and other advanced management and control features, leading the conference system equipment to a more perfect design path. The conference host, provideing power to the conference unit, has good scalability and is the core equipment of the conference system.
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Specification
Overview
Processor
Display
RAM
Storage
Video Card
Connectivity
Features
Battery
General
Description
Features
ā ļ¬Sensitivity: -26dBFS
ā Hot Backup function.
ā A single conference system can connect with up to 4096 conference units.
ā As a distributed conference system with Network Transmission protocol, it provides an uncompressed, high-sound-quality, and easy-to-install solution.
ā The simultaneous limit of speakers (1/2/3/4/5/6) setting.
ā 4.3″ TFT true color screen/touch screen:
| Model | D7101 |
| Line input voltage | 250 Ā± 50mV |
| Alarm input voltage | 250 Ā± 50mV |
| Line output voltage | 1000 Ā± 100mV |
| Balance output voltage | 2000 Ā± 100mV |
| Frequency response: | 30Hz-20kHz (Ā±3dB) |
| Signal-to-noise ratio | ā„ 80dB |
| Harmonic distortion | ā¤ 0.5% |
| Maximum Output power | 90W, 4-channel network PoE+48V power supply |
| Static power consumption | ā¤ 30W |
| UHF Frequency | 632 MHz—695 MHz |
| Power switch | AC220V/50Hz/350W |
| Package size(L x W x H) | 525Ć480Ć185mm |
| Machine dimensions(L x W x H) | 483Ć385Ć88mm |
| Gross weight | 7.8kg |
| Net weight | 6.3kg |
