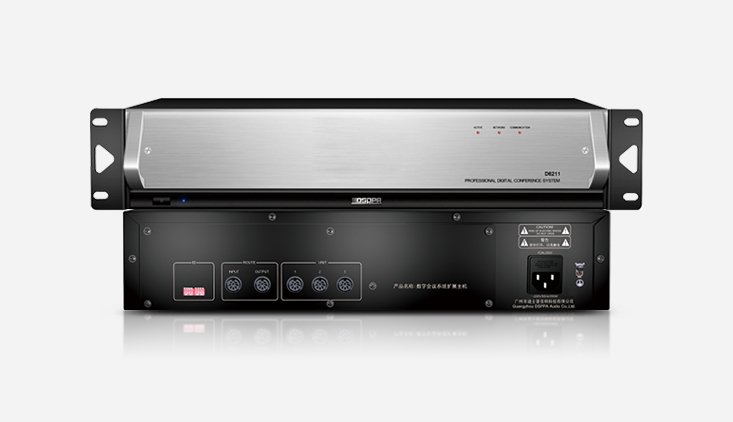

Intelligent Conference Mic Extender
- It works with the conference host to extend the maximum number of conference units.
- In a conference system, it supports up to 32 extended hosts.
- 8P-DIN sockets: One for connection with conference host and three for connection with conference units.
- An extended host allows connection of up to 128 conference units.
- 2U luxurious cabinet design, with fashionable and artistic appearance.
- It may be installed on a 19-inch standard cabinet and is easy to install and space saving.
- The equipment casing is made from metal materials and all the lines and casing are properly grounded, so the system has an anti-static of 10kV in case of physical contact and 15kV in case of air contact.
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Specification
Overview
Processor
Display
RAM
Storage
Video Card
Connectivity
Features
Battery
General
Description
Conform to IEC 60914 international standard Conference system Mic extender One D62000 system support up to 32 extenders One extender can connect with 128 Mic
32 Extension Controllers
It works with the conference controller to extend the maximum number of conference units. In a conference system, it supports up to 32 extension controllers. It may be installed on a 19 inch standard cabinet and is easy to install and space saving. And it is 2U luxurious cabinet design, with fashionable and artistic appearance.
Specifications of Intelligent Conference Expansion Unit
| Model | D6211 |
| Item | Index parameters |
| Frequency response | 20Hz-20kHzļ¼Ā±3dBļ¼ |
| SNR | >80dB |
| Harmonic distortion | <0.3%V |
| Static power consumption | 10W |
| Max. power | 350W |
| Output power | ā¤110W/3 wayļ¼24V |
| Quantity of maximum units | 128ps |
| Power source | Switch Mode Power Supply 220V/50Hz/350W |
| Gross weight | 6.9kg |
| Net weight | 6.3 kg |
| Equipment dimensions (LĆWĆH) | 484Ć385Ć88 (mm) |
| Package dimensions (LĆWĆH) | 525Ć480Ć185mm |
