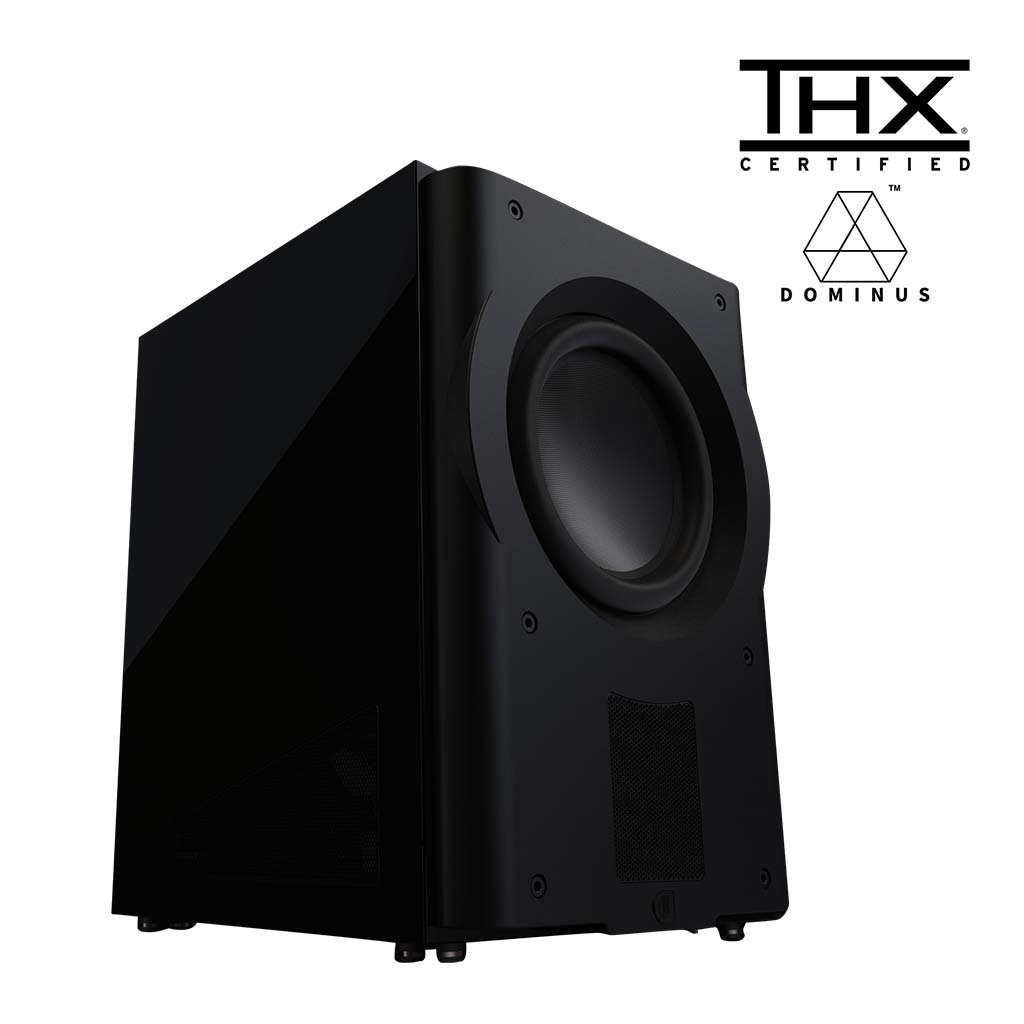

R212s Subwoofer
23,110.00
R212s Subwoofer
Dynamic, Accurate, Solid. The audiophile’s choice.
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Specification
Overview
Processor
Display
RAM
Storage
Video Card
Connectivity
Features
Battery
General
Description
It’s all in the Details
Dynamic, Accurate, Solid. The audiophile’s choice. Only upscaled by our D-series subwoofers in output capability but still giving you the same technology and great low frequency extension. Where sound quality and Transients free of overhang are paramount. Simply no better expression of bass performance then our push-pull subs. Ground up drivers developed by our team of engineers. Glass fiber composite diaphragms, multiple aluminum shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminum voice coil wire are the key ingredients – Proprietary nonlinear modeling techniques allow us to simulate all these components and then optimize for real world driver performance – free air and in box.
Further refinement is done with the aid of Klippel laser measurements to dial things in. To take performance to another level, the push-pull drivers reduce even order harmonics distortion by an additional 10-12dB. Powered by our 1.3kW amplifier, all functions and safeties are controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds, powerful enough to slam.
All R-Series subs share our 2.4” LCD touchscreen display and ability to control advance settings using our App. Certified THX Dominus when 2 R212s subs are used A testament to the level of design and performance achieved.
Features
The dual 12″, bespoke glass-fiber bass drivers are designed and made by Perlisten, and claim a +/-20mm linear excursion.
The push/pull arrangement of the two drivers reduces distortions by to 10-12dB, producing much cleaner output than single driver and even conventional dual-driver subs.
The sealed cabinet helps produce a smooth in-room response compared to ported subwoofers.
The downloadable control app allows set up and adjust of the R212s from your listening position. There’s three modes to choose from (cut, boost, or THX), and set the 10-band parametric equaliser to help smooth out its response in your room. Three individual presets allow easy switching between movie/music listening.
A single R212s subwoofer is certified as THX Ultra, but used in pairs, they achieve a THX Dominus rating, capable of effortlessly filling large rooms with cinema levels of sub bass.
Specifications
Amplifier: 1.3kW rms short term
Display Interface: 2.4” LCD color touchscreen
App: iOS and Android
Processor: 32-bit ARM Cortex M4, double precision floating point math
DSP Engine: Ti DSP 48-bit data paths
Driver compliment:
– (2)300mm, Glass fiber diaprhragm
– +/-20mm linear excursion
Frequency Response:
THX EQ: 20-256Hz (-6dB) / 16-278Hz (-10dB)
Boost (Large Room) EQ: 16-256Hz (-6dB) / 14-278Hz (-10dB)
Cut (Small Room) EQ: 25-256Hz (-6dB) / 19-278Hz (-10dB))
Inputs:
– (2) Balanced XLR
– (2) Unbalanced RCA
Outputs:
– (2) Balanced XLR unbuffered
– (2) Unbalanced RCA unbuffered
Parametric EQ: 10-Band PEQ with 3 user presets
Low Pass filter: Bypass, 30-160Hz, slope 6,12,18,24dB/oct
Phase: Variable 0-270°
Polarity: Normal / inverted
Configurable Auto turn-on and 12v Trigger: XLR 1, XLR 1+2, RCA 1, RCA 1+2
Dimensions (HxWxD):
– 600 x 410 x 500mm
– 23.6 x 16.1 x 19.7”
Weight: 48.2 kg (106.0 lbs.)
Certification: THX Dominus (2), THX Ultra (1)
Available finishes: Piano black
