Reference 160 M Mono Amplifier
65,866.00
Unleash the full potential of your speakers. This monoblock amplifier provides an immense amount of clean, dynamic power, allowing your speakers to perform at their absolute best. It’s the ultimate choice for a no-compromise audio system in a large listening room.
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Specification
Overview
Processor
Display
RAM
Storage
Video Card
Connectivity
Features
Battery
General
Description

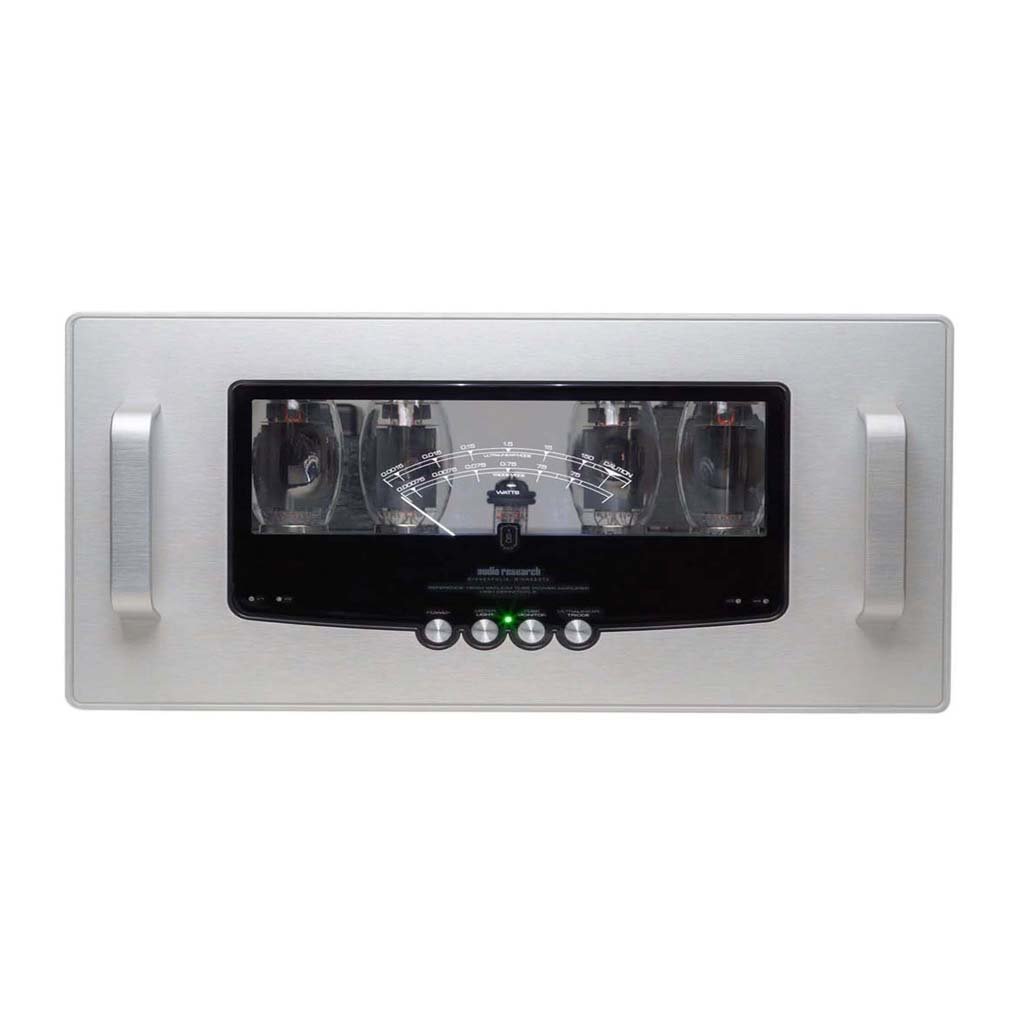

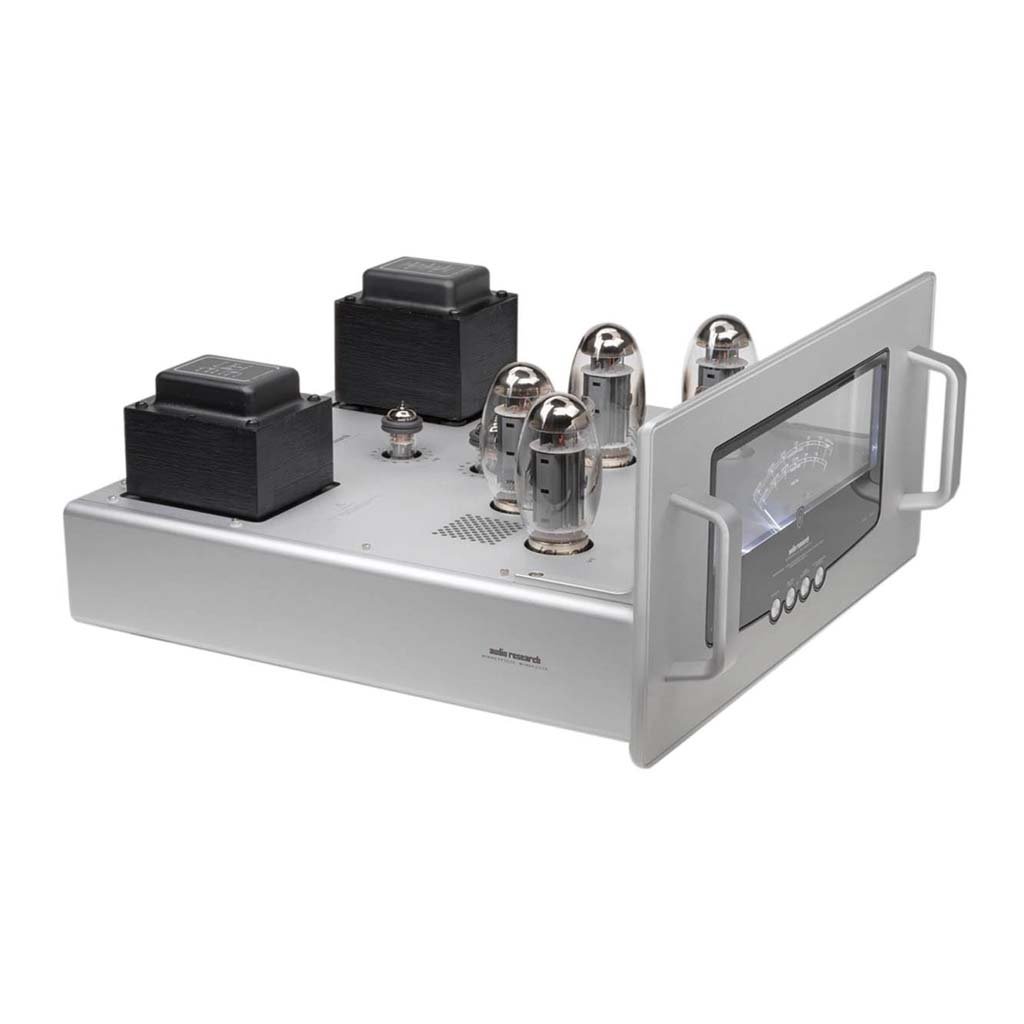

The Audio Research Reference 160 M Mono Amplifier (REF160M), launched in October 2018, is a high-end all-vacuum tube monoblock power amplifier from the acclaimed American manufacturer. Each unit delivers 140 watts of continuous power (via four KT150 tubes) and features switchable Ultralinear/Triode operation for sonic flexibility. The REF160M incorporates a proprietary auto-bias circuit for effortless tube maintenance and a striking GhostMeter™ display that provides a view of the glowing tubes alongside an integrated power meter. Its refined audio topology uses a 4-layer circuit board and a high-capacity power supply for exceptional dynamics and a low noise floor.
With both balanced (XLR) and single-ended (RCA) inputs, and 4, 8, and 16-ohm speaker taps, it offers versatile connectivity. Hand-crafted with an integrated cooling fan, the 160 M combines stunning aesthetics with uncompromising audio performance for discerning audiophile systems.
Features
Specifications
– 140 watts continuous from 20Hz to 20kHz. 1kHz total harmonic distortion typically 1% at 140 watts, below 0.04% at 1 watt. (Note that actual power output is dependent upon both line voltage and “condition” i.e.: if power line has high distortion, maximum power will be affected adversely, although from a listening standpoint this is not critical).
POWER BANDWIDTH
– (-3dB Points) 5Hz to 70kHz.
FREQUENCY RESPONSE
– (-3dB points at 1 watt) 0.5Hz to 110kHz.
INPUT SENSITIVITY
– 2.4V RMS Balanced for rated output. (25.5 dB gain into 8 ohms).
INPUT IMPEDANCE
– 200 k ohms Balanced.
OUTPUT POLARITY
– Non-inverting. Balanced input pin 2+ (IEC-268).
OUTPUT TAPS
– 16 ohms, 8 ohms, 4 ohms.
OUTPUT REGULATION
– Approximately 0.6dB 16 OHM LOAD TO OPEN CIRCUIT (Damping factor approximately 14).
OVERALL NEGATIVE FEEDBACK
– 14dB SLEW RATE: 13 volts/microsecond RISE TIME: 2.0 microseconds.
POWER REQUIREMENTS
– 105-130VAC 60Hz (210-250VAC 50Hz) 400 watts at rated output, 700 watts maximum, 260 watts at “idle”, 1 watt off.
TUBES REQUIRED
– 2 matched pair KT150 (Power output V1-4); 2 6H30 (Gain stage V5 and V6).
DIMENSIONS
– Width 17.25” (43.8 cm)
– Height 10” (25.4 cm)
– Depth 18.5” (47 cm)
– Handles Extended 19.25” (48.9 cm)
WEIGHT
– 56lbs (25.5 kg) Net
– 73lbs (33.2 kg) Shipping
