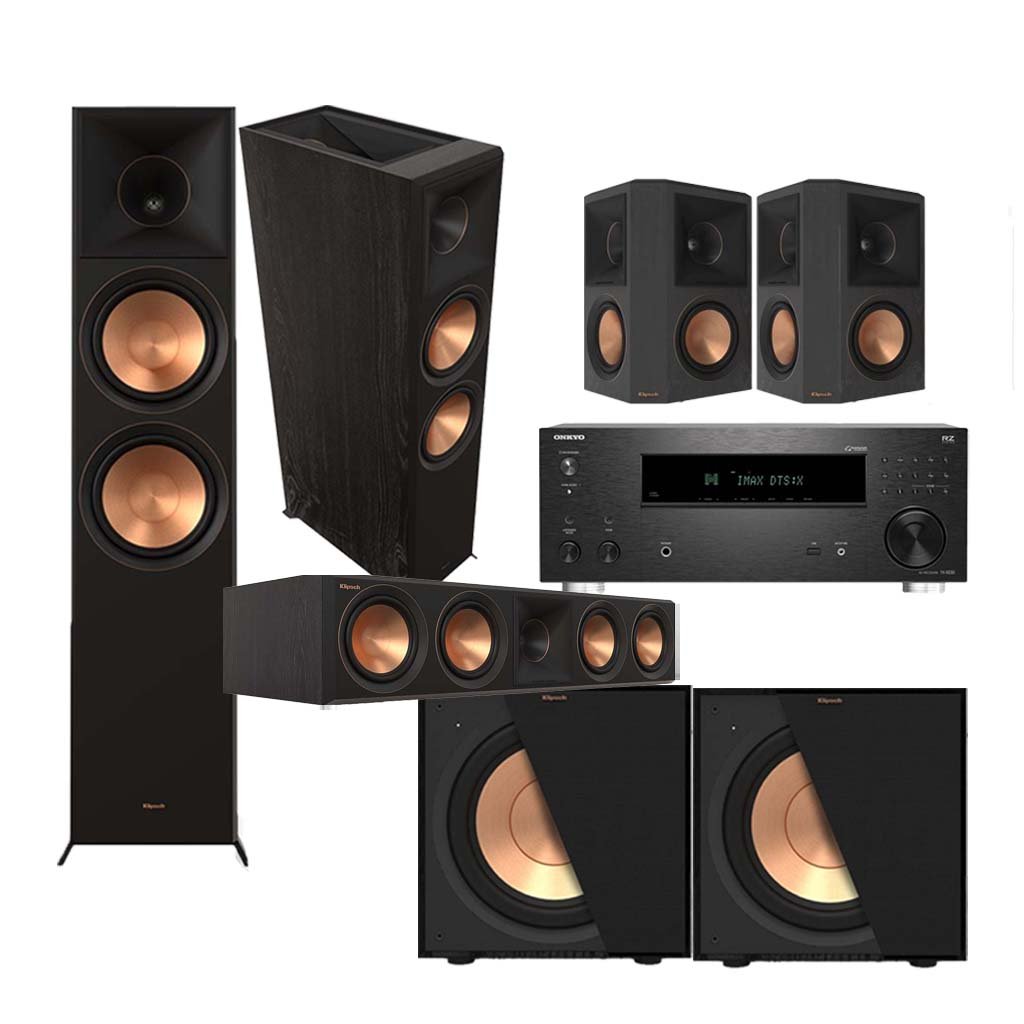

RP-8060FA II 5.2.2 Home Theater System x TX-RZ30 9.2-Channel THX Certified AV Receiver with Dirac Live

TAKE YOUR MOVIES AND MUSIC TO NEW HEIGHTS
Our proprietary speaker technologies are ideal for delivering the most immersive, impactful 360° Dolby Atmos® listening experience. Controlled directivity and highperformance ensure focus and precise aiming of high frequency energy.

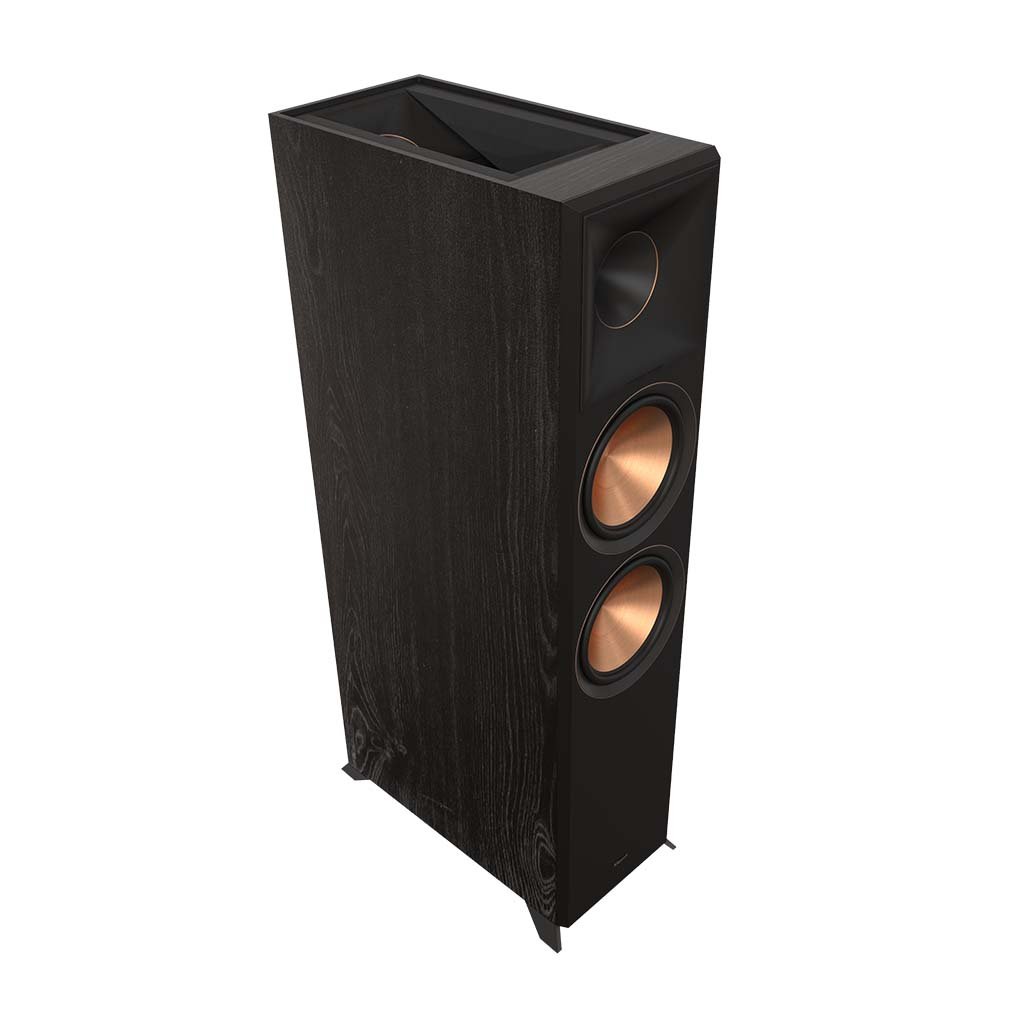

BUILT-IN ELEVATION SPEAKER
The RP-8060FA II full-range tower speakers features a high-performance 6.5” 2-way up-firing Dolby Atmos speaker integrated in the top for an awe-inspiring, encompassing experience. It’s a perfectly matched set up that virtually disappears. The integrated speaker terminals are placed low on the cabinet for convenience and an unobtrusive connection.

90° X 90° SILICON COMPOSITE HYBRID TRACTRIX HORN
Horn loading maximizes efficiently and increases detail while focusing highfrequencies towards the listening area. Proprietary Tractrix® geometry provides the most efficient transfer of high frequency waves into the listening area. The
phase plug and compressed molded silicon face ensure smooth frequency response. When combined, the cleanest, most natural sound possible is created. The second generation increases horn size for a larger soundstage and enhanced directivity.

LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER
The exclusive Linear Travel Suspension minimizes distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.

VENTED TWEETER DESIGN
The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high frequency reproduction.

CERAMETALLIC WOOFERS – ALL NEW DESIGN
A signature feature on the Reference Premiere series, Cerametallic™ woofers are exceptionally rigid and lightweight for minimal distortion and maximum efficiency. New aluminum shorting rings reduce distortion as well as increased power handling and the new motor structure improve transit response with more control with greater speed and accuracy.

TRACTRIX PORTS
Utilizing Tractrix geometry, the Reference Premiere ports allow for the most efficient, fastest air transfer from the cabinet, which reduces port noise for punchier low frequencies. Klipsch Tractrix ports have custom designed inner flares that help reduce air turbulence entering the port. Less turbulent air helps reduce port noise for cleaner, more powerful bass.

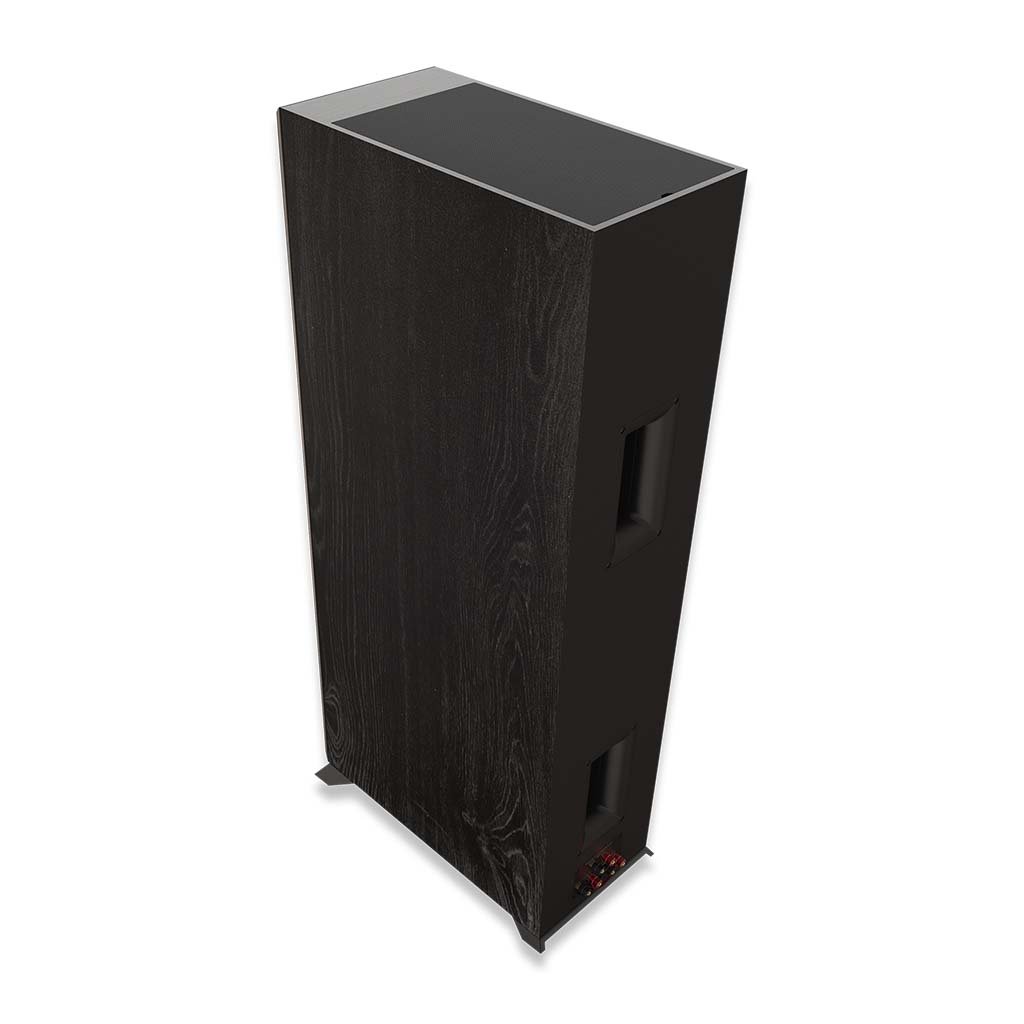

BI-WIRING / BI-AMPING CAPABILITY
Dual input terminals for bi-wiring / bi-amping capabilities. Bi-wiring separates high and low frequency current into separate speaker cables, reducing intermodulation distortion, for clearer midrange. Bi-amping allows for customization using outboard crossovers when using separate amplifiers.

ADVANCED CABINET DESIGN
Additional bracing and a divided cabinet have been added to minimize cabinet resonances and vibration, for the utmost transparency and clarity.

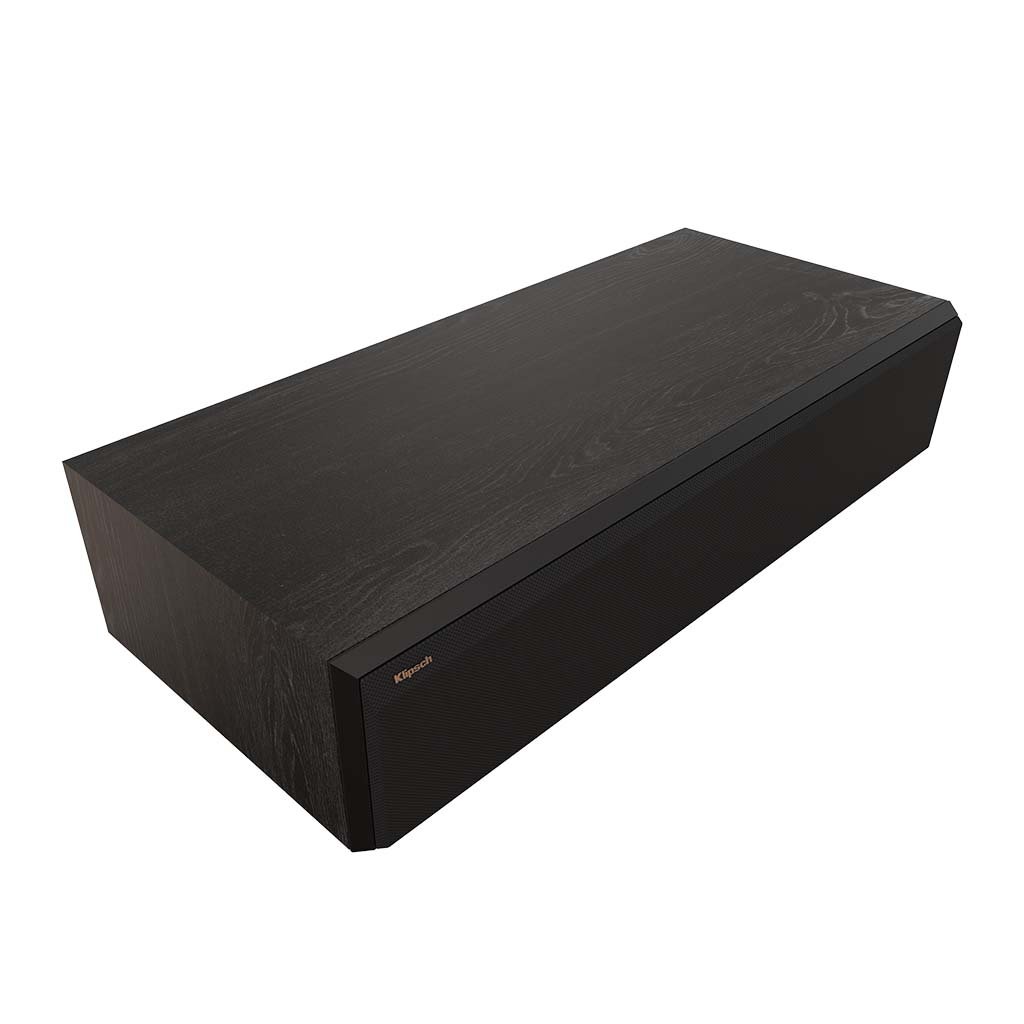

RP-504C II Features

90° X 90° SILICON COMPOSITE HYBRID TRACTRIX HORN
Horn loading maximizes efficiently and increases detail while focusing high frequencies towards the listening area. Proprietary Tractrix® geometry provides the most efficient transfer of high frequency waves into the listening area. The
phase plug and compressed molded silicon face ensure smooth frequency response. When combined, the cleanest, most natural sound possible is created. The second generation increases horn size for a larger soundstage and enhanced directivity.

LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER
The exclusive Linear Travel Suspension minimizes distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.

VENTED TWEETER DESIGN
The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high frequency reproduction.

CERAMETALLIC WOOFERS – ALL NEW DESIGN
A signature feature on the Reference Premiere series, Cerametallic™ woofers are exceptionally rigid and lightweight for minimal distortion and maximum efficiency. New aluminum shorting rings reduce distortion as well as increased power handling and the new motor structure improve transit response with more control with greater speed and accuracy.

TRACTRIX PORTS
Utilizing Tractrix geometry, the Reference Premiere ports allow for the most efficient, fastest air transfer from the cabinet, which reduces port noise for punchier low frequencies. Klipsch Tractrix ports have custom designed inner flares that help reduce air turbulence entering the port. Less turbulent air helps reduce port noise for cleaner, more powerful bass.

NEW AND IMPROVED INPUT PANEL
Featuring audiophile-grade wire and easily accessible aluminum binding posts for any connection type.

FURNITURE GRADE MATERIALS AND FINISHES
Finishes include ebony vinyl and walnut vinyl that boast satin painted baffles with a scratch resistant finish.

STRONG, FLEXIBLE, REMOVABLE GRILLE
Attaches magnetically for an elegant transition from powerful showstopper to discrete performance piece.

CORK PADS
Cork pads replace rubber bumpers for security on a stand or table.

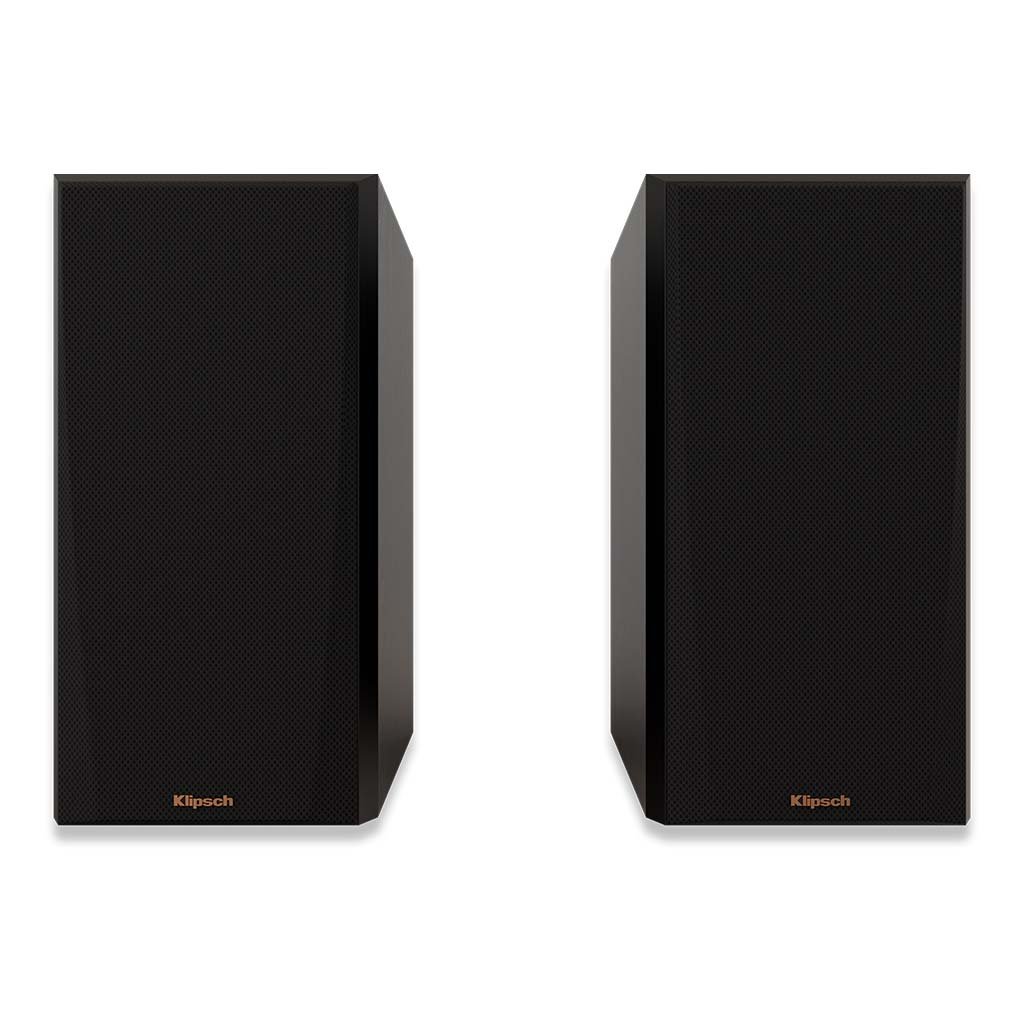

RP-500M II Features

90° X 90° SILICON COMPOSITE HYBRID TRACTRIX HORN
Horn loading maximizes efficiently and increases detail while focusing high frequencies towards the listening area. Proprietary Tractrix® geometry provides the most efficient transfer of high frequency waves into the listening area. The phase plug and compressed molded silicon face ensure smooth frequency response. When combined, the cleanest, most natural sound possible is created. The second generation increases horn size for a larger soundstage and enhanced directivity.

LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER
The exclusive Linear Travel Suspension minimizes distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.

VENTED TWEETER DESIGN
The vented tweeter housing reduces standing waves that create unwanted
harmonics, resulting in enhanced detail and clarity in high frequency reproduction.

CERAMETALLIC WOOFERS – ALL NEW DESIGN
A signature feature on the Reference Premiere series, Cerametallic™ woofers are exceptionally rigid and lightweight for minimal distortion and maximum efficiency. New aluminum shorting rings reduce distortion as well as increased power handling and the new motor structure improve transit response with more control with greater speed and accuracy.

TRACTRIX PORTS
Utilizing Tractrix geometry, the Reference Premiere ports allow for the most efficient, fastest air transfer from the cabinet, which reduces port noise for punchier low frequencies. Klipsch Tractrix ports have custom designed inner flares that help reduce air turbulence entering the port. Less turbulent air helps reduce port noise for cleaner, more powerful bass.

NEW AND IMPROVED INPUT PANEL
Featuring audiophile-grade wire and easily accessible aluminum binding posts for any connection type.

FURNITURE GRADE MATERIALS AND FINISHES
Finishes include ebony vinyl and walnut vinyl that boast satin painted baffles with a
scratch resistant finish.

STRONG, FLEXIBLE, REMOVABLE GRILLE
Attaches magnetically for an elegant transition from powerful showstopper to discrete performance piece.

CORK PADS
Cork pads replace rubber bumpers for security on a stand or table.

RP-1200SW Features

The Best High-Performance Subwoofers Klipsch has ever Made

HYPER-EFFICIENT BALANCED PERFORMANCE
Striking the optimal balance between amplifier power, driver capability and cabinet volume, Reference Premiere subwoofers achieve maximum low frequency extension with great output, accuracy and speed.

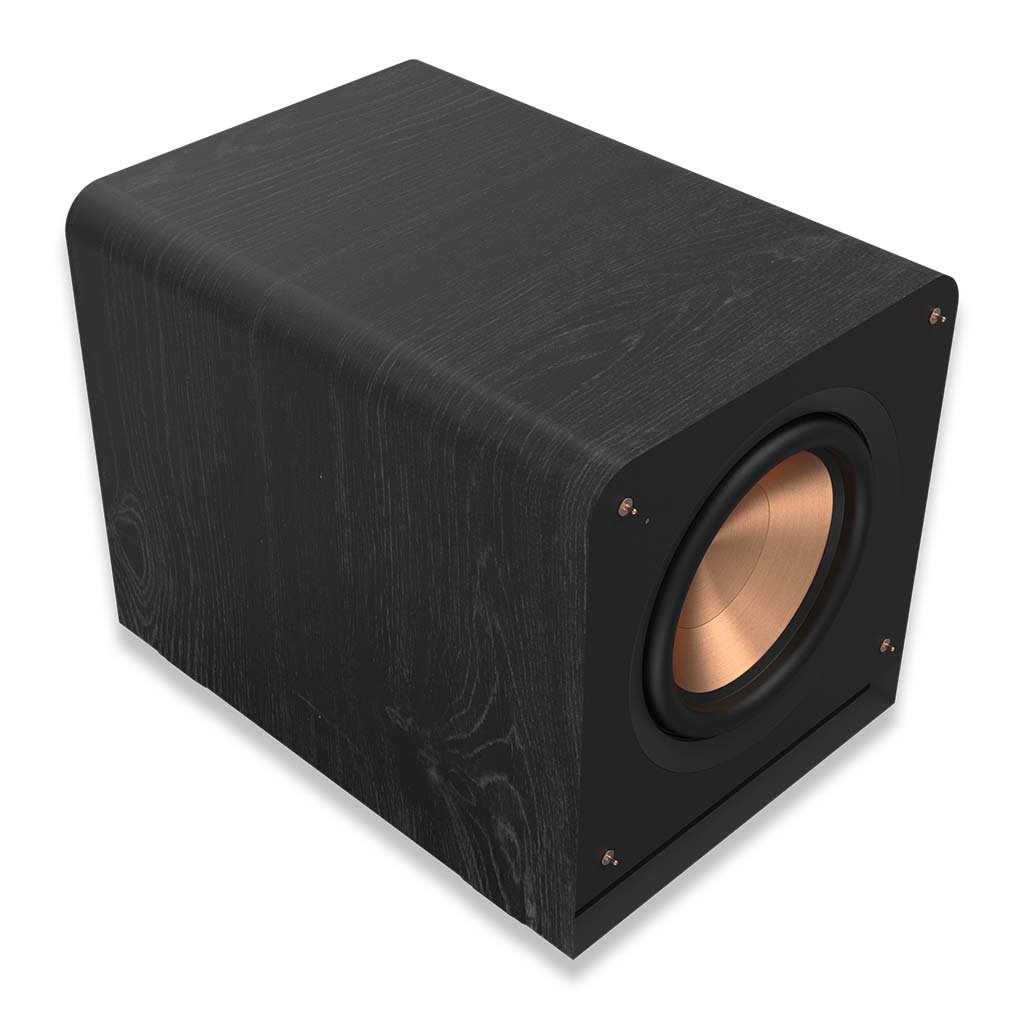

SPUN COPPER FRONT-FIRING CERAMETALLIC WOOFERS
Newly designed Cerametallic™ woofers are exceptionally light and extremely rigid, providing remarkable low frequency response with minimal cone breakup and distortion for higher, cleaner output using less amplifier power.

HIGH EFFICIENCY CLASS D AMPLIFIER
The built-in, high efficiency amplifier features an analog preamp design, which maintains the original signal path for cleaner, true-to-source reproduction. The Class D output stage ensures maximum efficiency for maximum output, detail, and low frequency power.

FRONT-FIRING SLOT PORT WITH EXCLUSIVE INTERNAL FLARE TECHNOLOGY
Proprietary internal geometry with a new Aerofoil slot port design minimizes port noise for clean undistorted low frequencies. The front-firing design allows for placement flexibility.

WA-2 WIRELESS SUBWOOFER KIT CAPABLE
The Klipsch WA-2 Wireless Subwoofer Kit (sold separately) allows high resolution wireless connectivity for easy placement anywhere in your room and optimizes output and low frequency response. Connect up to four WA-2 wireless kits to compatible Klipsch subwoofers in a single room for a completely wireless connection.

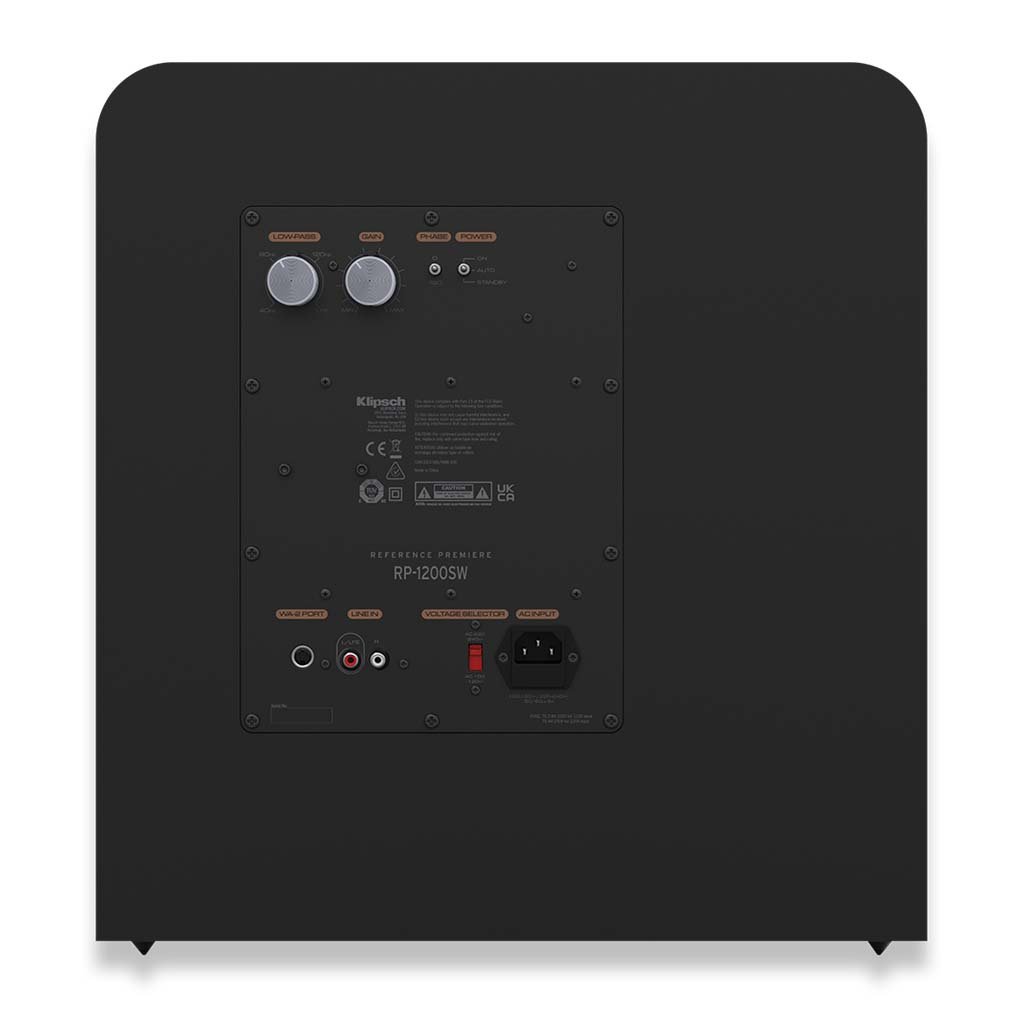

FLEXIBLE CONTROLS
Low Pass Crossover and Variable Phase control allows you to tune the subwoofer to your Klipsch speakers and to your room, establishing the ideal level of bass. Line Level / LFE RCA inputs ensure compatibility with home theater receivers.

1/2-WATT STANDBY MODE
Exceptional efficiency on or off. Meets global efficiency standards – reducing energy costs for the user.

USE INPUTS SIMULTANEOUSLY
Both the RCA and wireless inputs can be utilized, giving you the ability to use a
single subwoofer with multiple system in the same room. For example, you can use
the wireless input for your home theater set up and the RCA input for your 2-channel system, without needing to switch inputs when changing between systems.

ULTRA-DURABLE EBONY FINISH
Scratch resistant ebony vinyl finish looks like real wood and covers the entire cabinet.

DETAILED DESIGN
Rounded corners, shock-absorbing rubber feet, steel grille posts and a woven cloth grille ensure a premium look and feel.
