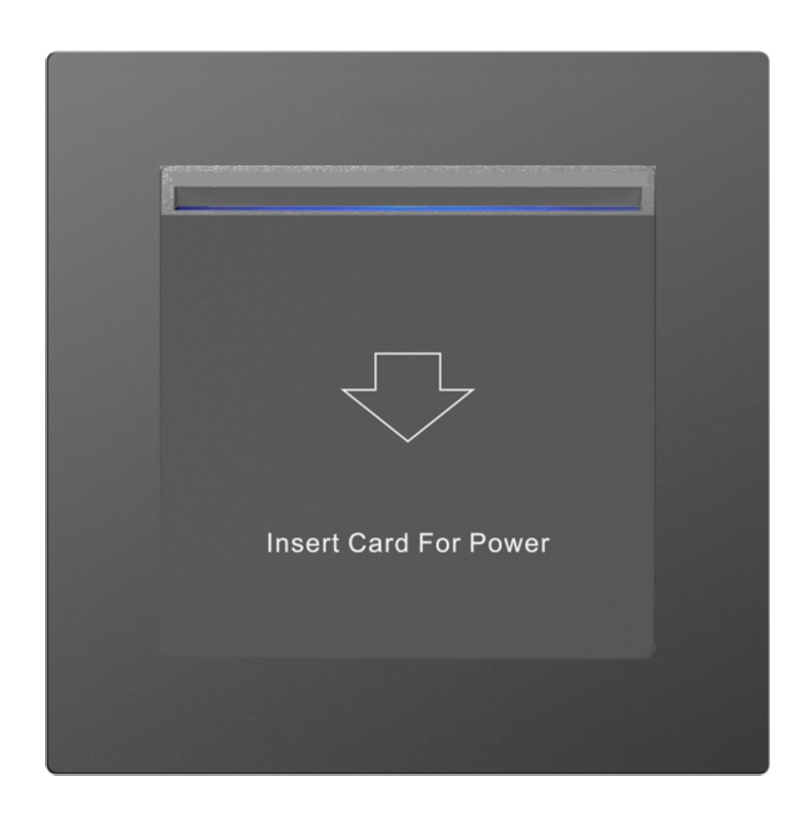

Smart Laffey Hotel RFID / Mifare Keycard Energy-Saving Switch & Outdoor Service Signage Series
Let’s Customize Your Order Live!
Because our professional AV, cinema, and automation systems often require precise technical configurations and specialized handling, we manage all orders personally via WhatsApp.
How it works:
💬 Confirm Details: A technical expert will instantly verify your product specifications.
🚚 Arrange Delivery: We’ll calculate the safest, fastest shipping options for your location.
💳 Secure Payment: You will receive a private, secure payment link right inside the chat.
👉 Tap Here to Chat & Complete Order
Card Technology / Frequency Smart Mifare IC (13.56MHz / Room-Specific) | RFID High Frequency (125kHz) | Universal High Voltage
Module / Panel Type Keycard Power Switch | Outdoor Touch Doorbell Display (DND/MUR/Wait) | Indoor Guest Service Switch
Faceplate Finish Crystal White Glass | Pitch Black Glass | Brushed Stainless Steel | Matte Anodized Black
Intelligent Energy Optimization and Refined Guestroom Hospitality
The Smart Laffey Hotel RFID / Mifare Keycard Energy-Saving Switch & Outdoor Service Signage Series is engineered to meet the operational demands of luxury hotels, boutique resorts, and modern commercial apartments. By ensuring that main lighting, television power, and air conditioning circuits engage only when an authorized guest keycard is present, the series reduces unnecessary HVAC and electrical load overheads.
The system extends to the hotel corridor with matching outdoor capacitive touch panels featuring room numbering, capacitive capacitive doorbell triggers, and backlit status icons for Do Not Disturb (DND), Make Up Room (MUR), and Please Wait. When DND is selected by the guest inside the room, the outdoor touch doorbell automatically deactivates to prevent unwanted disturbance.
Key Features & Hospitality Infrastructure
- Encrypted IC Card Reading: Advanced Mifare variants decode room-specific sector data, ensuring only valid hotel keycards activate electrical power.
- Touch Capacitive Outdoor Signage: High-visibility LED backlit icons displaying room numbers and real-time room status to housekeepers.
- Safety Exit Power Delay: Built-in micro-controller maintains active power for 15–30 seconds after card removal, allowing safe departure from dark rooms.
- RCU System Integration: Low-voltage bus options (RS485/Dry Contact) send real-time room occupancy state directly to front-desk management software.
- High-Current Relay Output: Built-in 30A high-power relay safely manages inductive air conditioner startup loads and main lighting sub-circuits.
- Flame-Retardant Polymer Substructure: Built on UL94-V0 fire-retardant PC rear casing for safety and thermal isolation.
Technical Specifications
| Parameter | Specification Detail |
|---|---|
| Product Series | Smart Laffey Hotel Guestroom Automation Series |
| Faceplate Materials | 2.5D Tempered Safety Glass / Anodized Aluminum / Stainless Steel |
| Sub-Base Housing | Flame-Retardant Polycarbonate (UL94-V0) |
| Operating Voltage | High Voltage: 110V – 240V AC, 50/60Hz \| Low Voltage: 12V – 24V DC (RCU / RS485) |
| Keycard Relay Capacity | 30A High-Load Relay (Max Load: 6600W) |
| Card Recognition Types | Mifare-1 (13.56MHz), RFID (125kHz), or Universal IC Card |
| Off Delay Time | 15 to 30 Seconds (Factory Calibrated) |
| Outdoor Panel Functions | Capacitive Doorbell Switch, Room Number Display, DND / MUR / Please Wait Indicators |
| Standby Power Consumption | < 0.5W |
| Operating Temperature | -10°C to +50°C |
| Panel Dimensions | 86mm x 86mm x 35mm (Fits Standard 86-Type Wall Box) |
| Certifications | CE, CB, RoHS, SASO, ISO9001 |
Installation & System Configuration Guidelines
System Setup Note: For Mifare encrypted models, supply a sample room keycard programmed by your hotel lock management software (e.g., VingCard, Salto, Dormakaba, Orbita) to factory-calibrate the frequency decoder prior to mass installation. Ensure high-voltage power lines feed through an appropriate main contactor or the built-in 30A relay module. Route low-voltage status signal wires separately from AC mains to prevent RCU communication cross-talk.
