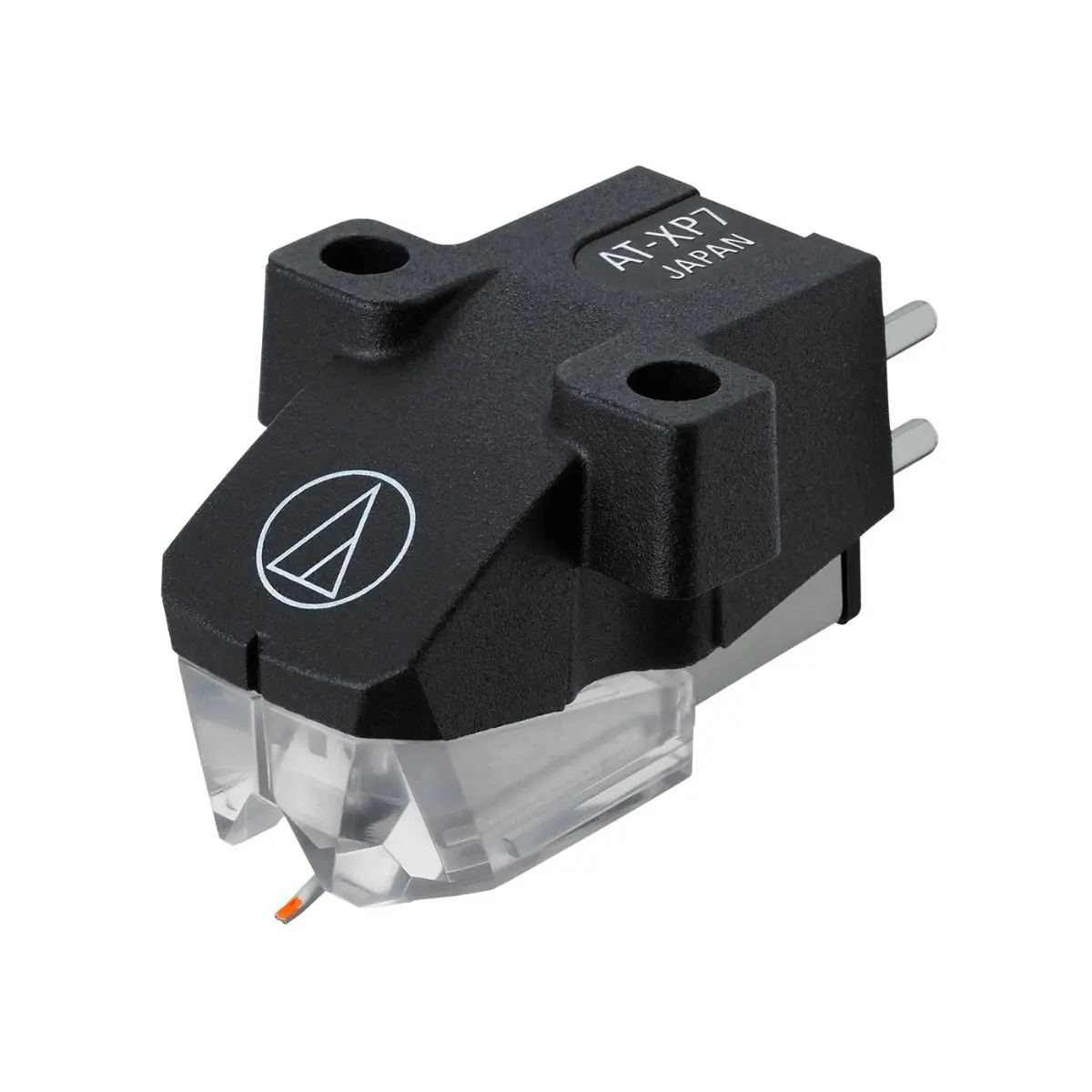

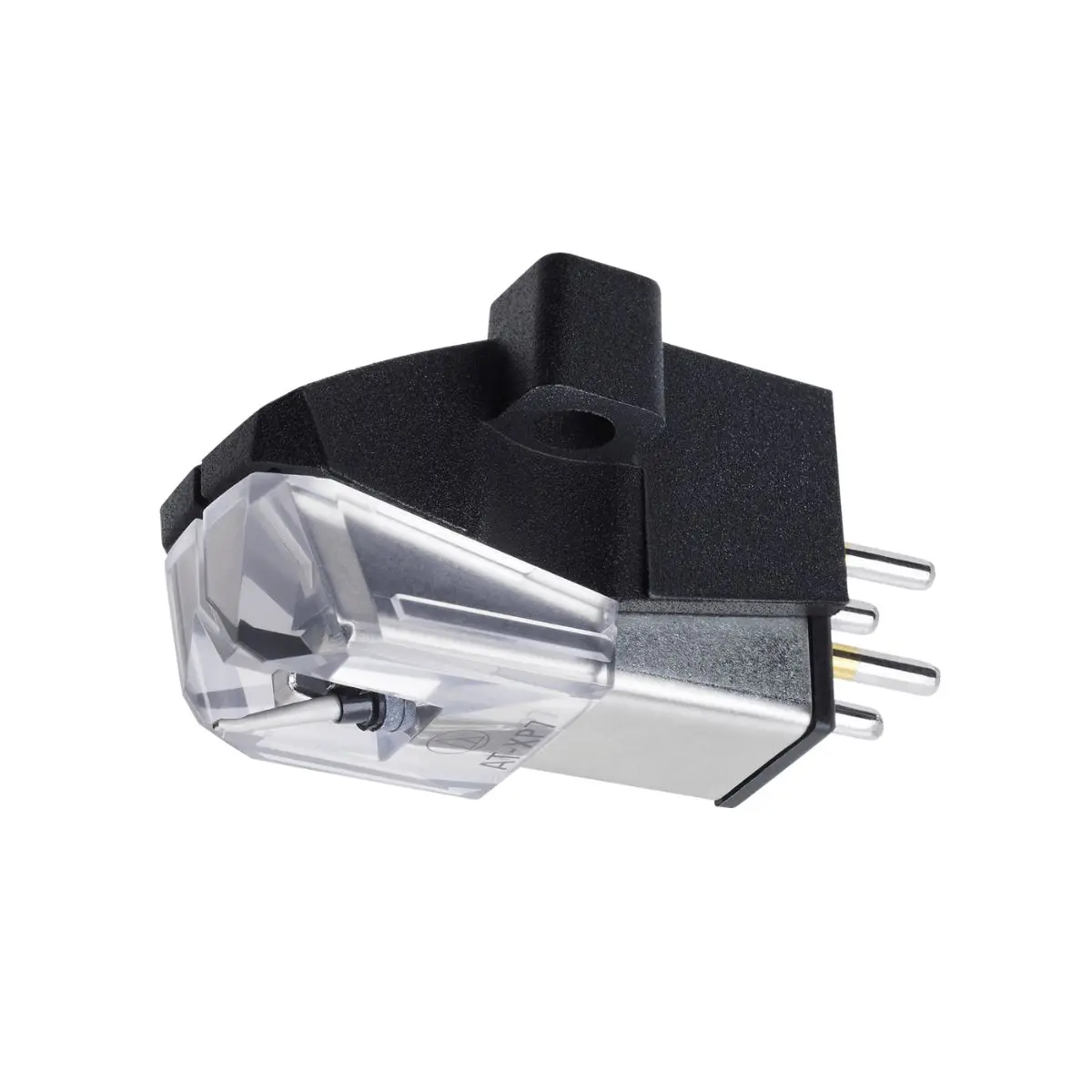

Audio Technica – AT-XP7 Cartridge
د.إ 599.00 د.إ 570.00
Let’s Customize Your Order Live!
Because our professional AV, cinema, and automation systems often require precise technical configurations and specialized handling, we manage all orders personally via WhatsApp.
How it works:
💬 Confirm Details: A technical expert will instantly verify your product specifications.
🚚 Arrange Delivery: We’ll calculate the safest, fastest shipping options for your location.
💳 Secure Payment: You will receive a private, secure payment link right inside the chat.
👉 Tap Here to Chat & Complete Order

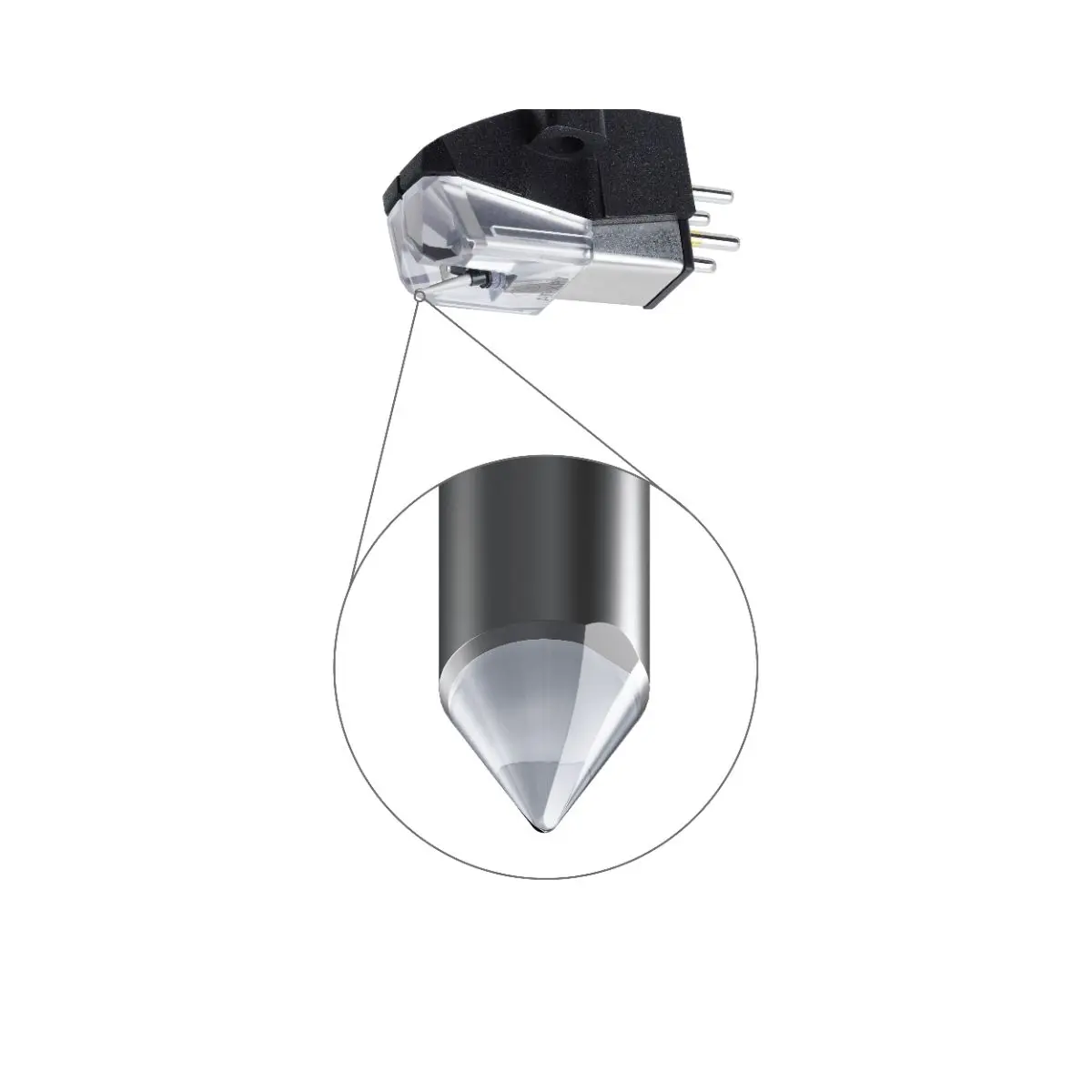

- The AT-XP7 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 6.0 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
- The AT-XP7 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 6.0 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
The AT-XP7 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 6.0 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
Frequency Response 20 – 20,000 Hz
Channel Separation 22 dB at 1kHz
Vertical Tracking Angle 20°
Vertical Tracking Force 2.0 to 4.0 g (standard 3g)
Stylus Construction Bonded Round Shank
Recommended Load Impedance 47,000 ohms
Coil Inductance 1.0 H (1 kHz)
Output Voltage 6.0 mV (mV at 1 kHz, 5 cm/sec)
Output Channel Balance Output Channel Balance
Stylus Shape Elliptical
Cantilever Aluminium tapered Pipe
Static Compliance 20 x 10-6 cm/dyne
Dynamic Compliance 8.0×10-6cm/dyne (100Hz)
Mounting Half-inch
Dimensions H17.2×W17.8×D28.3mm

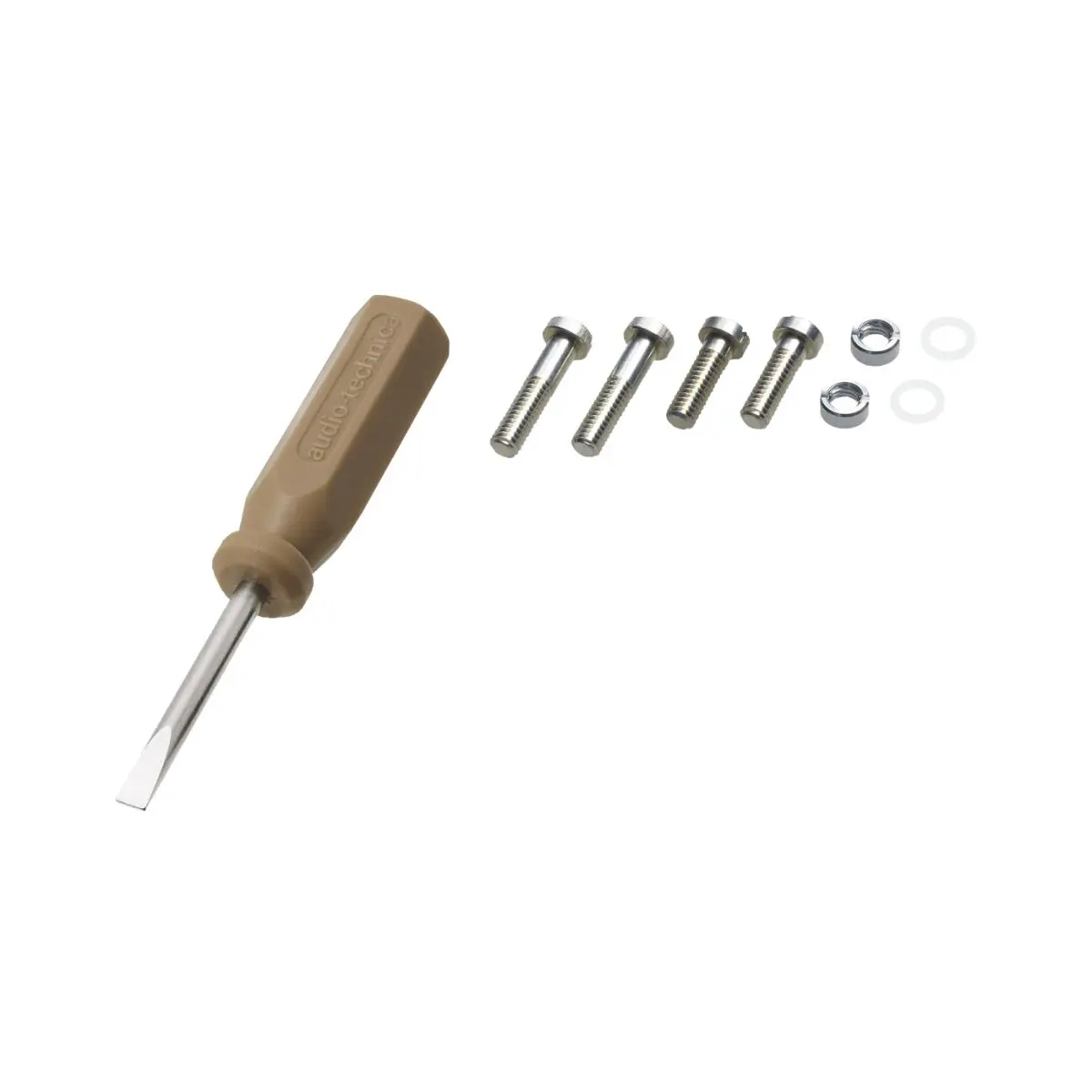

Accessories Included Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2, Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1
Recommended Load Capacitance 100-200 pF
Replacement Stylus ATN-XP7
Stylus Size 0.3 x 0.7 mil
Type VM Dual Magnet
Weight 6.2g
