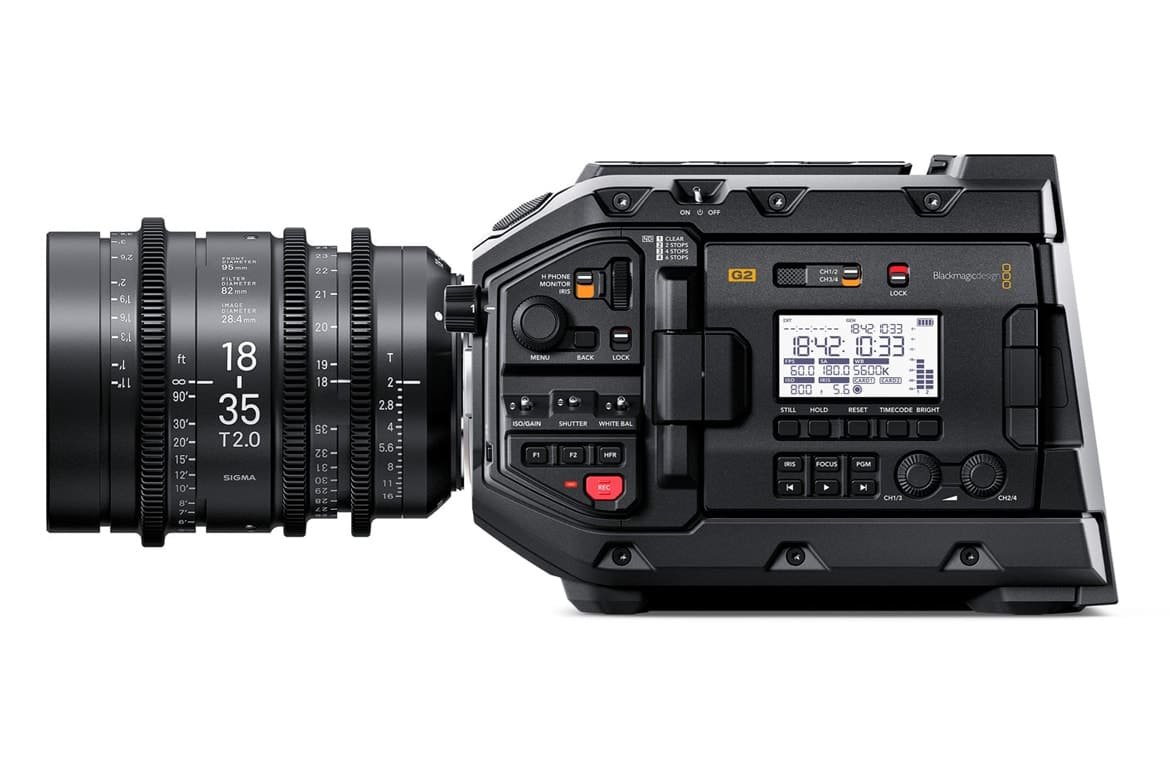

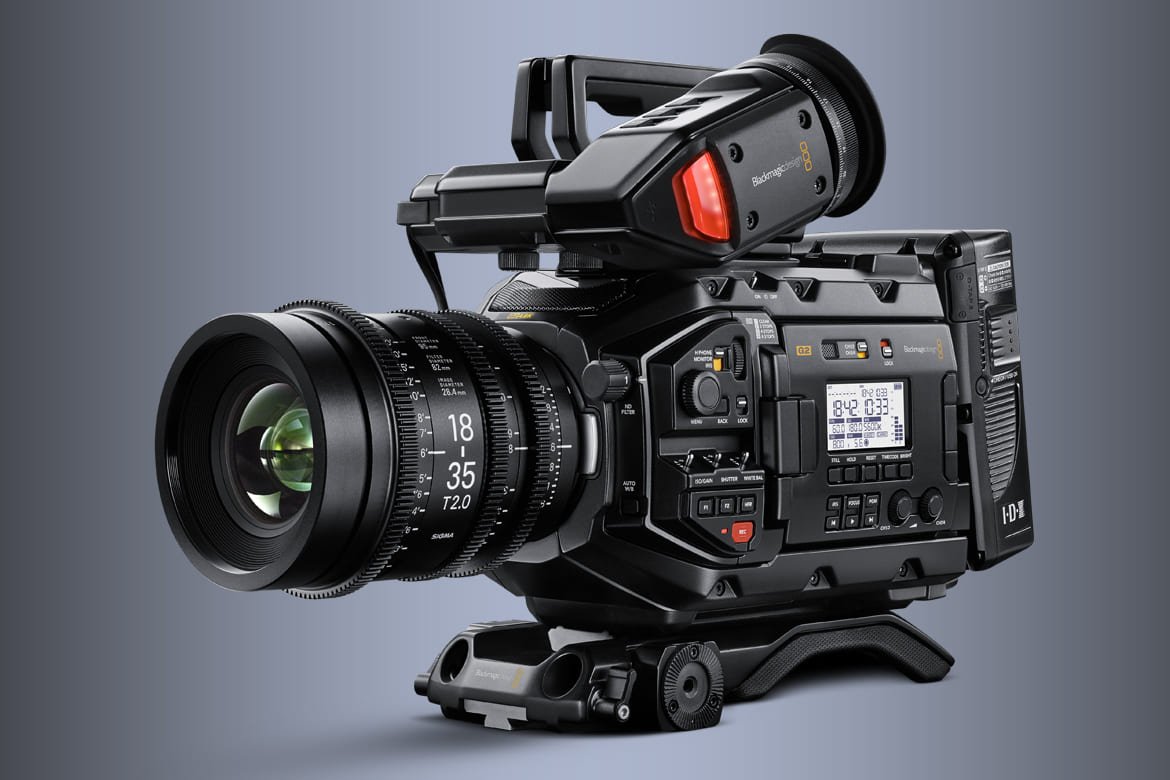

Blackmagic URSA Mini Pro 4.6K G2
Available on backorder
URSA Mini Pro 4.6K G2, is a professional digital film camera that combines incredible 4.6K image quality with the features and controls of a traditional broadcast camera! The second generation URSA Mini Pro features fully redesigned electronics and a new Super 35mm 4.6K HDR image sensor that combine to give you much higher frame rate shooting. You also get built in ND filters, an interchangeable lens mount, Blackmagic RAW support, and both dual CFast and SD UHS‑II card recorders for capturing images at up to 300 frames per second! There’s even a USB‑C expansion port that lets you record directly to flash drives or SSD disks for even longer recording times! URSA Mini Pro 4.6K G2 features a massive number of controls intuitively positioned on the side of the camera so you can adjust most settings by feel, without ever having to take your eyes off the action. URSA Mini Pro is lightweight and comfortable enough to use all day, has controls that are extremely fast to use, and image quality that’s far superior to broadcast cameras costing ten times more!
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Specification
Overview
Processor
Display
RAM
Storage
Video Card
Connectivity
Features
Battery
General
Description
| Camera Features | |
| Effective Sensor Size | 25.34mm x 14.25mm (Super35) |
| Lens Mount | EF mount included. Interchangeable with optional PL, B4 and F lens mounts. |
| Lens Control | Electronic control via EF mount pins or 12pin broadcast connector for compatible lenses |
| Dynamic Range | 15 Stops. |
| Shooting Resolutions | 4608 x 2592, 4608 x 1920 (4.6K 2.40:1), 4096 x 2304 (4K 16:9), 4096 x 2160 (4K DCI), 3840 x 2160 (Ultra HD), 3072 x 2560 (3K Anamorphic), 2048 x 1152 (2K 16:9), 2048 x 1080 (2K DCI), 1920 x 1080 |
| Frame Rates | Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. |
| High Speed Frame Rates | Blackmagic RAW 8:1 4.6K Full – Up to 120 fps UHD Windowed – Up to 150 fps HD Windowed – Up to 300 fps ProRes 422 HQ |
| Built in ND Filters | Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop ND filters. |
| Focus | Focus button turns on peaking, auto focus available using compatible lenses. |
| Iris Control | Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode. |
| Screen Dimensions | 4 inch |
| Screen Type | LCD capacitive touchscreen. |
| Metadata Support | Automatically populated lens data from electronic EF, B4 and i/Technology compatible PL lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. |
| Controls | Touchscreen menus on 4 inch screen. Push buttons for other controls. 2 assignable shortcut keys. |
| Timecode Clock | Highly accurate timecode clock. Less than 1 frame drift every 8 hours. |
| Connections | |
| Total Video Inputs | 1 x SDI |
| Total Video Outputs | 1 x SDI, 1 x SDI Monitoring. |
| SDI Rates | 1.5G, 3G, 6G, 12G. |
| Analog Audio Inputs | 2 x XLR analog switchable between mic, line and AES audio. Phantom power support. |
| Analog Audio Outputs | 1 x 3.5mm headphone jack, supports iPhone microphone for talkback. |
| Reference Inputs | Tri-Sync/Black Burst/Timecode |
| Remote Control | 2 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses. |
| Computer Interface | USB Type-C for software updates. |
| Audio | |
| Microphone | Integrated stereo microphone. |
| Built in Speaker | 1 x mono speaker. |
| Standards | |
| SD Video Standards | None |
| HD Video Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI Compliance | SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1 |
| SDI Audio Sampling | 48 kHz and 24 bit |
| Media | |
| Media | 2 x CFast 2.0 card slots, 2 x SD UHS-II card slots, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and ProRes recording. |
| Media Format | Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
| Supported Codecs | |
| Codecs | Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q5, Apple ProRes XQ QuickTime, Apple ProRes 444 QuickTime, Apple ProRes 422 HQ QuickTime, Apple ProRes 422 QuickTime, Apple ProRes 422 HQ QuickTime, Apple ProRes 422 LT QuickTime and Apple ProRes 422 Proxy QuickTime. |
| Control | |
| External Control | Blackmagic SDI Control Protocol, iPad control, Bluetooth control, 2 x 2.5mm LANC for lens and record control. |
| Color Corrector | |
| Color Corrector | DaVinci YRGB. |
| Talkback and Tally | |
| Talkback | SDI Channels 15/16 and iPhone headset. |
| Live Tally Indicator | Tally on LCD, URSA Viewfinder and URSA Studio Viewfinder. |
| Storage Features | |
| Storage Type | 2 x CFast 2.0 2 x SD UHS-II cards 1 x high speed USB-C expansion port for external media. |
| Storage Rates | Storage rates based on 30 frames per second.
4608 x 2592 3840 x 2160 1920 x 1080 |
| Recording Formats | Blackmagic RAW Q0, Q5, 3:1, 5:1, 8:1 and 12:1 at 4608 x 2592, 4608 x 1920, 4096 x 2304, 4096 x 2160, 3840 x 2160, 3072 x 2560, 2048 x 1152, 2048 x 1080 and 1920 x 1080 with film, extended video or video dynamic range.
Lossless CinemaDNG RAW, RAW 3:1 and RAW 4:1 at 4608 x 2592, 4608 x 1920, 4096 x 2304, 4096 x 2160, 3840 x 2160, 3072 x 2560, 2048 x 1152, 2048 x 1080 and 1920 x 1080 with film dynamic range. ProRes at 4608 x 2592, 4608 x 1920, 4096 x 2304, 4096 x 2160, 3840 x 2160, 3072 x 2560, 2048 x 1152, 2048 x 1080 and 1920 x 1080 with film, extended video or video dynamic range. |
| Software | |
| Software Included | URSA Mini Operating System DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK |
| Operating Systems | |
| Mac | Mac 10.13 High Sierra, Mac 10.14 Mojave or later. |
| Windows | Windows 8.1 or Windows 10. |
| Power Requirements | |
| Power Supply | 1 x External 12V power supply. 12 pin Molex connector on rear battery plate. |
| External Power Input | 1 x 4 pin XLR port for external power or battery use. 1 x 12 pin molex connector on rear battery plate. Custom V-mount battery plate with D-tap +12V regulated output from camera. |
| Power | Rear camera mount compatible with industry standard V-mount or gold mount battery plates. |
| Physical Specifications | |
| Width | 5.92 in |
| Height | 5.78 in |
| Depth | 8.23 in |
| Weight | 5.07 lb |
| Environmental Specifications | |
| Operating Temperature | 5° C to 50° C (41° – 122°F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
