Blackmagic URSA Viewfinder
Let’s Customize Your Order Live!
Because our professional AV, cinema, and automation systems often require precise technical configurations and specialized handling, we manage all orders personally via WhatsApp.
How it works:
💬 Confirm Details: A technical expert will instantly verify your product specifications.
🚚 Arrange Delivery: We’ll calculate the safest, fastest shipping options for your location.
💳 Secure Payment: You will receive a private, secure payment link right inside the chat.
👉 Tap Here to Chat & Complete Order
Available on backorder

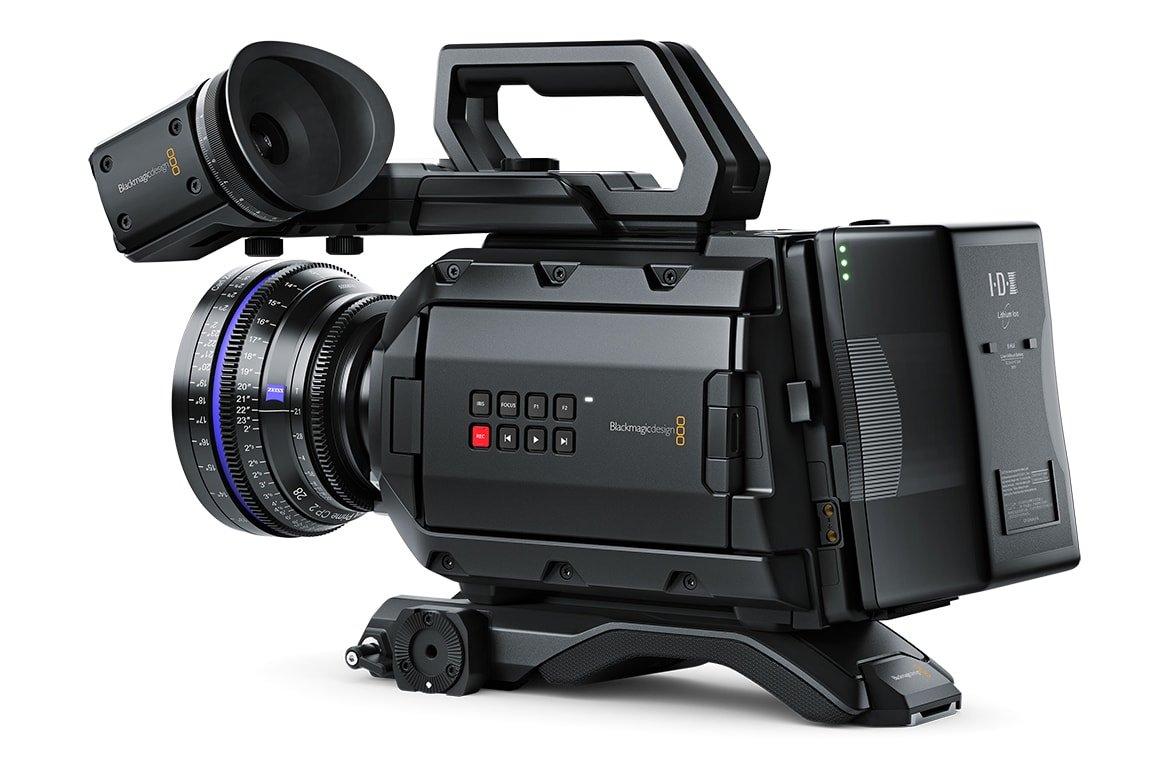

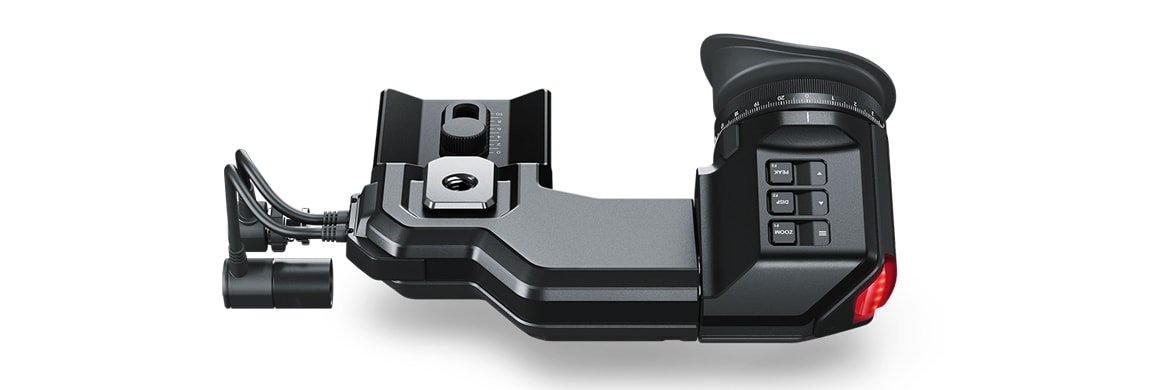

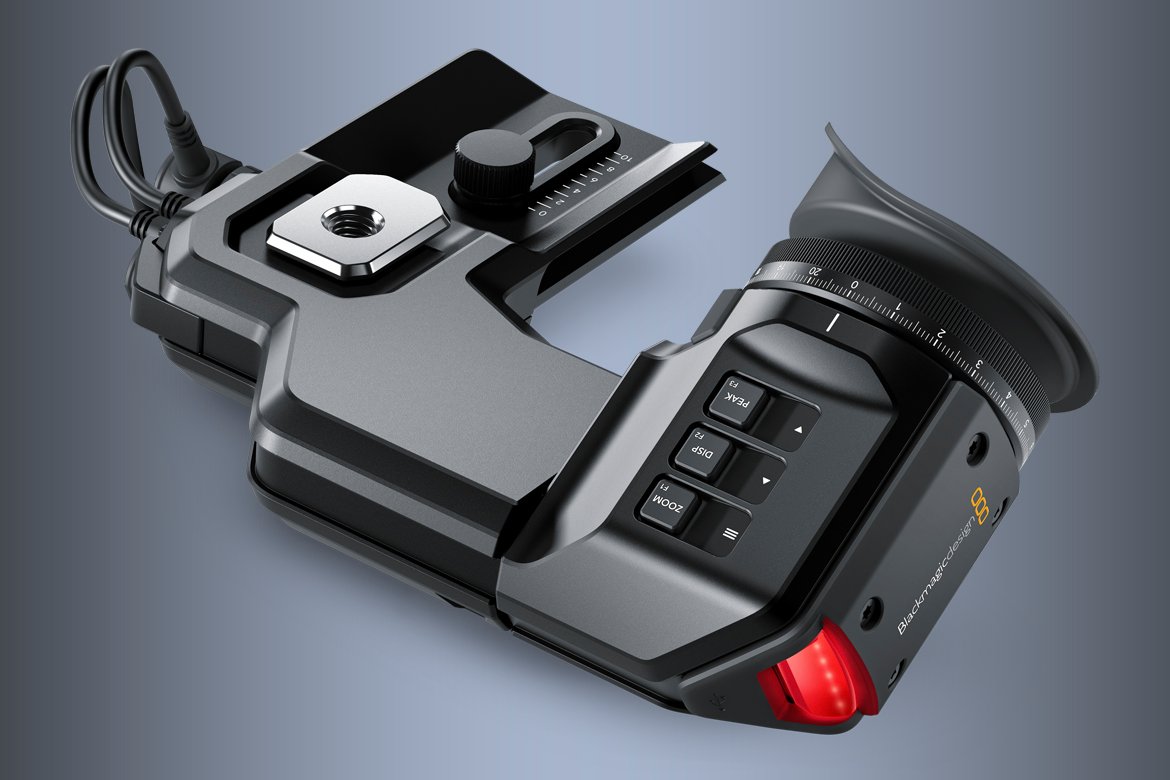

The Blackmagic URSA Viewfinder is the perfect accessory to make outdoors and handheld shooting with your URSA or URSA Mini digital film camera easy. You get an extremely high quality viewfinder with 1080HD resolution display, true precision glass optics, built in tally light and built in menus, overlays and even a digtal focus chart!
| Connections | |
| SDI Video Inputs | 1 x 3G-SDI BNC |
| Power Input | 1 x 4 pin XLR 12V |
| Computer Interface | USB 2.0 Mini-B port for software updates |
| Features | |
| Display Resolution | Full 1920 x 1080 |
| Frame Rate | Up to 60fps |
| Display Type | OLED |
| Display Pixels | 6.22 Million Pixels |
| Color Precision | 24 bit RGB, 16.7 million colors |
| Focus | 4 Element diopter |
| Diopter Range | -4 to +3 |
| Controls | Buttons for settings, short cut features and navigating menus |
| Overlays | Built in overlay display processor and top mounted buttons |
| Eyepiece | Can be tilted vertically and extended for left or right eye use |
| Tally | LED tally light. |
| Mounting Options | Camera mount with adjustment |
| Metadata Support | Detects camera information embedded in the SDI signal from URSA, URSA Mini and Blackmagic 3G-SDI Shield for Arduino |
| Physical Specifications | |
| Width | 209 mm |
| Height | 68 mm |
| Depth | 159.6 mm |
| Weight | 695 g |
| Environmental Specifications | |
| Operating Temperature | 5° C to 50° C (41° – 122°F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
