Plena Voice Alarm Router Product Features Expand the voice alarm system with six zones EN 54?16 certified and EN 60849…

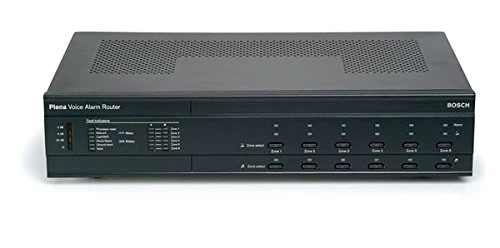

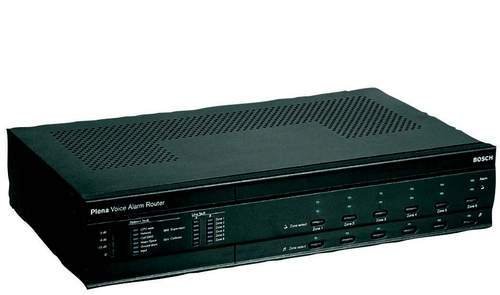

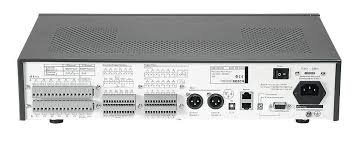

Plena Voice Alarm Router
Product Features
- Expand the voice alarm system with six zones
- EN 54?16 certified and EN 60849 compliant
- 12 additional input contacts
- Six volume override output contacts
- Supervision within the Plena Voice Alarm System
Technical Specification
| Main Power Supply | |
| Voltage | 230/115 VAC, ±10%, 50/60 Hz |
| Inrush current | 1.5 A @ 230 VAC / 3 A @ 115 VAC |
| Max power consumption | 50 VA |
| Trigger Inputs | 12 x (6 EMG, 6 business) |
| Connectors | MC1,5 / 14-ST-3,5 |
| Activation | Programmable |
| Supervision | On EMG inputs, programmable |
| Supervision method | Series / parallel resistor |
| 100 V input | |
| Connector | MSTB 2,5 /16-ST |
| Amp 1 | 100 V / 70 V / 0 V |
| Amp 2 | 100 V / 0 V |
| Power handling capacity | 1000 W |
| Loudspeaker outputs | 12 x (2 x 6 zones) |
| Connectors | MSTB 2,5 /16-ST, floating |
| 100 V output | 700 W rated per zone |
| Volume override types | 3-wire, 4-wire (24 V), 4-wire failsafe |
| Output Contacts | |
| Connector | MC 1,5/14-ST-3,5 |
| Rating | 250 V, 7A, voltage free |
| General purpose relays (2x) | NO / COM |
