BOSCH LBC3432/03 Sound Projector 20W Metal Unidirectional
د.إ 599.00 د.إ 569.00
BOSCH PLE-1MA120-EU Plena Mixer Amplifier
د.إ 1,799.00 د.إ 1,663.00
-6%
BOSCH PLE-1MA060-EU Plena Mixer Amplifier
د.إ 1,319.00 د.إ 1,241.00
Let’s Customize Your Order Live!
Because our professional AV, cinema, and automation systems often require precise technical configurations and specialized handling, we manage all orders personally via WhatsApp.
How it works:
💬 Confirm Details: A technical expert will instantly verify your product specifications.
🚚 Arrange Delivery: We’ll calculate the safest, fastest shipping options for your location.
💳 Secure Payment: You will receive a private, secure payment link right inside the chat.
👉 Tap Here to Chat & Complete Order
Plena Mixer Amplifier Product Features 6 microphone/line inputs plus 3 music source inputs 100 V, telephone and a call station…

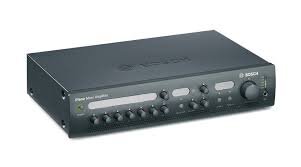

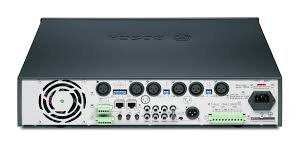

Plena Mixer Amplifier
Product Features
- 6 microphone/line inputs plus 3 music source inputs
- 100 V, telephone and a call station input with priority & VOX
- 2 zones and announcement only output
- Voice activated emergency override
- High output power 120 and 240 Watts
Technical Specification
| Mains power supply | |
| Voltage | 230 VAC ±10%, 50/60 Hz (reduced power at lower mains or battery voltage) |
| Inrush current | 5 A |
| Power consumption | 200 VA |
| Performance | |
| Frequency response | 50 Hz to 20 kHz (+1/‑3 dB @ ‑10 dB ref. rated output) |
| Distortion | <1% @ rated output power, 1 kHz |
| Bass Control | Max -12/+12 dB (frequency is setting dependent) |
| Treble Control | Max -12/+12 dB (frequency is setting dependent) |
| RJ-45 input | 1x |
| Wall panel input | For PLE‑WP3S2Z |
| Mic/Line input | 4x |
| Input 1 (Push-to-talk contact with ducking functionality) | 5‑pin Euro style, balanced, phantom 3‑pin XLR, balanced, phantom |
| Input 2-4 (VOX with ducking functionality on input 2) | 3‑pin XLR, balanced, phantom |
| Sensitivity | 1 mV (mic); 1 V (line) |
| Impedance | >1 kohm (mic); >5 kohm (line) |
| Dynamic range | 93 dB |
| S/N (flat at max volume) | >63 dB (mic); >70 dB (line) |
| S/N (flat at min volume/muted) | >75 dB |
| CMRR (mic) | >40 dB (50 Hz to 20 kHz) |
| Headroom | >17 dB |
| Speech filter | -3 dB @ 315 Hz, high-pass, 6 dB/oct |
| Phantom power supply | 16 V via 1.2 kohm (mic) |
| Music input | 1x |
| Connector | 7‑pin Euro style pluggable screw connector |
| Sensitivity Tel | 1 V maximum |
| Sensitivity 100V | 100 V maximum |
| Impedance | >10 kohm |
| S/N (flat at max volume) | >65 dB |
| VOX | Threshold 50 mV; attack time 150 ms; release time 2 s |
| Master/music output | 1x |
| Connector | 3-pin XLR, balanced |
| Nominal level | 1 V |
| Impedance | <100 ohm |
| Loudspeaker output 100 V | |
| Connector | Euro style pluggable screw terminal, floating |
| Max / rated PLE-1MA060 | 90 W / 60 W |
| Loudspeaker output 4 ohm | |
| Connector | Euro style pluggable screw terminal, floating |
| PLE-1MA060-EU | 16 V (60 W) |
