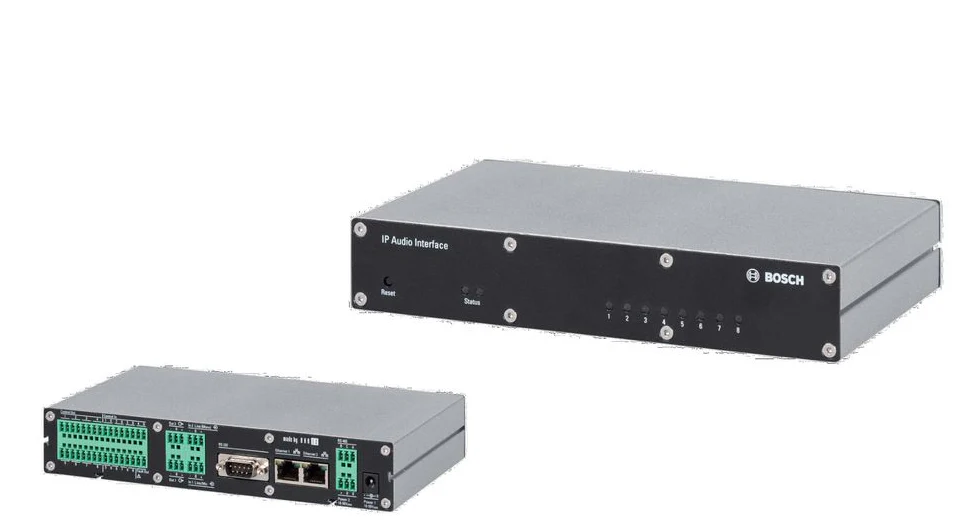

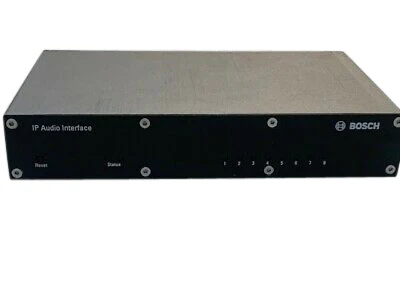

BOSCH PRS-1AIP1- IP Audio Interface
د.إ 7,624.00
Let’s Customize Your Order Live!
Because our professional AV, cinema, and automation systems often require precise technical configurations and specialized handling, we manage all orders personally via WhatsApp.
How it works:
💬 Confirm Details: A technical expert will instantly verify your product specifications.
🚚 Arrange Delivery: We’ll calculate the safest, fastest shipping options for your location.
💳 Secure Payment: You will receive a private, secure payment link right inside the chat.
👉 Tap Here to Chat & Complete Order
IP Audio Interface System Product Features Digital audio transmission between public address systems on remote locations Designed to comply to…
IP Audio Interface System
Product Features
- Digital audio transmission between public address systems on remote locations
- Designed to comply to international standards for emergency sound systems
- Supervised control inputs and control outputs
- A single unit can act as transmitter, receiver or both
- Installation and configuration via standard web browser
- Support for re‑broadcasting to extend the system size
- Built‑in configurable audio delay
Technical Specification
| Electrical | |
| External power supply 1 | 18 to 56 VDC |
| External power supply 2 | 18 to 56 VDC |
| Power consumption | 8 W max |
| Microphone input (Audio input 1) | |
| Sensitivity | -48.5 to -26 dBV |
| Impedance | 1360 ohm |
| Frequency response | 100 Hz to 15 kHz |
| S/N | >60 dB |
| Supervision detection | Electret: 0.4 – 5 mA Dynamic: 120 – 1300 ohm |
| Line Inputs (Audio input 1 and 2) | |
| Sensitivity | -16.5 to +6 dBV |
| Impedance | 22 kohm |
| Frequency response | 20 Hz to 15 kHz |
| S/N | >70 dB |
| Pilot tone detection level (Input 2 only) | -30 dBV |
| Line outputs (Audio output 1 and 2) | |
| Level | 6 dBV max |
| Pilot tone level (Output 2 only) | -20 dBV (20 kHz) |
| Audio formats | |
| MPEG 1‑layer 3 (MP3) | 32, 44.1 and 48 kHz sample rate Encoding up to 192 kbps VBR Decoding up to 320 kbps (Stereo) |
| MPEG 1‑layer 2 | 16, 22.05 and 24 kHz sample rate |
| G.711 | uLaw, aLaw at 8, 24 or 32 kHz sample rate |
| PCM | 16‑bit at 8, 24 or 32 kHz sample rate |
| Control inputs | 8x |
| Connectors | Removable screw terminals |
| Operation | Closing contact (with supervision) |
| Control / fault outputs | 8 x / 1 x |
| Connectors | Removable screw terminals |
| Operation | Make contact (SPST, voltage free) |
| Rating | 24 V, 0.5 A |
| Ethernet 1 and 2 | |
| Connector | Dual RJ45, DTE-pinout |
| Standard | 802.3i / 802.3u |
| Speed | 10 / 100 Mbps, auto-negotiation |
| Flow | Full / half-duplex, auto-negotiation |
| Protocol | TCP/IP, UDP, RTP, SIP, IGMP, DHCP, SNMP |
| RS 232 / RS 485 | |
| Connector RS 232 | 9‑pin Sub‑D male, DTE‑pinout |
| Connector RS 485 | Removable screw terminals |
| Pinout | 300 to 115.200 Baud |
| Setting (default) | 9600, 8, N, 1 |
