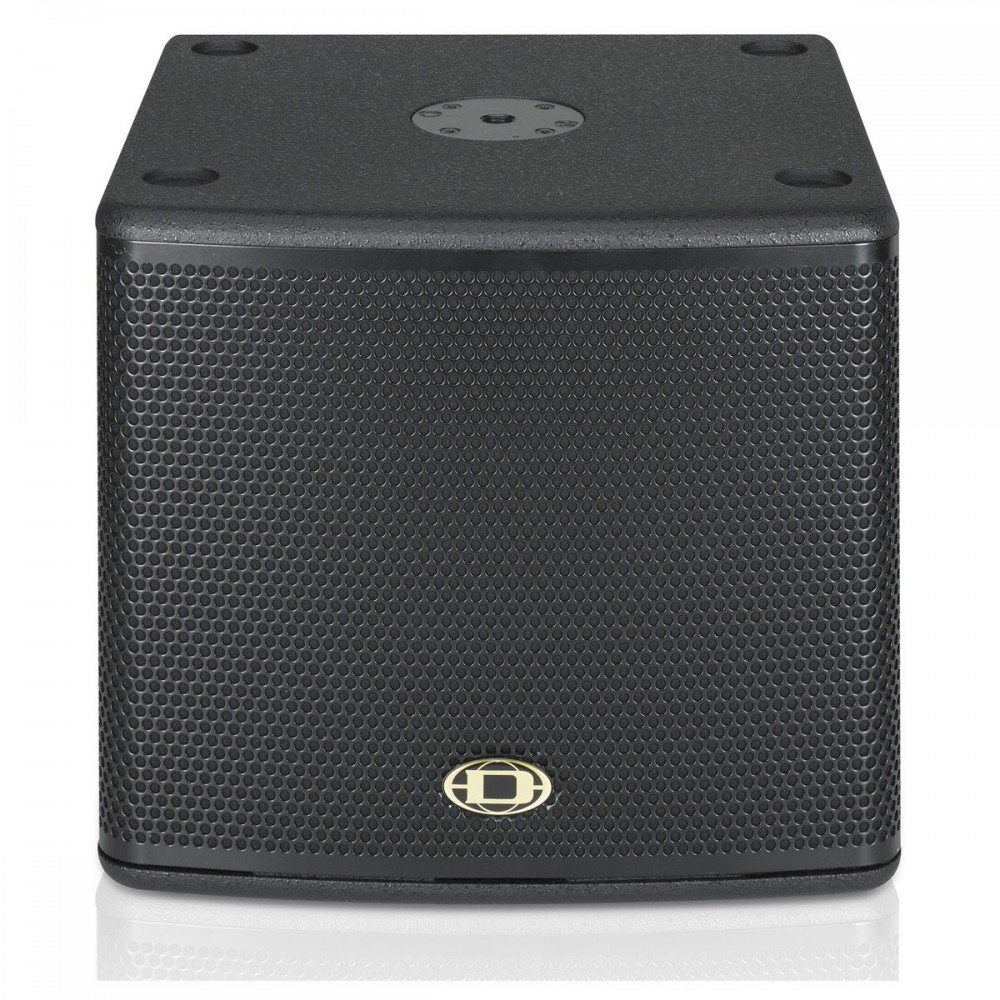

Dynacord Sub 112 Direct radiating cabinet

Dynacord Sub 112 Direct radiating cabinet is a vented, equipped with the high‑power Dynacord DND12S400 neodymium transducer. The conical vent system shows significantly less distortion and lower air noise at low frequencies than common circular vent openings. DYNACORD´s SUB 112 is a vented, direct radiating cabinet, equipped with the high-power DYNACORD DND12S400 neodymium transducer. The conical vent system shows significantly less distortion and lower air noise at low frequencies than common circular vent openings. The SUB 112 contains a passive filter, 6 dB/oct., that suppresses high frequencies. Appropriate full-range cabinets, e.g. DYNACORD’s D 8 can therefore be directly connected in parallel to the SUB 112 if an extended bass reproduction is required. You just have to connect the SUB 112 and the D 8 with a regular speakON cable in parallel. The SUB 112 cabinet is made of 15 mm birch plywood. All corner joints and braces are grooved and glued. The cabinet’s surface is painted with a 2-K lacquer finish. The powder coated steel grille protects the DND12S400 woofer against damage during transport and bad environmental conditions. The connector panel uses two 4-pole speakON connectors (INPUT/ THRU) for a safe connection and easy daisy-chaining to other cabinets. The pin assignment is 1+/1-. Pins 2+ and 2- are also connected between the two speakON connectors. A pole-mount flange allows easy speakeron-a-stick applications. Please always take care that every speaker stack has been mechanically secured against accidental falling down. Please always consult a certified structural engineer for correct and safe setup methods. The cabinet is equipped with four large rubber feet.
Two handles allow easy and safe transport. A protective cover is available as an optional accessory

For further information, kindly check the data sheet link Sub 112
