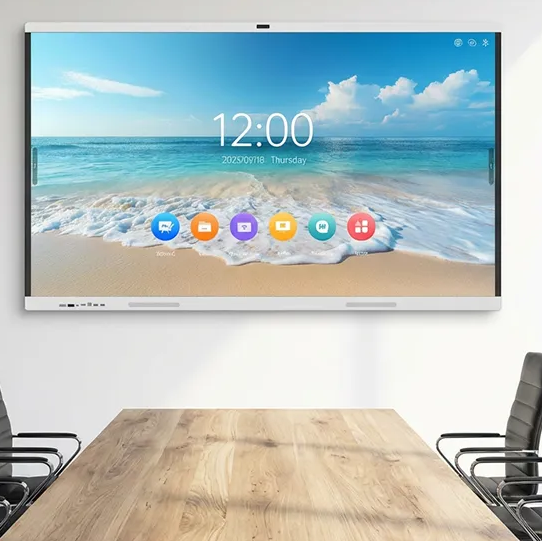

Interactive Panel with Google EDLA, 4K Ultra HD, Optical Bonding, Android 14, All-in-One Smart Collaboration Display for Education & Enterprise
Let’s Customize Your Order Live!
Because our professional AV, cinema, and automation systems often require precise technical configurations and specialized handling, we manage all orders personally via WhatsApp.
How it works:
💬 Confirm Details: A technical expert will instantly verify your product specifications.
🚚 Arrange Delivery: We’ll calculate the safest, fastest shipping options for your location.
💳 Secure Payment: You will receive a private, secure payment link right inside the chat.
👉 Tap Here to Chat & Complete Order
Product Description
Product advantage:
Google EDLA certification(OPTIONAL).
•Zero gap Bonding technology,low parallax writing and wider viewing angles
• 3.2mm anti-glare toughened glass with high haze OC for clearer display against ambient light interference
• Light-sensitive brightness adjustment and DC dimming support (de-flashing) for a more eye-protection display
• 4K Ultra HD display ,support full channel 4K UI display
• Front Type C*2+USB 2.0 port*1+USB3.0*4 + HDMI (HDMI…) 2.1)*3+Touch USB*3, supports switching with channels
• Support for Wireless projection
• ±1mm High precision infrared touch control for smooth writing
• Supports dual pens and dual colour displays for easy multi-person collaboration
• Wireless: Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax
• One network support, Android and OPS
• Support network sharing
• Split screen ,parallel tasks and wider scenes
• Eye protection, lock screen, touch lock and other tools.
| Panel | LCD Size | 65 inches | |
| Type of Panel | IPS/VA | ||
| Respond Time | 8ms | ||
| Visual Ratio | 16:9 | ||
| Resolution | 3840（H）×2160（V） | ||
| Pixel pitch | 0.372×0.372mm | ||
| Frequency | 60Hz | ||
| Display Colors | 8bit | ||
| Color saturability | 72% | ||
| Contrast ration(Typ) | 5000:1 | ||
| Viewing Angle | 178°(H/V) | ||
| Light source | DLED | ||
| Brightness | 450cd/m2 | ||
| Life Span | ≥30000hrs | ||
|
Audio-video parameters |
Speaker | Soundtrack | 2.1 |
| Power | 2×20W | ||
| woofer | 20W(Optional) | ||
| Touch parameter | Touch specifications | Non-contact infrared sensing technology | |
| Support Systems | Windows10/Windows8/Windows7/WindowsXP/Android/Linux/MacOSX/Chrome | ||
| Touch Points | 50 Points Touch | ||
| Min.Identifier | 2mm | ||
| Input mode | Opaque object (finger, pen, etc) | ||
| Respond time | ≤10ms | ||
| Touch depth | ±1mm | ||
| Writing height | ≤3mm | ||
| Writing display | Single Stylus pen two-colour | ||
| Output coordinates | 32767 (W) ×32767(D) | ||
| System | System Version | Android 14.0 | |
| CPU | A76*4+A55*4 | ||
| GPU | ARM Mali-G610 * 4 | ||
| RAM | 8GB(Standard)/ 16GB(Optional)/ 32GB(Optional) | ||
| ROM | 128GB(Standard)/256GB(Optional)/512GB(Optional) | ||
| Wireless | Bluetooth | Version | 5.2 |
| Working Frequency | 2.4GHz | ||
| Working Distance | 0~10m | ||
| Wi-Fi | Version | IEEE802.11a/b/g/n/ac/ax | |
| Working Frequency | 2.4GHz/5GHz | ||
| Working Distance | 0~10m | ||
| I/O Interface | RJ45 IN | 1 (10/100M/1000M auto-identification and DHCP) | |
| RJ45 OUT | 1 | ||
| COAX | 1 | ||
| MIC IN | 1 | ||
| EARPHONE | 1 (130 ~ 150m Vrms) | ||
| PC AUDIO IN | 1 (Audio L/R Input Level 0.2V~2.0Vrms) | ||
| RS232 | 1 | ||
| VGA | 1 (480i, 480p, 720p, 1080i, 1080p) | ||
| TOUCH OUT (USB 3.0) | 3 | ||
| TYPE-C IN | 1 (USB 2.0/USB2.0 TOUCH OUT Max.3840X2160@60HzPD100W) | ||
| TYPE-C OUT | 1 (Max.3840X2160@60Hz USB2.0 OTG) | ||
| HDMI IN | 3 (HDMI 1.4/2.0,HDCP 1.4/2.2) | ||
| HDMI OUT | 1 (Max. 3840X2160@60Hz) | ||
| DP IN | 1 (DP 1.4b, HDCP 1.3/2.3) | ||
| Android USB 2.0 | 1 | ||
| Public USB 3.0 | 2 | ||
| TF-CARD | 1 | ||
| Front Interface | USB3.0 | 2 (PUBLIC) | |
| TOUCH USB | 1 (USB2.0） | ||
| HDMI IN | 1 (HDMI 2.0） | ||
| Type C | 1 (Full Functions) | ||
| Built-in camera and microphone(Optional) | 4K, 48 Megapixel High-Definition Camera
Echo Cancellation 115-Degree Ultra-Wide-Angle Camera 8 Array Microphones with 8-Meter Long-Distance Pickup Intelligent Voice Recognition Compatible with Android & Windows Systems AI Processing Chip |
||
| Power | Voltage | 100-240V～ 50/60Hz 3A | |
| Max. power consumption | ≤110W (including OPS: 145W) | ||
| Standby power consumption | ≤0.5W | ||
| Accessories | Power cord | ×1 | |
| Stylus pen | ×2 | ||
| Wall mount | ×1 | ||
| Operation manual | ×1 | ||
| Environment | Working temperature | 0℃~40℃ | |
| Working humidity | 10%~90%RH | ||
| Storage temperature | -20℃~60℃ | ||
| Storage humidity | 10%~90%RH | ||
| Working Elevation |
📷 Binocular Camera: 4K ultra-clear binocular camera, supports automatic viewfinder and face recognition. 🔄 Transfer Screen: One-click screen projection, support 9 devices to collaborate on the same screen and split screen. 🎬 4K Ultra HD Display: true 4K resolution, bright colors and sharp details. 📲 Scan Code to Share: Scan code to quickly share screen content to mobile phone/tablet. 🤖 Android 14 /OPS: Native Android 14 system, compatible with OPS computer modules. 💡 AI Software: Built-in AI assistant, voice control, image recognition and other intelligent functions. ✍️ Optical Bonding: Full bonding process, anti-glare, high light transmission, touch control without delay. 🌈 High Color Gamut: Wide color gamut coverage, restore true colors. 🔆 Local Dimming: Partition backlight adjustment, more natural light and dark contrast. 🔒 Safety Lock: Multiple safety Lock mechanisms to protect data and privacy.
🚀 Commercial Display OS 2.0 Smart Upgrade Function Upgradeable | Scenario-Based | Personalized | Safe Features can be upgraded: through OTA online updates, new features continue to be obtained. Scenario-based mode: preset ”teaching“, ”Conference“, ”Retail” and other modes, and switch with one click. Personalized settings: support user account login and save preferences. Security: Built-in firewall, rights management, remote locking and other functions.
✍️ High precision, no delay, touch response Support anti-accidental touch, 50-point touch, large and small pen recognition 40-point simultaneous touch, multiple people operate at the same time without conflict. Intelligent anti-accidental touch algorithm, palm resting does not affect writing. Support thickness nib recognition to simulate the effect of real chalk/marker pen. The response time is <10ms, and the writing is as smooth as paper. ✍️ EDLA certification With Google APP suite, genuine Google Store Officially authorize the Google service framework to ensure application compatibility. You can directly download genuine Android applications (such as Zoom, Teams, WPS, etc.). Receive regular Google security patches and system updates. Comply with international education/corporate procurement standards. <5000m |
||
