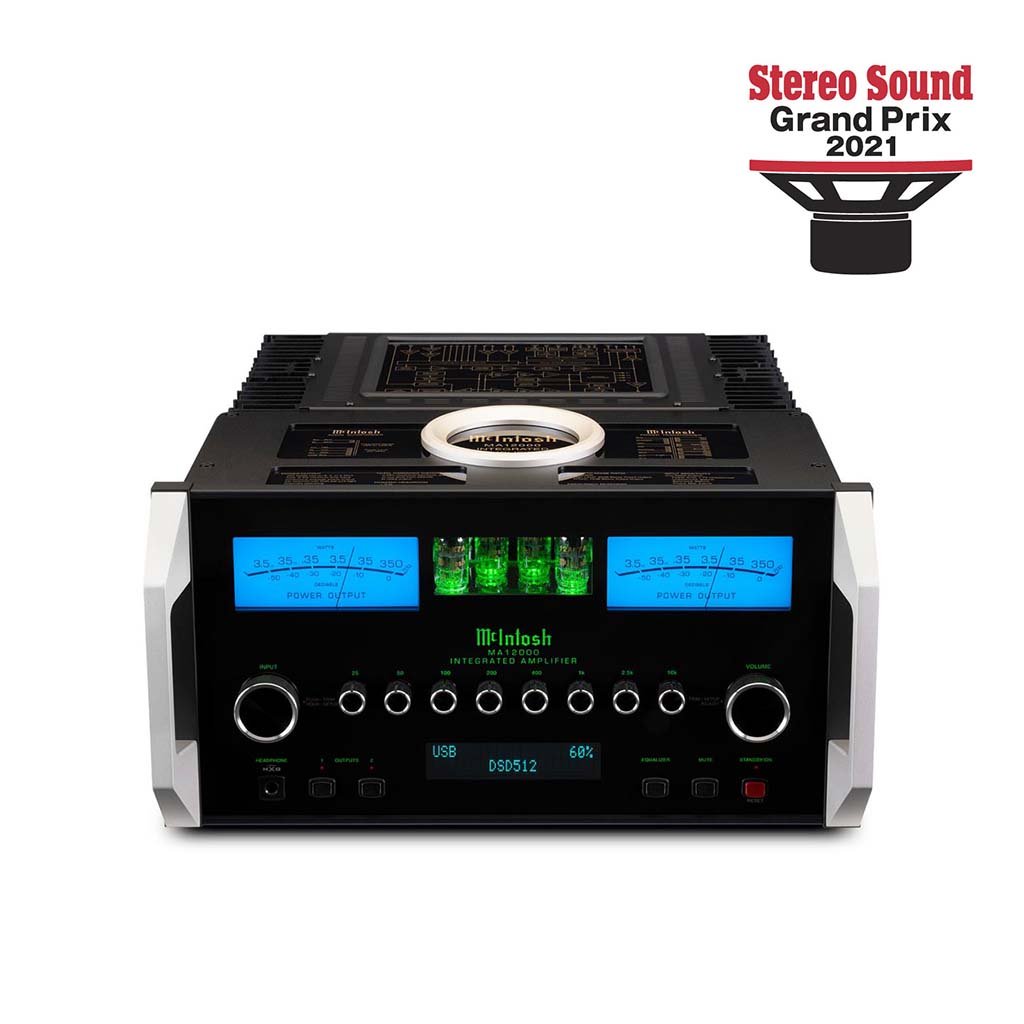

MA12000 Integrated Amplifier
د.إ 74,300.00
Let’s Customize Your Order Live!
Because our professional AV, cinema, and automation systems often require precise technical configurations and specialized handling, we manage all orders personally via WhatsApp.
How it works:
💬 Confirm Details: A technical expert will instantly verify your product specifications.
🚚 Arrange Delivery: We’ll calculate the safest, fastest shipping options for your location.
💳 Secure Payment: You will receive a private, secure payment link right inside the chat.
👉 Tap Here to Chat & Complete Order

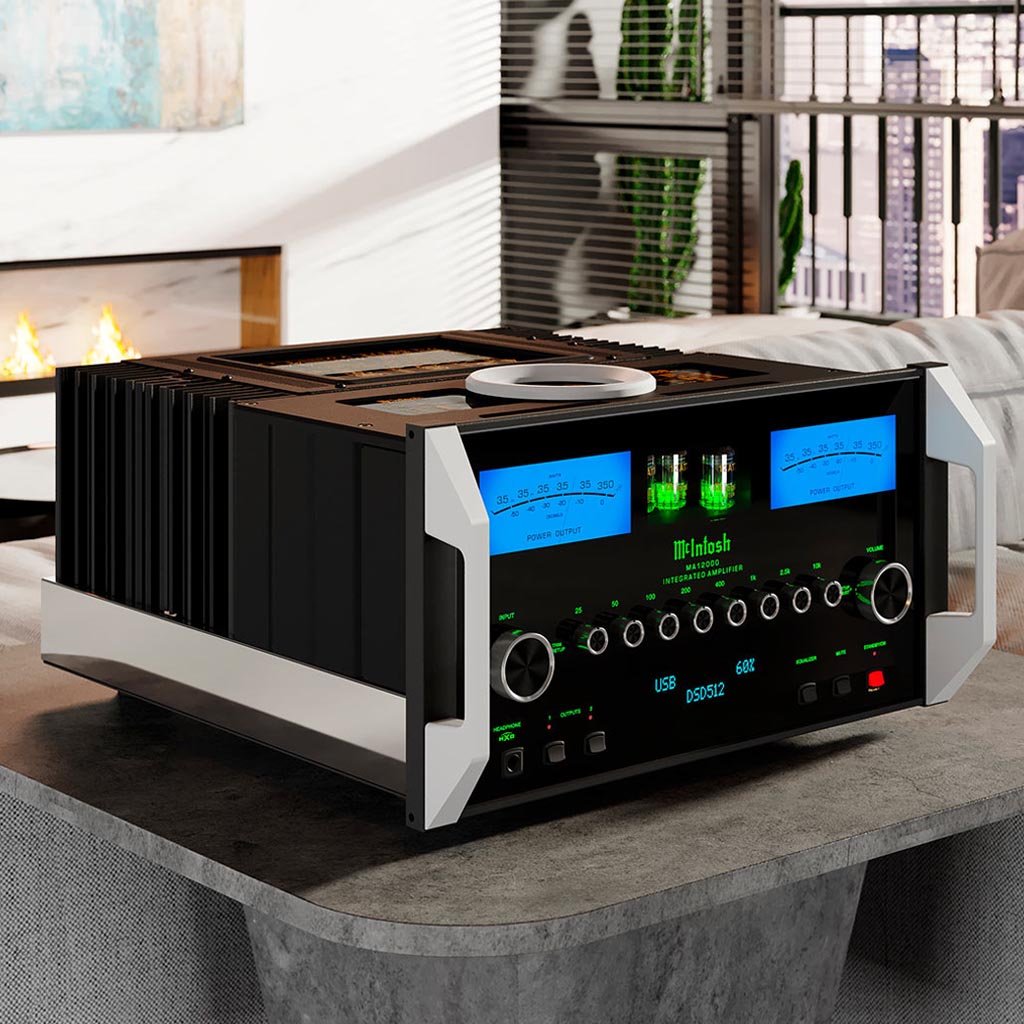

The ultimate all-in-one audio solution. This hybrid integrated amplifier combines the warmth of vacuum tubes with the power of solid-state technology, offering a complete, high-performance system for the most discerning listeners.
The McIntosh MA12000 is McIntosh’s most powerful and fully-featured hybrid integrated amplifier, delivering an immense 350 Watts per channel into any speaker impedance via Autoformers™. Its unique design combines a vacuum tube preamplifier (4 x 12AX7A) for warm, natural sound with a solid-state power amplifier for robust dynamics.
This all-in-one unit boasts an expansive 17 total inputs (10 analog, 7 digital). Analog includes 2 balanced, 6 unbalanced, and adjustable MM/MC phono. Digital features the upgradeable DA2 Digital Audio Module with HDMI ARC, USB (up to DSD512), coaxial, optical, and MCT. Additional features include an 8-band analog tone control, High Drive HXD® headphone amp, and Home Theater PassThru. Encased in iconic McIntosh aesthetics with blue meters and a visible tube section, the MA12000 offers uncompromising performance.
Features
– Our fuse-less short-circuit protection circuit Sentry Monitor™ that disengages the output stage before current exceeds safe operating levels and then resets automatically when operating conditions return to normal
– A pair of peak responding, trademarked “McIntosh Blue” Watt meters that indicate the real time power output of each audio channel
– McIntosh Monogrammed Heatsinks™ which are connected to advanced high current output transistors that minimize thermal equilibrium lag (or warm-up) time and help keep the MA12000 running cool
– Home Theater PassThru that allows for seamless integration into a home theater system
– Our patented Solid Cinch™ speaker binding posts that easily but securely attach the speaker cables to prevent them from coming loose and possibly causing a short; the binding posts are also gold-plated to prevent corrosion and ensure a quality signal is sent over your speaker cables to your speakers
– A discrete, eight-band tone control that allows for advanced manual analog adjustment of your favorite recordings
– High Drive headphone amplifier with Headphone Crossfeed Director (HXD®) which can bring an added dimension to headphone listening
Power Control to send power on/off signals to connected McIntosh components for easy system power up and shutdown
– Doubling of filter capacity compared to our other integrated amplifiers for even better low frequency performance
– The latest audio-grade circuit components to deliver the best sound possible
– Powerful control microprocessors to improve overall system operation
– Easy operation via front panel controls or the included comprehensive remote control
Specifications
Power Output per Channel:350 Watts
Number of Channels:2
Speaker Impedance:2, 4, or 8 Ohms
Rated Power Band:20Hz to 20kHz
Total Harmonic Distortion:
– Preamplifier: 0.03%
– Amplifier: 0.005%
Dynamic Headroom:1.5dB
Frequency Response +0,-0.5dB:20Hz to 20kHz
Frequency Response, +0, -3dB:10Hz to 100kHz
Sensitivity Phono (Moving Coil):0.30mV
Sensitivity Phono (Moving Magnet):3.0mV
Sensitivity High Level (Balanced / Unbalanced):600mV/300mV
Sensitivity (Power Amp input):1.7V
Signal To Noise Ratio (Moving Coil):75dB
Signal To Noise Ratio (Moving Magnet):77dB
Signal To Noise Ratio (High Level):95dB
Signal To Noise Ratio (Power Amp input):114dB
Input Impedance (Balanced / Unbalanced):44K/22K
Damping Factor:>40
Maximum Output (Balanced / Unbalanced):
– 8V Unbalanced
– 16V Balanced

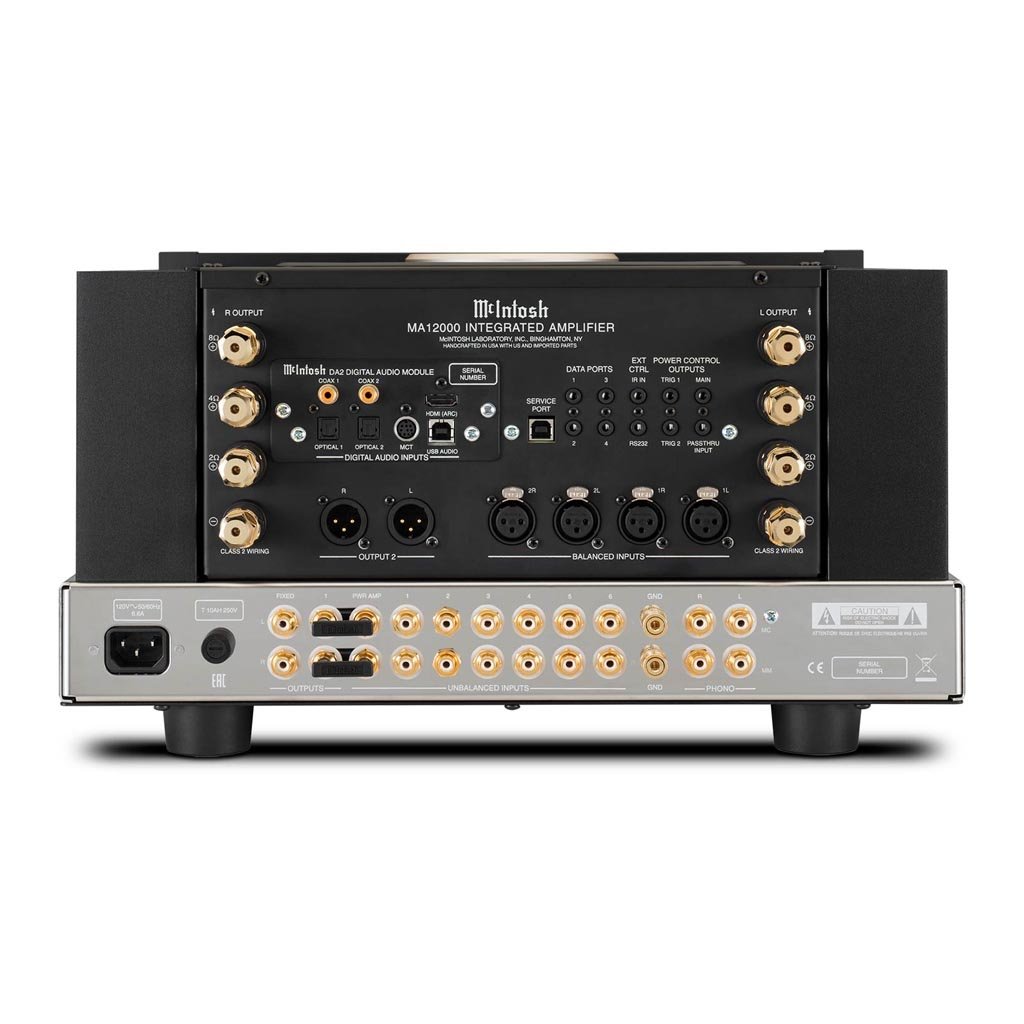

CONNECTIVITY
Balanced Input:2
Unbalanced Input:6
Phono Input Moving Coil:1 (adjustable loading)
Phono Input Moving Magnet:1 (adjustable loading)
Upgradeable Digital Audio Module: Yes: DA2
Digital Coaxial Input:2
Digital Optical Input:2
Digital MCT (DIN) Input:1
Digital USB Input:1
HDMI (ARC) Input:1
Balanced Variable Output:1
Unbalanced Fixed Output:1
Unbalanced Variable Output:1
Headphone Output:1/4″ High Drive with Headphone Crossfeed Director (HXD®)
Subwoofer Output:0
AM/FM Tuner option:No
Home Theater PassThru:Yes
Unbalanced Analog Connector Type:Premium gold-plated solid brass
Speaker Binding Post Type:Patented Solid Cinch™ Speaker Binding Posts
Service Port:1
DIGITAL AUDIO SPECIFICATIONS
Digital-to-Analog Converter (DAC) Type:8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
Digital Coaxial Input Sample Rate:24-bit/44.1kHz to 192kHz
Digital Optical Input Sample Rate:24-bit/44.1kHz to 192kHz
Digital MCT (DIN) Input Sample Rate:
– 16-bit/44.1kHz (CD)
– DSD64 (SACD)
Digital USB Input Sample Rate:
– 32-bit/44.1kHz to 384kHz (PCM)
– DSD64, DSD128, DSD256, DSD512, DXD352.8kHz, DXD384kHz
CONTROL
Tone Controls:8-Band
Tone Bypass and Input Assign:Yes
RS232 Control Input:Yes
Power Control Output:1 Main, 2 Trigger
Rear Panel Data Port:4
Rear Panel IR Sensor Input:Yes
Input Level Match:Yes
GENERAL SPECIFICATIONS
Vacuum Tube or Solid State:
– Preamplifier: Vacuum Tube
– Amplifier: Solid State
Output Type:Autoformer™
Output Meters:Yes
Dual Layer Chassis:Yes
Chassis Finish:Polished stainless steel & black painted steel
McIntosh Monogrammed Heatsinks™:Yes
Power Requirement:120V, 50/60Hz, 6.6A
Standby Power Requirement:<0.25 Watts
WEIGHTS & DIMENSIONS
Unit Dimensions (W x H x D):
– 17-1/2” (44.5cm) x 9-7/16” (24 cm) x 19-3/4” (50.2cm)
Unit Weight:108 lbs (48.9kg)
Shipping Weight:141 lbs (63.9kg)
