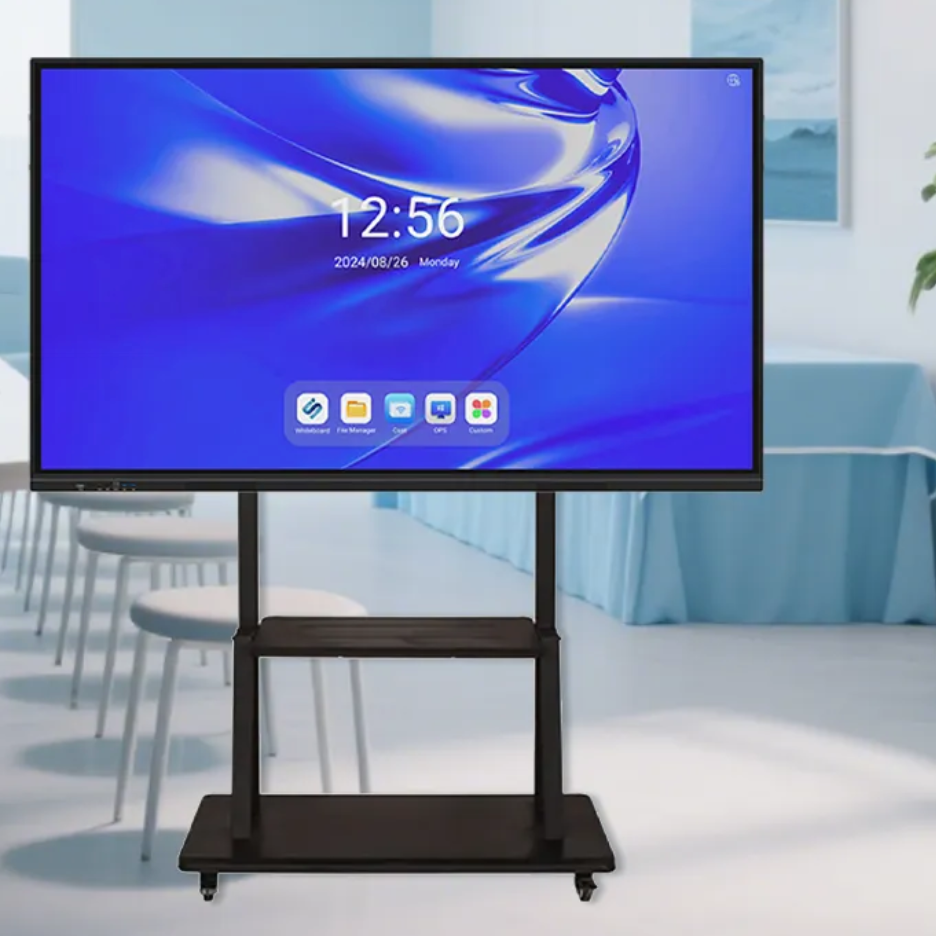

Mobile Stand for Interactive Panel

Product Overview

• Product Type: Video Conference Mobile Stand

• Model Designation: IS-1800

• Material Composition: High-grade steel construction

• Primary Color Finishes: Matte Black / Optional / Customized

Core Mechanical Parameters

Physical Proportions & Weights

• Assembled Product Dimensions ($text{L} times text{W} times text{H}$): $1060 times 470 times 2100text{ mm}$

• Shipping Package Dimensions ($text{L} times text{W} times text{H}$): $1720 times 630 times 85text{ mm}$

• Net Weight: Approx. 21.8 kg

• Gross Weight: Approx. 23 kg

Structural Component Specifications

• Double Column Support: $50 times 50text{ mm}$ square steel tubing, with a thickness of 1.8 mm.

• Interface Hook-Up Brackets: $640 times 41text{ mm}$, with a thickness of 1.5 mm.

• Main Hanging Board: $965 times 220text{ mm}$, with a thickness of 1.8 mm.

• Integrated Middle Tray: $735 times 340text{ mm}$, with a thickness of 1.8 mm.

Dimensional Engineering Diagram Breakdown

As detailed in “微信图片_20241217143849.webp”, the structural dimensions and height-indexing profiles are mapped below:

• Total Structure Height: 2100 mm

• Total Base Width: 1060 mm

• Total Base Depth: 470 mm

• Middle Equipment Tray Width: 735 mm

• Middle Equipment Tray Height clearance: 340 mm

• Ground to Middle Tray Height: 495 mm

• Main VESA Mount Backplate Width: 965 mm

• Vertical Hook Bracket Length: 640 mm

• Upper Camera Mount Extension: 220 mm

Adjustable Distance Index (From TV Center to Ground):

The mounting matrix allows for five staggered height-locking placements:

• 1700 mm / 1570 mm / 1500 mm / 1360 mm / 1210 mm

Environmental Tolerances & Accessories

As detailed in “1800_Specification Version 2.0_00.webp”:

Inclusions

• Screw Pack: 1 piece/set

• Installation Instructions: 1 piece

Environmental Constraints
