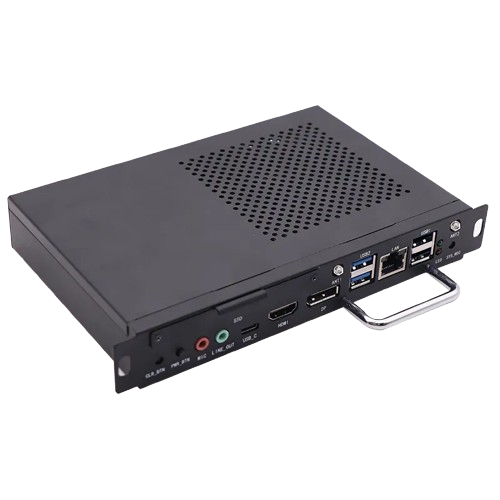

OPS PC INTEL i7
Let’s Customize Your Order Live!
Because our professional AV, cinema, and automation systems often require precise technical configurations and specialized handling, we manage all orders personally via WhatsApp.
How it works:
💬 Confirm Details: A technical expert will instantly verify your product specifications.
🚚 Arrange Delivery: We’ll calculate the safest, fastest shipping options for your location.
💳 Secure Payment: You will receive a private, secure payment link right inside the chat.
👉 Tap Here to Chat & Complete Order
General Product Overview
| Attribute | Detail |
| Product Type | OPS PC Module (Open Pluggable Specification) |
| Hardware Classification | Slot-in Computing Module for Interactive Flat Panels |
| Target Integration | Designed for direct slot integration into large-format interactive touch displays. |
| Primary Capabilities | Delivers independent high-speed computing, high-definition graphics processing, and seamless execution of office, educational, and multimedia software. |
Core Core Performance Indicators
-
Processor: Intel Core i7 High Performance
-
System Storage: 256 GB NVMe SSD (High speed)
-
System Memory: 16 GB DDR4 RAM
-
Hardware Interface: JAE 80-Pin Standard Connector
-
Operating System: Windows 11 Pro Pre-installed
-
Wireless Connectivity: Dual-Band Wi-Fi / Bluetooth
Main Features & Product Highlights
-
Seamless Internal Integration: Plugs directly into the dedicated internal OPS slot of interactive flat panels via the standard JAE 80-pin interface, eliminating dangling cords, external power cables, and visual clutter.
-
Dual Operating System Support: Natively empowers touch displays to toggle fluidly between their built-in system environment and a full-featured Windows setup.
-
Industrial-Grade Reliability: Engineered with an internal cooling framework and intelligent thermal dissipation to withstand demanding commercial or educational operation profiles.
-
Plug-and-Play Maintenance: Supports quick front/side slide extraction for effortless maintenance, hardware upgrades, and modular fleet deployment.
Technical Specifications
System Hardware Configuration
| Component | Specification |
| Product Model / Class | Slot-In PC i7 Series |
| CPU Architecture | Intel Core i7 Processor |
| RAM (Memory) | 16 GB DDR4 High-Speed Channel |
| Storage Capacity | 256 GB Solid State Drive (NVMe SSD) |
| Graphics Card (GPU) | Integrated High-Definition Intel Graphics |
| Supported Software | Windows-compatible applications, collaborative canvas engines, and office suites |
Connectivity & I/O Interfaces
| Port Category | Quantity / Interface Specification |
| Main System Connection | JAE 80-Pin Standard Industrial Slot |
| Video Outputs | 1 × HDMI Output |
| USB Data Ports | 3 × USB 3.0 / USB 2.0 type ports |
| Type-C Interface | 1 × Type-C Data & Display Port |
| Network (LAN) | 1 × RJ45 Gigabit Ethernet port |
| Wireless Module | Internal Dual-Band Wi-Fi (2.4G / 5G) + Bluetooth |
| Audio Interfaces | 1 × Microphone input / 1 × Earphone audio output jack |
| Power Input | DC 12V – 19V (Supplied internally via the JAE slot layout) |
Integration Architecture
Physical Implementation Diagram
The mechanical layout utilizes a slide-in chassis designed to snap flush into the active hardware framework of the panel:
-
OPS Slot Location: Positioned discreetly on the lateral connection bay of the interactive display.
-
Connection Profile: Slide-in insertion locks the male JAE 80-pin adapter smoothly into the screen’s internal receiver board, passing video, audio, touch telemetry, and power simultaneously without extra patch cables.
