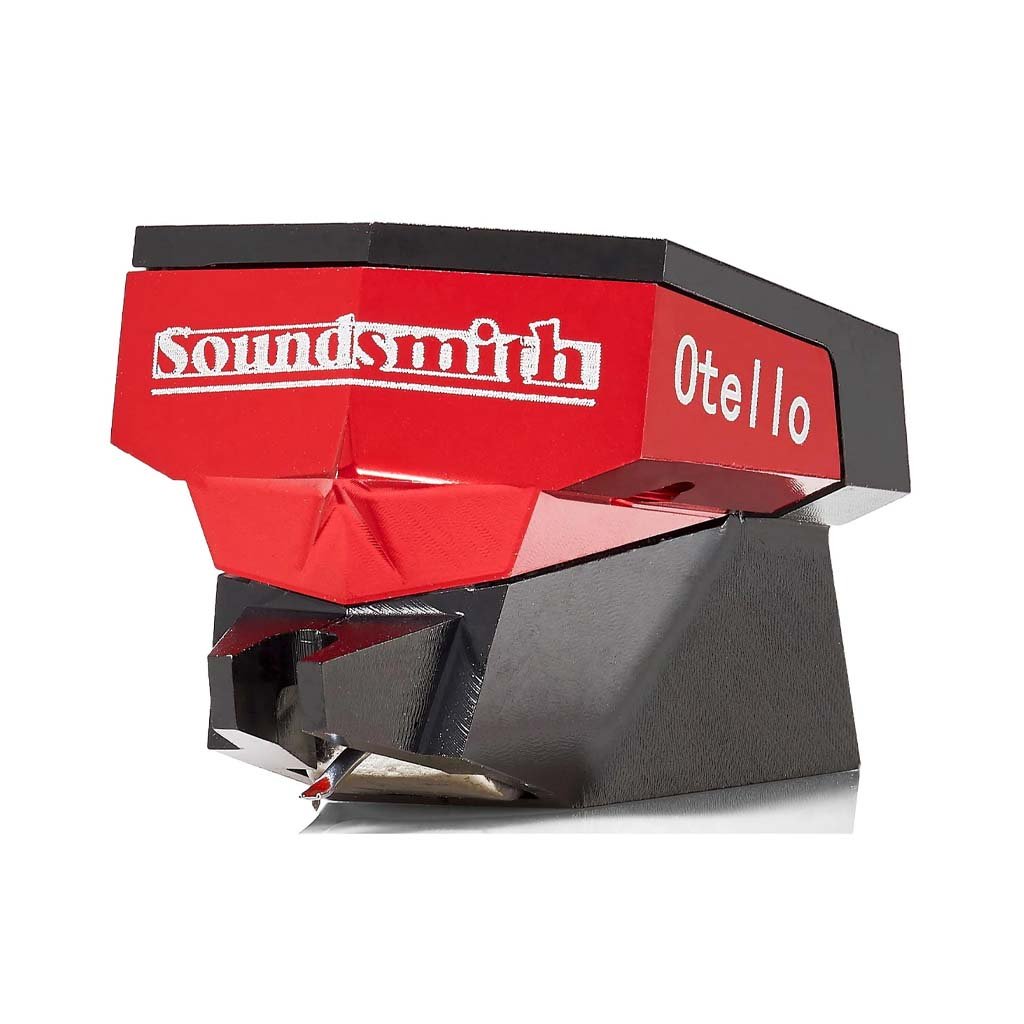

Otello ES Moving Iron Cartridge
د.إ 2,435.00
Let’s Customize Your Order Live!
Because our professional AV, cinema, and automation systems often require precise technical configurations and specialized handling, we manage all orders personally via WhatsApp.
How it works:
💬 Confirm Details: A technical expert will instantly verify your product specifications.
🚚 Arrange Delivery: We’ll calculate the safest, fastest shipping options for your location.
💳 Secure Payment: You will receive a private, secure payment link right inside the chat.
👉 Tap Here to Chat & Complete Order
The Otello is Soundsmith’s entry-level Moving Iron design, offering an affordable pathway into the world of high-performance cartridges. Hand-built like all Soundsmith cartridges, the Otello provides a perfect balance of tone and resolution at a great price. Slightly warmer than other Soundsmith designs, it delivers a richness of timbre that is utterly beguiling, combined with speed and dynamics rarely found in cartridges at this price. The result is a wonderful design that combines the warmth of a moving‑magnet cartridge with the light-footedness of a Moving Iron design, making it at ease with any type of music.
The Otello is Soundsmith’s entry-level fixed coil design, realizing an affordable pathway into the world of high-performance cartridges. Built by hand like all Soundsmith cartridges, the Otello provides a perfect balance of tone and resolution at a great price. The result is a cartridge that is at ease with any type of music. Just slightly warmer than other Soundsmith designs, Otello yields a richness of timbre that is utterly beguiling with a level of speed and dynamic range that no other cartridge in this price. The result? A wonderful design that gives the warmth of MM and the light-footedness of Moving Iron design.
Features
-High Output: Designed for use with standard MM phono preamps without the need for a step-up transformer.
-Warm Tonal Balance: Slightly warmer than other Soundsmith designs, offering a rich and engaging listening experience.
-Versatile Compatibility: Suitable for a wide variety of tonearms and musical genres.
-Rebuildable: Offers a cost-effective rebuild option, maintaining long-term value.
Specifications
Stylus Type: -Elliptical Titanium Bonded, 0.20 mm round
Radius of Curvature: – 6 x 17 µm
Cantilever: -Aluminum Alloy
Recommended Tracking Force: –
-1.3 – 1.6 g (Medium Compliance)
-1.0 – 1.2 g (High Compliance, special order)
Effective Tip Mass: – 0.50 mg
Compliance: – 22 µm/mN (Medium), 28 µm/mN (High)
Frequency Response: – 20 – 20,000 Hz ± 2.5 dB
Channel Separation: – > 24 dB @ 1,000 Hz, > 20 dB @ 50-15,000 Hz
Channel Difference: – < 1.8 dB (Stereo), < 1.0 dB (Mono)
Output Voltage: – > 2.12 mV @ 5 cm/sec
DC Resistance (DCR): – 680 Ω
Coil Inductance per Channel: – 190 mH
Suggested Preamp Gain: – 38 – 44 dB
Cartridge Weight: – 9.20 g (ES series)
Recommended Load Resistance: – ≥ 47 kΩ
