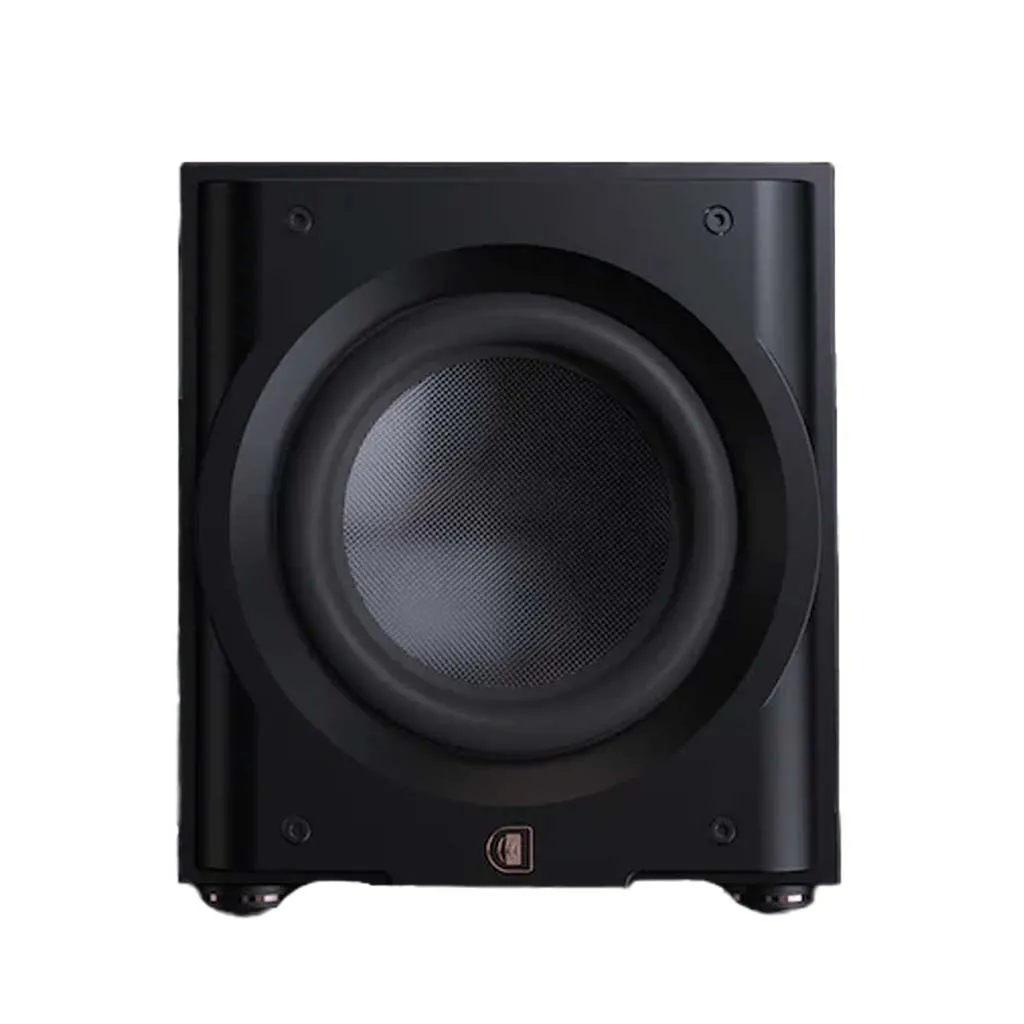

R10s Subwoofer
د.إ 8,180.00
Let’s Customize Your Order Live!
Because our professional AV, cinema, and automation systems often require precise technical configurations and specialized handling, we manage all orders personally via WhatsApp.
How it works:
💬 Confirm Details: A technical expert will instantly verify your product specifications.
🚚 Arrange Delivery: We’ll calculate the safest, fastest shipping options for your location.
💳 Secure Payment: You will receive a private, secure payment link right inside the chat.
👉 Tap Here to Chat & Complete Order
SUBWOOFER IS THE NEW BLACK
Tiny frame, mighty bass
TINY FRAME
MIGHTY BASS
R-Series subs – Trickle down technology from our flagship D-Series, we’ve developed a lineup of single driver-based subwoofers. Ground up drivers developed by our team of engineers. Glass fiber composite diaphragms, multiple aluminum shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminum voice coil wire are the key ingredients – Proprietary nonlinear modeling techniques allow us to simulate all these components and then optimize for real world driver performance – free air and in box. Further refinement is done with the aid of our Klippel laser measurement system to dial things in. Powered by our new 1.0kW amplifier, throttled back to 750W here to match the 10” driver, all functions and safeties are controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds ensuring sonic accuracy. All R-Series subs share our 2.4” LCD touchscreen display and ability to control advanced settings using our App.
Features
Specifications
Amplifer: 750W rms
Display Interface: 2.4″ LCD color touchscreen
App: iOS and Android
Processor: 32-bit ARM Cortex M4, double precision floating point math
DSP Engine: Ti DSP 48-bit data paths
Driver compliment:
250mm, Glass fiber diaphragm
+/-20.0mm linear excursion
Reference sensitivity: 88dB /150mV/ 1.0m
Frequency Response:
THX EQ: 20-301Hz (-6dB) / 16-380Hz (-10dB)
Boost (Large Room) EQ: 16-301Hz (-6dB) / 14-380Hz (-10dB)
Cut (Small Room) EQ: 25-301Hz (-6dB) / 19-380Hz (-10dB)
Inputs:
– (1) Balanced XLR
– (1) Unbalanced RCA
Outputs:
– (1) Balanced XLR unbuffered
– (1) Unbalanced RCA unbuffered
Parametric EQ:10-Band PEQ with 3 user presets
Low Pass filter: Bypass, 30-160Hz, slope 6,12,18,24dB/oct
Phase: Variable 0-270°
Polarity: Normal / inverted
Configurable Auto turn-on and 12v Trigger: XLR, RCA
Dimensions (HxWxD):
– 388 x 340 x 380mm
– 15.3 x 13.4 x 15.0″
Weight: 21.0 kg (46.2 lbs.)
