Ultra-Slim 28mm Wall-Mounted Digital Signage Zero-Gap Flush Fit 4K DCI-P3 95% AI Smart Display

Structural & Form Factor Architecture

The signage display is engineered with a ultra-slim profile optimized for tight architectural integration:

• Chassis Profile Thickness: Measures a mere 28 mm total thickness, compared to standard commercial displays that average around 90 mm.

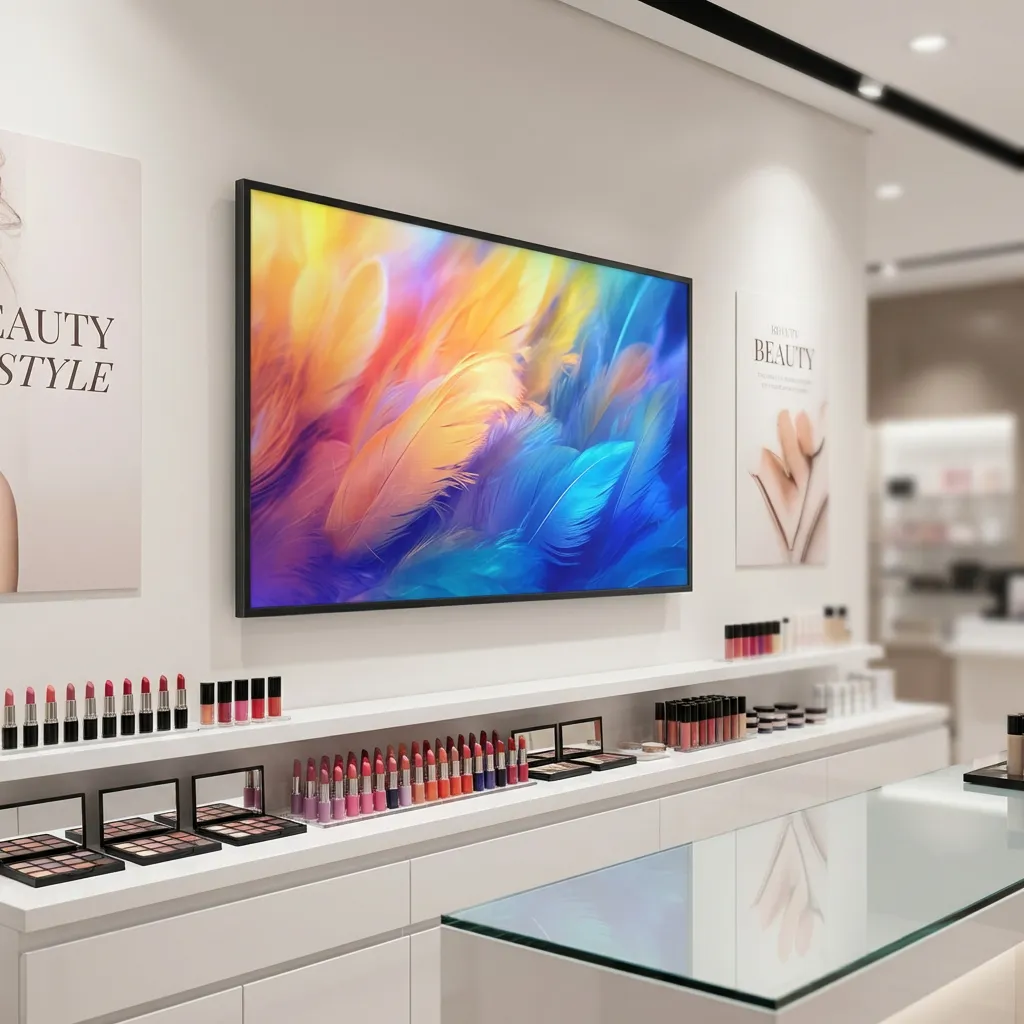

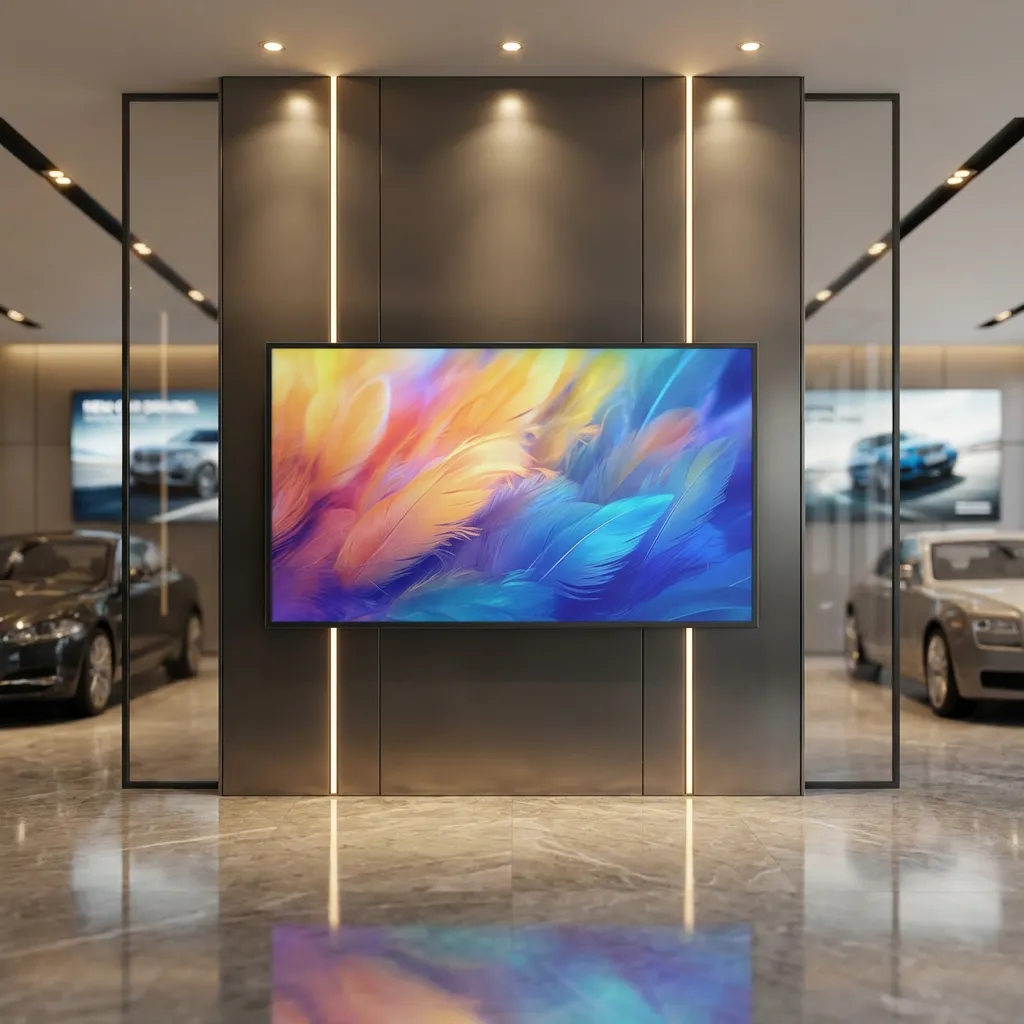

• True Zero-Gap Mounting: Designed to anchor flush against vertical surfaces, eliminating the typical gaps associated with standard wall mounts to create an integrated “wallpaper” appearance.

• Bezel Engineering: Ultra-narrow physical border bezels to maximize the active display area.

• Thermal Management: Equipped with an advanced side ventilation structure that routes internal airflow out through side-firing vents. This targeted side heat dissipation protects internal components and enables stable, continuous 24/7 commercial operation when flush-mounted.

Panel & Visual Performance

The display system utilizes high-fidelity panel tech tailored for demanding color accuracy and commercial visibility:

• Color Gamut Space: Features DCI-P3 95% wide color gamut coverage.

• Color Depth Capability: Renders up to 16.7 million native display colors.

• Resolution Configurations: Supports optional 4K Ultra High-Definition (UHD) screen resolutions.

• Luminance Variations: Configurable factory brightness options ranging through 300 nits, 500 nits, or 700 nits based on ambient deployment requirements.

• Contrast Performance: Features a 4000:1 high static contrast ratio, drastically improving depth definition, black levels, and layering over standard 1000:1 displays.

Interaction & Sensing Technology

• Under-Display IR Sensor: Integrates an infrared interactive sensor array positioned directly behind the glass layer. This structural placement ensures high-responsiveness to touch or gesture interaction without requiring thick external front bezels or visible framing chips, preserving the clean front aesthetics.

System Hardware & Software Management

• Processing Architecture: Driven by an onboard chipset featuring AI intelligent management to handle media processing and scheduling.

• OS Compatibility & Client Support: Features a flexible operating environment supporting installation across common systems including Android and Windows. It provides broad web compatibility (e.g., Google Chrome), document rendering (e.g., Microsoft PowerPoint), and centralized cloud storage deployment.

• Audio Infrastructure: Built-in hidden side-firing stereo speakers that provide immersive surround sound without adding bulk to the display face.

Operational Controls & Display Modes

Automation & Content Deployment

The firmware includes a built-in automated scheduling hub optimized for hands-off management:

• Auto Power ON/OFF: Supports setting hard timeline commands to power up or down the display automatically (e.g., Power on at 07:00, Power off at 23:00).

• Scheduled Timeline Playback: Allows administrators to program dynamic media changes throughout the operating cycle (e.g., Morning Advertising at 09:00 $rightarrow$ Promotional Videos at 14:00 $rightarrow$ Dining/Targeted Promotions at 18:00).

• Auto-Loop Playback: Standard media engine capability for looping videos and presentation decks continuously.

Orientation & Screen Layouts

The hardware supports multi-dimensional orientation handling via its onboard graphics processing matrix:

• Landscape Mode: Native standard wide-aspect layout ($16:9$).

• Portrait Mode: Native vertical commercial layout ($9:16$).

• 360° Free Rotation: Accelerometer/software flexibility allowing deployment at non-standard rotation angles.

• Free Split-Screen Layouts: Supports broad layout configurations, dividing the screen into multi-zone matrices (e.g., dual-zone vertical, multi-tiered tiles, or asymmetric combinations) to display distinct video feeds, static menus, and tickers simultaneously.
