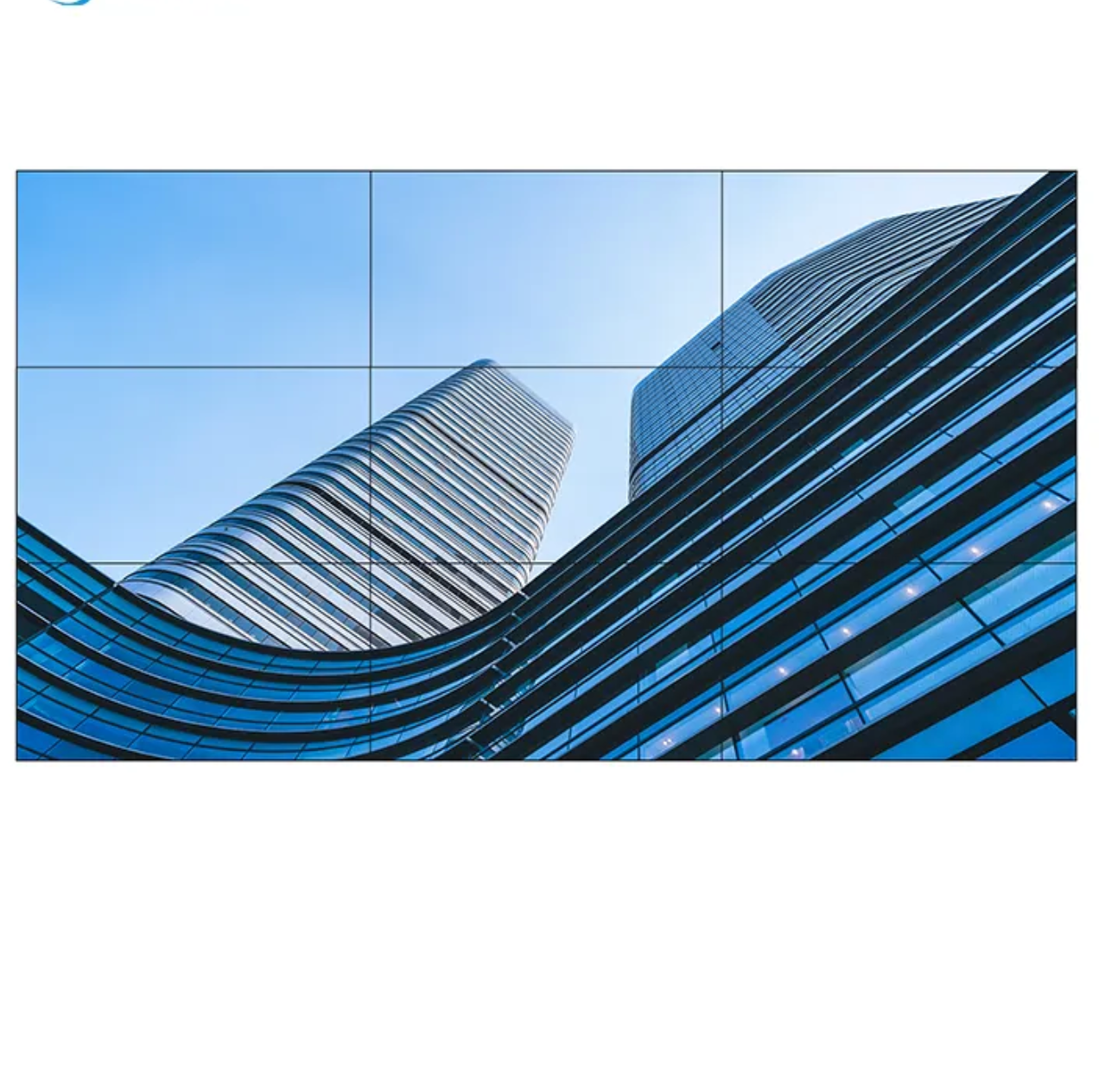

Video Wall 136″ COB
Let’s Customize Your Order Live!
Because our professional AV, cinema, and automation systems often require precise technical configurations and specialized handling, we manage all orders personally via WhatsApp.
How it works:
💬 Confirm Details: A technical expert will instantly verify your product specifications.
🚚 Arrange Delivery: We’ll calculate the safest, fastest shipping options for your location.
💳 Secure Payment: You will receive a private, secure payment link right inside the chat.
👉 Tap Here to Chat & Complete Order
General Product Overview
| Attribute | Detail |
| Product Type | Video Wall Display (All-In-One LED Wall) |
| Size Class | 136″ |
| Display Technology | COB (Chip-on-Board) Packaging Technology |
| Primary Capabilities | Full HD (1920 × 1080) native resolution, ultra-slim design, intelligent automatic brightness adjustment, and multiple system compatibility. |
Core Key Performance Indicators
-
Diagonal Size: 136 inches
-
Aspect Ratio: 16:9
-
Pixel Pitch: 1.56 mm
-
Maximum Brightness: 600 nits
-
Refresh Rate: 3,840 Hz
Main Features & Product Highlights
-
Advanced COB Packaging: High-density, integrated encapsulation that provides superior protection against impact, dust, and moisture while offering wide viewing angles and uniform color consistency.
-
Ultra-Slim & Minimalist Design: Lightweight mechanical engineering with a narrow frame profile to optimize viewing area and seamlessly fit modern spaces.
-
Smart Maintenance Framework: Modular front-access maintenance structure allowing hot-swapping of LED modules, receiving cards, and power supplies for effortless servicing.
-
Intelligent Environment Adaptation: Equipped with an ambient light sensor that adjusts screen brightness dynamically according to surrounding conditions to prevent eye strain and save energy.
Technical Specifications
Display Panel Parameters
| Feature | Specification |
| Aspect Ratio | 16:9 |
| Native Resolution | 1920 × 1080 (Full HD) |
| Pixel Configuration | 3-in-1 SMD / COB LED encapsulation |
| Application Environments | Indoor professional configurations (e.g., corporate meeting rooms, video conferencing spaces, education centers, control rooms) |
Optical & Luminescence Parameters
| Feature | Specification |
| Pixel Pitch | 1.5625 mm |
| Module Resolution | 100 × 150 pixels |
| Brightness | 600 nits |
| Contrast Ratio | 5000:1 |
| Viewing Angles | Horizontal: 170° / Vertical: 170° |
| Color Temperature | 2000K – 9500K (Adjustable) |
| Luminescence Uniformity | ≥ 98% |
| Color Uniformity | Within ± 0.003 Cx, Cy |
Electrical & System Performance
| Feature | Specification |
| Operating System | Embedded Android system architecture |
| Refresh Rate | 3,840 Hz |
| Gray Scale Depth | 14 – 16 bit |
| Processing System | Proprietary internal LED video processing framework |
| Service Lifetime | ≥ 100,000 hours (to 50% initial brightness) |
Input & Output Interfaces
| Port Type | Quantity / Details |
| HDMI Input | 3 ports |
| HDMI Output | 1 port |
| USB 2.0 / USB 3.0 | Available peripheral connections |
| LAN Port (RJ45) | Network input and loop output routing capabilities |
| Audio Outputs | Analog Earphone out and Digital SPDIF out |
| Control Formats | USB, LAN, RS232 protocols |
Compatibility, Software, & Integration
-
Universal Operating Support: Native compatibility across multiple client systems including Windows, Android, Linux, Mac OS X, and Chrome.
-
Wireless Collaboration: Supports high-definition wireless screen mirroring from mobile phones, tablets, and laptops.
-
Multitasking Window Layouts: Features advanced multi-signal split-screen windows allowing real-time parallel execution of multiple data tasks.
-
Interactive Whiteboard Engine: Integrated presentation software built-in with precise pen tools, shape correction, and native collaborative asset annotation.
Physical Deployment Configurations
| Mounting Architecture | Layout Profile Description |
| Wall-Mounted Installation | Flush, structural rear wall-anchored bracket setup for a static architectural look. |
| Mobile Stand Deployment | Heavy-duty structured floor-standing cart with locking wheels for quick transport and spatial versatility across corporate layouts. |
