- It features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body, has a tracking force of 2 to 4 grams, and offers a powerful output level of 5.5 mV. Its 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. And the cartridge design provides maximum visibility of the stylus tip. The AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application.
- It features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body, has a tracking force of 2 to 4 grams, and offers a powerful output level of 5.5 mV. Its 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. And the cartridge design provides maximum visibility of the stylus tip. The AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

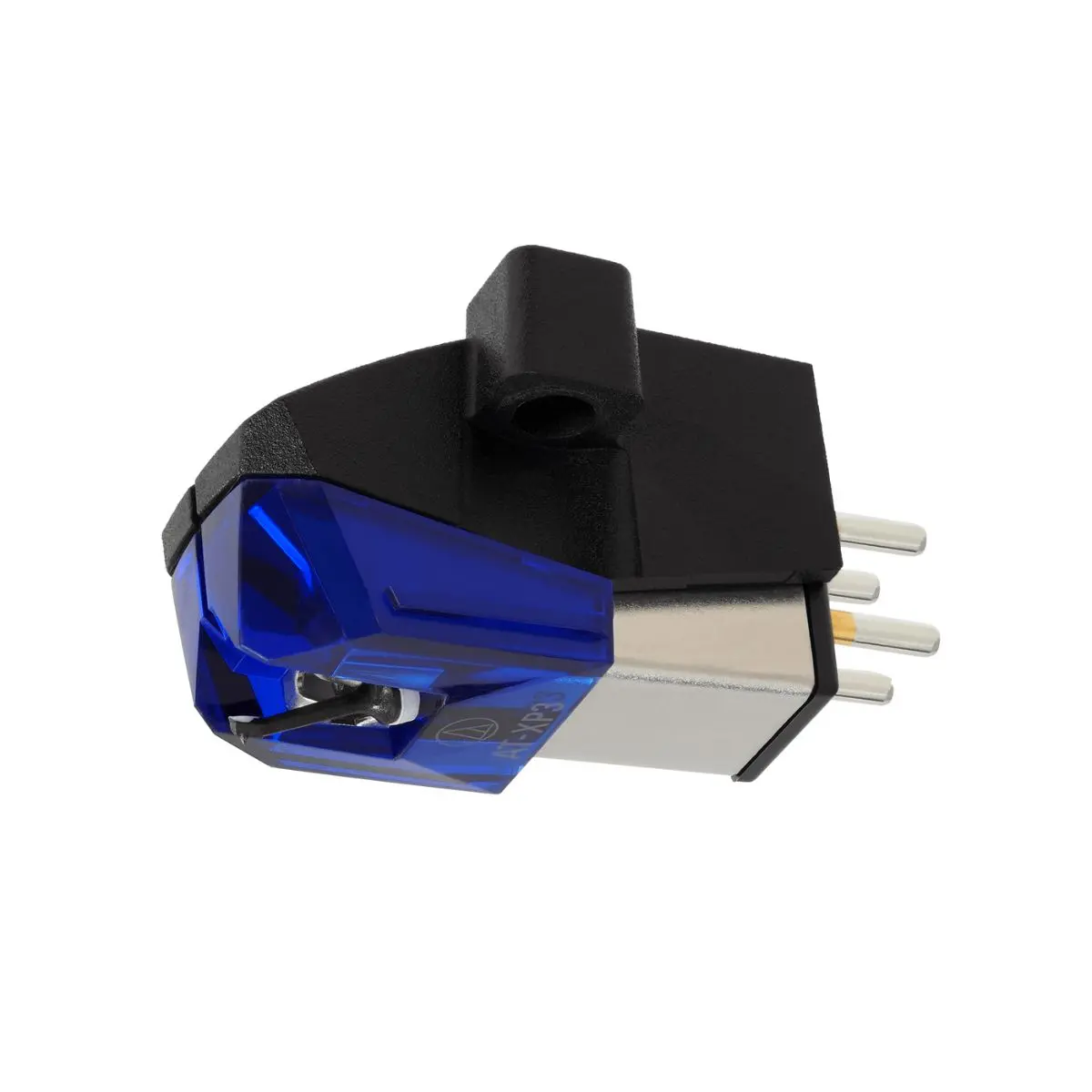

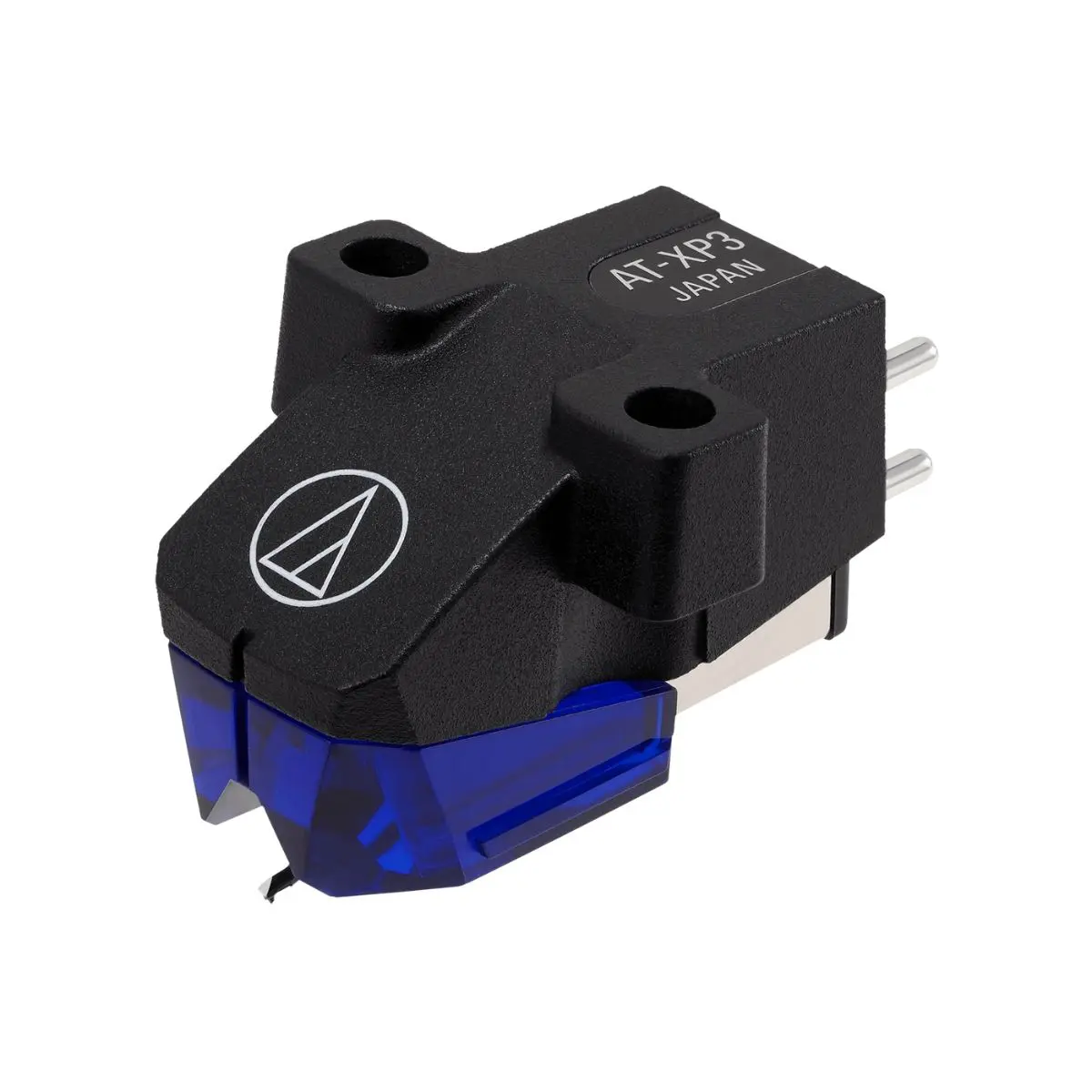

The AT-XP3 cartridge is specially designed for DJs. It features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body, has a tracking force of 2 to 4 grams, and offers a powerful output level of 5.5 mV. Its 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. And the cartridge design provides maximum visibility of the stylus tip. The AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application.
Frequency Response 20 to 18,000 Hz
Channel Separation 20 dB (1 kHz)
Vertical Tracking Angle 20 degrees
Vertical Tracking Force 2.0 to 4.0 g (standard 3g)
Stylus Construction Bonded Round Shank
Recommended Load Impedance 47,000 Ω
Coil Impedance 6,700 ohms (1 kHz)
Coil Inductance 550 mH (1 kHz)
Output Voltage 5.5 mV (at 1 kHz, 5 cm/sec)
Output Channel Balance 2.0 dB (1 kHz)
Stylus Shape Conical
Cantilever Carbon reinforced ABS
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 6.0 x 10 – 6 cm / dyne (100 Hz)
Mounting Half-inch
Cartridge Weight 6.2g
Dimensions 17.2 x 17.8 x 28.3 ( H x W x D mm)

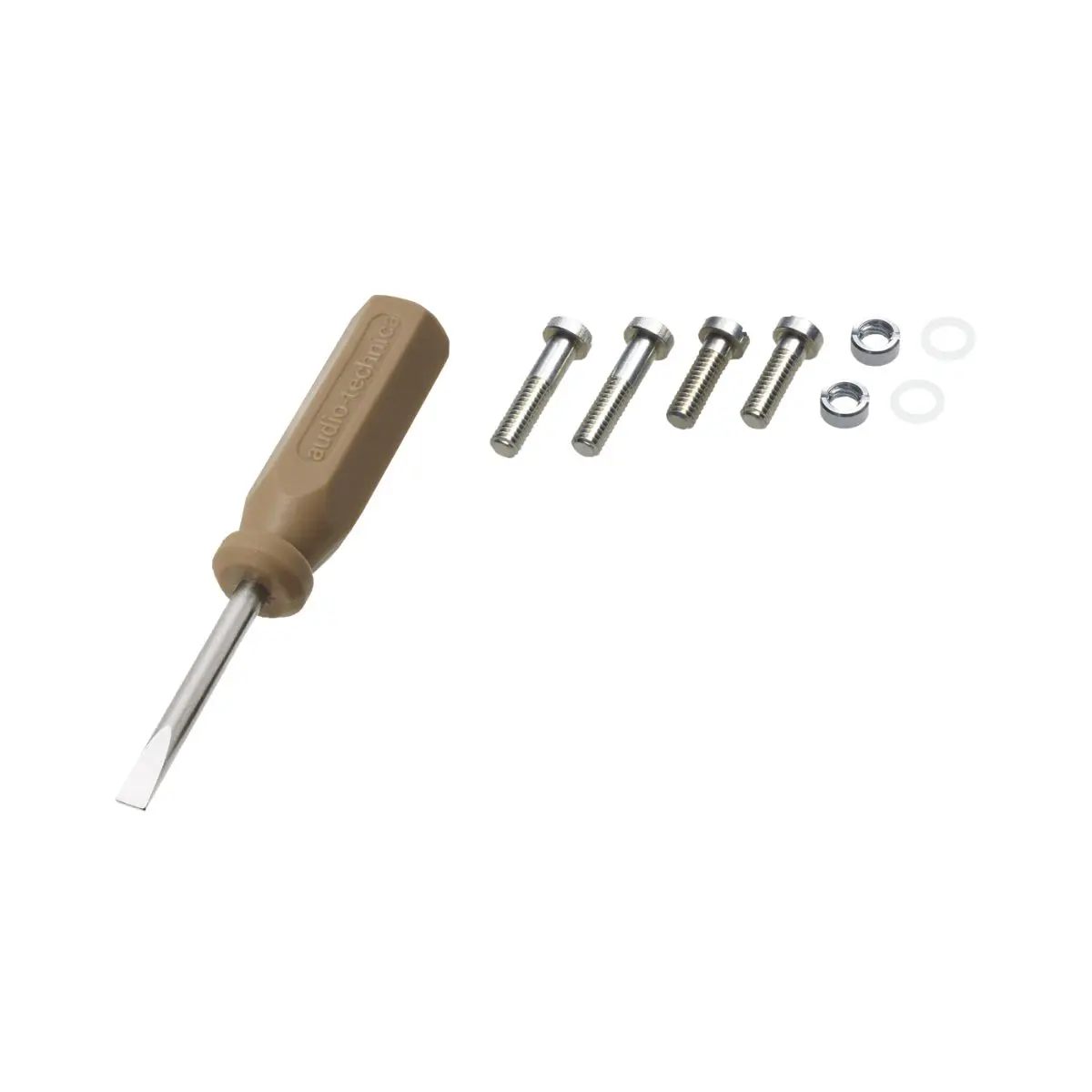

Accessories Included Two 11 mm installation screws;
Two 8 mm installation screws;
Two washers
Two Nut
Non-magnetic screwdriver
Model AT-XP3
Recommended Load Capacitance 100-200 pF
Replacement Stylus ATN-XP3
Stylus Size 0.6 mil
