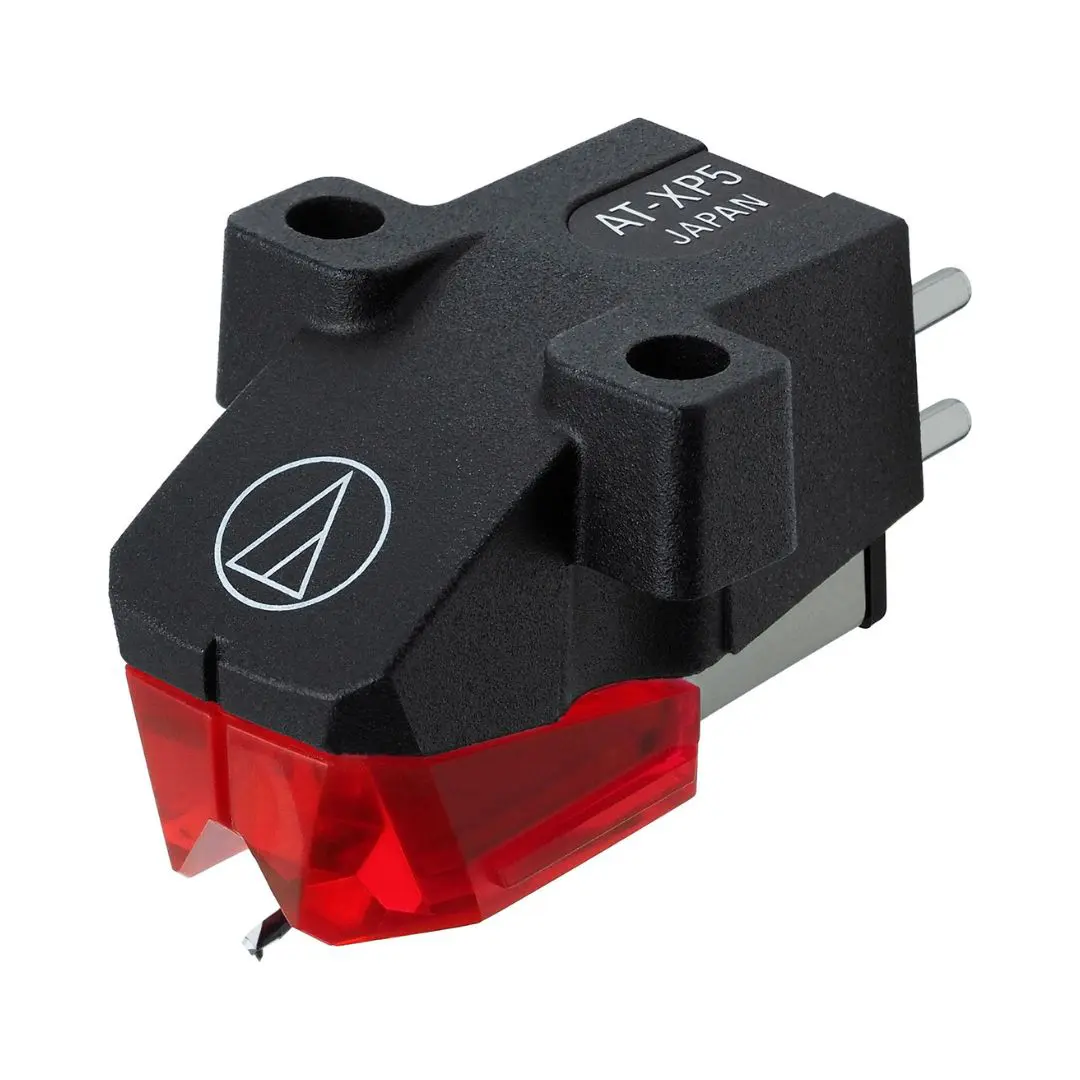

Audio Technica AT-XP5 Dual Moving Magnet Stereo DJ Cartridge - Image 1
Audio Technica AT-XP5 Dual Moving Magnet Stereo DJ Cartridge - Image 2
Audio Technica AT-XP5 Dual Moving Magnet Stereo DJ Cartridge - Image 3

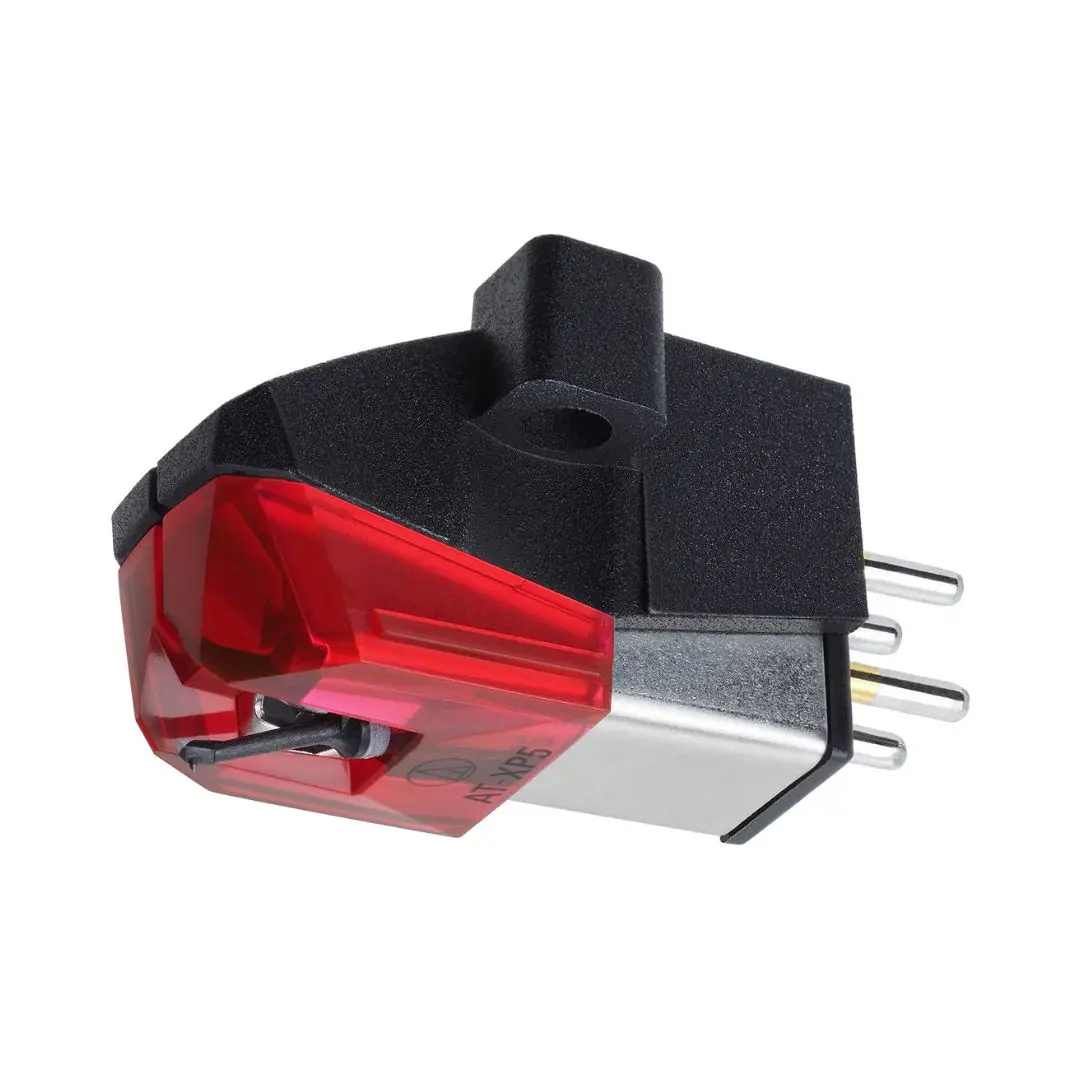

Audio Technica AT-XP5 Dual Moving Magnet Stereo DJ Cartridge
Audio Technica AT-XP5 Dual Moving Magnet Stereo DJ Cartridge - Image 2
Audio Technica AT-XP5 Dual Moving Magnet Stereo DJ Cartridge - Image 3

Audio Technica AT-XP5 Dual Moving Magnet Stereo DJ Cartridge

د.إ 399.00 د.إ 380.00

Let’s Customize Your Order Live!

Because our professional AV, cinema, and automation systems often require precise technical configurations and specialized handling, we manage all orders personally via WhatsApp.

How it works:

  • 💬 Confirm Details: A technical expert will instantly verify your product specifications.

  • 🚚 Arrange Delivery: We’ll calculate the safest, fastest shipping options for your location.

  • 💳 Secure Payment: You will receive a private, secure payment link right inside the chat.

👉 Tap Here to Chat & Complete Order

Out of stock

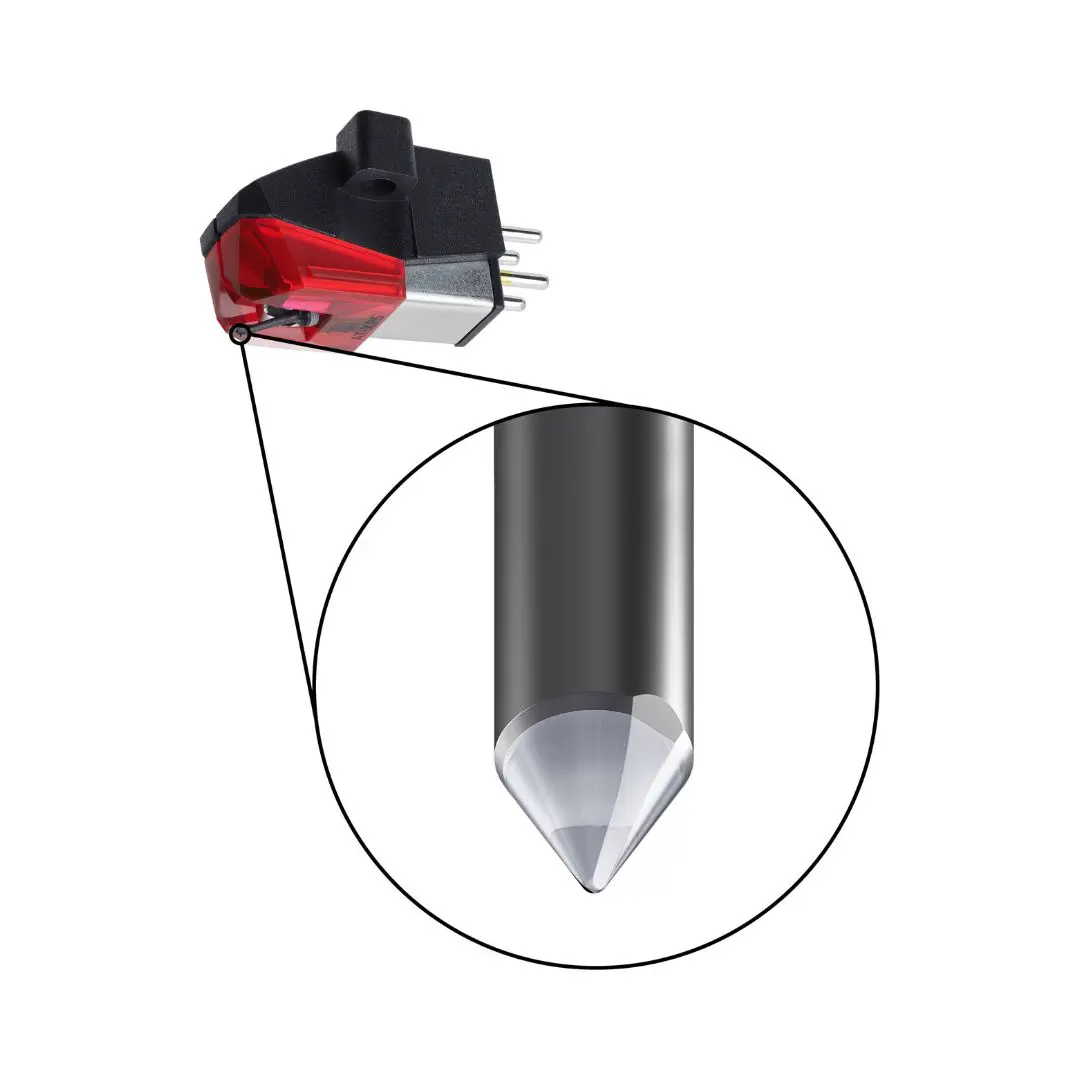

  • The AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.

Compare
Add to wishlist

  • The AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.

  • The AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.

  • Frequency Response: 20 – 18,000 Hz

  • Channel Separation: 20 dB at 1kHz

  • Vertical Tracking Angle: 20°

  • Vertical Tracking Force: 2.0 to 4.0 g (standard 3g)

  • Recommended Load Impedance: 47,000 ohms

  • Coil Inductance: 1.0 H (1 kHz)

  • Output Voltage: 5.5 mV (mV at 1 kHz, 5 cm/sec)

  • Output Channel Balance: 2.0 dB

  • Stylus Shape: Elliptical

  • Cantilever: Carbon Fibre Reinforced ABS

  • Static Compliance: 20 x 10-6 cm/dyne

  • Dynamic Compliance: 6.0×10-6cm/dyne (100Hz)

  • Mounting: Half-inch

  • Dimensions: H17.2×W17.8×D28.3mm

  • Accessories Included: Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2,
    Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1

  • Recommended Load Capacitance: 100-200 pF

  • Replacement Stylus: ATN-XP5

  • Stylus Size: 0.3 x 0.7 mil

  • Type: VM Dual Magnet

  • Weight: 6.2g
